HiKam PC Software download setup guide

HiKam PC Software download setup guide

NEW HiKam for 2nd Gen Cameras (S6, A7 2nd Gen)

Note 1: This HiKam is suitable for HiKam S6L, S6, HiKam Q8 and HiKam A7 2nd generation.

If you need the software for 1st Gen cameras (S5, Q7, A7 1st Gen), please follow this link: (For HiKam S5, Q7 and A7 1st Gen) HiKam PC Software

Note 2: HiKam can’t display the live video of A7 Pro and Q8 3rd Gen yet, the required update will come as soon as possible.
However, we can provide you with a test version, please just send us a message.

HiKamPC

You can choose between a zip and an installation version:

Zip version:   HiKam PC V2.1.18 ZIP

To install: HiKam PC V2.1.18

Installation after download:

Zip version:

Move the downloaded zip file to the directory of your choice. Unzip them.

Here you will find HiKamPC.exe. You can start the software with a double click.

zjjIIBIo3NJLSyYMCYvBeifHKv7Sjnvnjg?1507615334

Installation Pack:

Start the downloaded exe file and follow the instructions of the installation wizard.

When the installation is complete, launch the software. A shortcut called “HiKamPC” will appear on the desktop:

Register:

The HiKam starts with a login window:

Sign in with:

Username: admin

Password: admin

8ZvTN9JHioKVE8OJCizqXpih3zn6dVOOUQ?1548342817

Annotation:

– Please change the login password later in the software.

Configuration Management > User Management:

LdpB1G2qdFQe2dIQ0MmakYWAwcqaMtlDAQ?1548342963

– If you forgot the “admin” password, please delete and reinstall the HiKam software.

– If you have several network interfaces on your PC or a virtual machine is running on the PC, you may have to select which network interface the should run on.

a. Click on this button f9gINLAwvAS 9uziwcI4Rv6fhZ8dUQN Fw?1507615009 in the login window

b. Go to “Select network” and look for the desired sub-network here.

eYrA OECo3tHCUpy5awvikRU5m8yN9GNBg?1548343465

Quick guide to the PC software

Contents:

1. Add cameras in HiKamPC

2. Watch live video from the camera

3. Change settings like camera password, camera name

4. Take snapshots and save to PC

5. Record videos to PC

6. Play videos stored on the SD card in the camera

7. Play videos stored locally on the PC’s hard drive

8. video files from SD card in camera to PC

9. Change admin account password

10. Find out the version of the HiKam PC software

11. Uninstall HiKamPC

1. Add cameras in HiKamPC

1. After logging in, you will see the main window of the HiKam PC software

Click the “+” button at the bottom left

fDYAJLveFhYBZ 42MFU1gd0hyfLPnIZwdw?1507616351

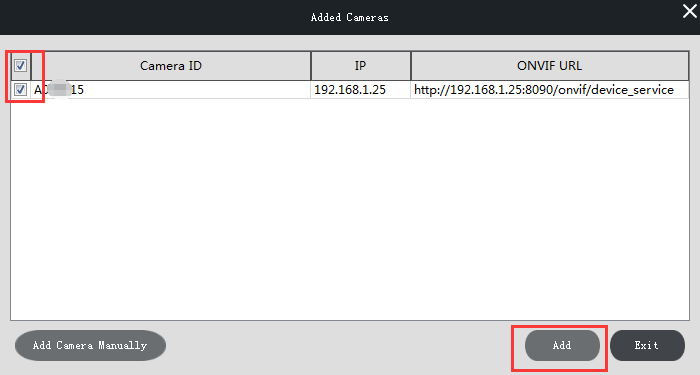

2. You will then see the “Added Cameras” window

All cameras that are in the same network as the PC software are displayed here.

Check the cameras you want to add, then click Add.

You will see a message that the camera(s) has been added successfully, click “Exit”.

D07pkBbx4YYCbaDVLJnbERnK2Rjyn KmBw?1507616983

G0YMjECDpyn4IEyRJHfViC2tSjWDQ6V75g?1507616994



Important:

If no cameras are displayed, please check whether the camera and PC are in the same network and try again as under 1.



Or add the cameras manually as described here below. However, this is only possible with the 2nd generation cameras, not with those of the 1st generation (S5, Q7, A7 1st generation).

3. Now you can see the camera in the camera list on the top left.

Double click the camera, the first time the software will ask for the camera password.

Enter the camera password and confirm. If the password is correct, the HiKam PC software will display the live video. cdShMpQ6XGgJLrntHXPmqz87 UnslVdVVg?1548411209

GO6wbTiWd3cJ0ou5OwvhmC l oL7avDG2A?1507617641

wQTRFEDuc NbXWJJkRr TFZfAXvg HA43g?1548411309

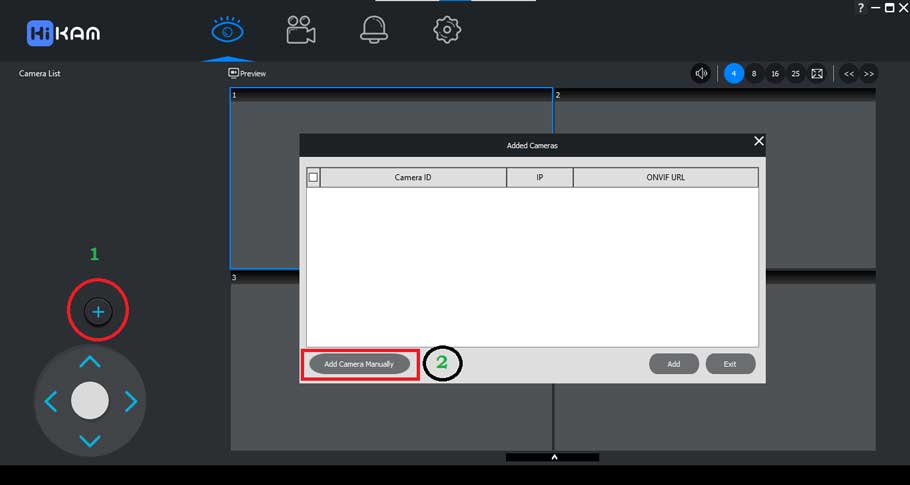

Add camera manually:

1. After login, you will see the main window of HiKam PC software.

Click the “+” button at the bottom left

fDYAJLveFhYBZ 42MFU1gd0hyfLPnIZwdw?1507616351

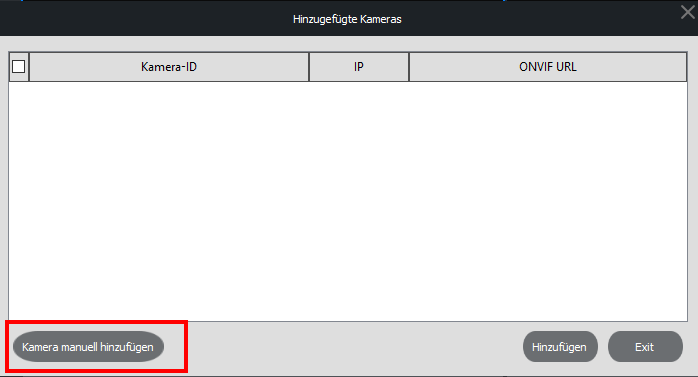

2. You will then see the “Added Cameras” window.

Click on the “Add manually” button

Jarz7zGpuqslRml5p3aq4qsOHI6tK3yLag?1548411558

3. A new window will open, enter the camera ID (e.g. A000015), a camera name and the camera password.

Then click “Add”

4. If the camera password is correct, you will get a confirmation. Click OK.

Now you can close the add window with “Exit”.

lmrQQ9DI7g wvm7L3O2VfX ORGB5VEtqhQ?1548411940

5. The camera is now listed in the camera list.

cdShMpQ6XGgJLrntHXPmqz87 UnslVdVVg?1548411209

2. Watch live video from the camera

When the cameras have been added to the software, you can start the live video by double-clicking on the camera in the camera list at the top left.

yXdntsbFWeb2zmb6ESjHSVHlCW4MajQLZw?1548427341

If the correct camera password has been stored in the software, it will display the live video.

Otherwise you will see the message that the password is incorrect and ask you to enter the correct password.

3. Change settings like camera password, camera name

Right-click the camera in the camera list, select “Settings”.

gzK44RSN63uv7NafOEBqlhIO v3ZmWmIqg?1548427668

Under “Camera Editor” you can change the camera name and camera password to access the camera.

Under “Change Password” you can change the camera password that is saved in the camera.

Please note that you must also enter the changed password in the HiKam app and the software on the other PC, otherwise you will see the error message “Incorrect password” here.

eHlY5JAS GqWUAMWdzm3 lIFuztcfX 8 Q?1548428075

4. Take snapshots and save to PC

When the live video is displayed, right click on the camera window.

Select “Snapshot” here.

ZbvZYB5aZ1f761TUFSiI8q5wRUOKqf9O3A?1548428339

5. Record videos to PC

To start recording:

  • Right-click on the camera window and select “Record”.

If you want to end the recording again:

  • Right-click the camera window again and click “Record” again.
  • When the recording is finished, the red recording dot at the top right disappears.

R2CUhnpHeYqabsFrSWTHi3hSkrQLfqccQQ?1548429038

6. Play videos stored on the SD card in the camera

In the main window, select the video recordings.

XB1I7TK7QCNqVq9PYhANpHise2S1IyIHBw?1548453629

Select the camera in “Camera Name”, then in Source “Cameras”.

Under Time, select a start and end time and click Search.

When the correct password is entered in the software, the video files will be listed.

Double-click on the desired file to play it.

Kqc0LTglZpI TnUG3bWOZ9Q3nFY93Olbpw?1548453733

7. Play videos stored locally on the PC’s hard drive

Click the “Recordings” button.

XB1I7TK7QCNqVq9PYhANpHise2S1IyIHBw?1548453629

In “Camera name” select the desired camera.

Under Source, select PC.

Enter the desired start and end time and click “Search”.

The existing files are displayed.

Double click on the desired video file to play it.

Important note : this only applies to the videos you have recorded via the HiKam PC software, not to files recorded to an SD card in the camera.

8. video files from SD card in camera to PC

Proceed as described under 6. to list the video files that are stored on the SD card in the camera.

Then you will see this window:

qnbYgtiBavhrMfSCo3yoKJnINCa8HUMZtw?1548486158

Click “Download”.

pgavtNXQ4c9KzTFnhd4Rib56ZD0gHc8H8g?1548486214

In the window that opens, you can select the files you want to download – or all of them by checking the top box.

Then click “Start”.

JJFbdn5GL6

The downloaded files can be found in the directory selected in “Save in directory”.

All downloaded files are in .mp4 format and can be played with common players.

NNx7gzvXjWZHoyLkfDzSgiO zXq38fBJ3w?1507621111

8.1. Read and convert files on SD card in PC

If you do not want or cannot the files from the SD card in the camera, there is also the option to insert the SD card into the PC and save the files on the PC.

Since the files are in .avx format and cannot be played with standard players, it makes sense to convert them to .mp4.

To do this, you can use this tool:

https://hikam.de/dl/mp4Tool.zip

Unzip the files and start mp4Tool.exe with a double click.

Under 1, select the directory where the .avx files are currently located.

Under two, choose the directory where you want the converted .mp4 files to go.

Click Transform




9. Change admin account password

Click on “Configuration Management” in the top right > User Management. Enter the old password here and then the new one, which must be confirmed again.

Then click on “Confirm”.

10. Find out the version of the HiKam PC software

Click the “?” in the top right corner of the window.

In the window that then appears, you will see the version of the HiKam PC software.

uA yoUHk1PSBtlqkGUFywiaeNpWC5MSRJQ?1548709648

11. Uninstall HiKamPC

You can easily uninstall the zip version by deleting the entire HiKamPC directory.

Please delete the installed version (.exe) by going to the Start button ( icon) > Control Panel > Software > Change or Remove Programs > Find HiKamPC > Uninstall.

jZWfo 57Z22nkbL4BdERcP C9UHMirPjjQ?1548710226
