Eseecloud 4G Solar Camera Guide

Eseecloud 4G Solar Camera Guide,IP Pro(same as VR CamEseeCloud)– Remote view for 24 hours in Mobile APP.With concise and fashion GUI, support multiple and real- time preview, QR scan, PTZ control, video capture, recording backup. It is developed by Juan.

Installation and configauration

4G SD Card installation and configuration

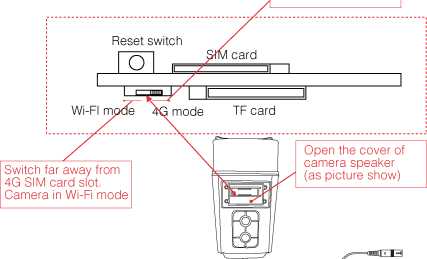

Note: Before configuring the device, please confirm the status of the WIFI/4G dial switch of the device. When the dial switch is placed close to the side of the 4G card slot, it is in the 4G configuration mode; the dial switch is placed to the side away from the 4G card slot. When it is WIFI configuration mode. Switching the status of the dial switch must be performed while the device is powered off.

Eseecloud 4G Solar Camera Guide

Read More :

  1. ClareVision Cameras Setup Guide
  2. Uniview IP Security Camera Guides
  3. How to setup Arlo Home Security System

Add 4G camera

1. After successfully downloading and installing the APR, log in to the App;

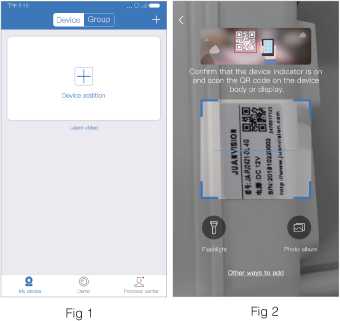

2. Click “+” in the device list (Figure 1) Jump to the scanning .

Fast Installation Manual

Switch near to 4G SIM card slot,camera in 4G mode

(Figure 2);

3. When your device has a 4G card with Internet, and the dial switch is placed close to the side of the 4G card slot, please check the process of 4G mode addition in 1.1; When the dial switch is placed to the side away from the 4G card slot, please check the process of WiFi mode adding in 1.2.

■ 1.1 Add process with 4G mode

Before operating this unit,please read these instructions carefully,and save them for future use.

Status light prompt of 4G camera tail line:

In 4G mode:

  1. .Slow flashing: The 4G module is abnormal or the SIM card is abnormal, and flashes once every 2s.
  2. .Fast flashing: No dialing number (no flow or bad signal), flashing once every 0.5s.
  3. .Always on: The network is normal.

In Wifi mode:

  1. .Slow flashing: In hotspot mode, flashes once every 2s.
  2. .Fast flashing: The device is configured to the router, but the connection is disconnected, flashes once every 0.5s.
  3. .Always on: The network is normal.

n

  1. .Make sure the device has an available 4G card ,and WiFi/4G dial switch is placed to the side of the 4G card slot;
  2. .Connect the device to the power supply and wait for the device indicator to become normally on ;

a There is a QR code on the device :

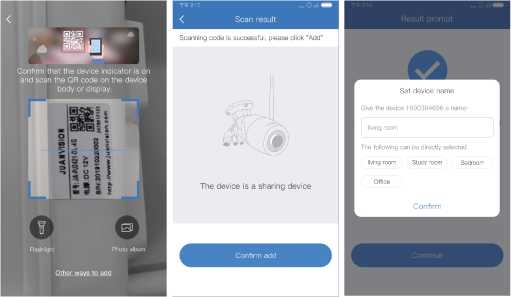

  1. .Scan the QR code of the camera body (Figure 1), and click “Add” on the search device page (Figure 2);
  2. .Set the device name(Figure 3), after confirming, return to the device list to display the device (Figure 6).

word image 1934 3

word image 1934 5

word image 1934 6

word image 1934 7

word image 1934 8

word image 1934 9

word image 1934 10 word image 1934 11 word image 1934 12

word image 1934 13

word image 1934 14 word image 1934 15

word image 1934 16

a Device QR code cannot found:

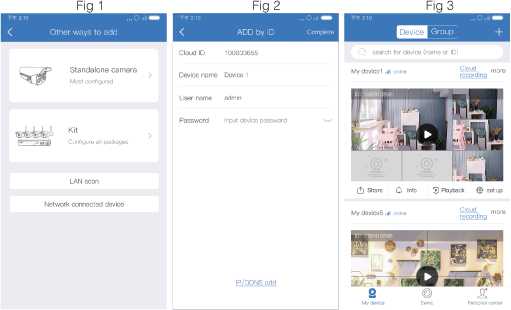

(1).Click “Other ways to add” on the QR code scanning interface(Figure 1);

(2).Select the connected device (Figure 4);

(3).Input the device ID and name in the ID adding interface, click complete in the upper right corner (Figure 5), and return to the device list after adding is successful (Figure 6).

Fig 4

Fig 5

H

Fig 6

CONNECTED

IPCS48618T7834161

TP-LINK_N750

Xiaomi_4BF8_5GGD rc

TP-L!NK_N750_5G

CaoHHAriPort

NETGEAR.5G

Saved

Add Device

Fig 2

Fig 3

Product

Please input WiFi password

Configure the network

The phone is connected device WiFi:IPC 4123

O 0 0 O

Scan code Even hotspot Select add Complete

View.(most peop e choose)

Direct Connection:

View video without network .select Direct Connection.(few people choose)

Tip: 5GHZ wireless network is not supported at this time

Direct Connection

It takes a few minutes for the device to match wifi, Please wait…

78%

Need to wait for a while, do not disconnect
the network!

■ 1.2 Add process with WiFi mode

1.2.1 Adding Process to Non-networked Devices

(1).Make sure the dial switch is placed to the side away from the 4G card slot; (2).Connect the device to the power supply and wait for the device indicator to flash slowly (in hotspot mode, flash once every 2s);

(3).Please go to the phone system settings and select the device hotspot starting with IPC. The password is 11111111 (Figure 1) (Hint: please keep connected with the device hotspot during the connection process).

□ There is QR code:

  1. .After connecting to the hotspot, return to APP, scan the QR code of the device (Figure 2), and click “Add” on the search page (Figure 3);
  2. .View video via WIFI or other network, please select Remote View.View video without network , select Direct Connection.

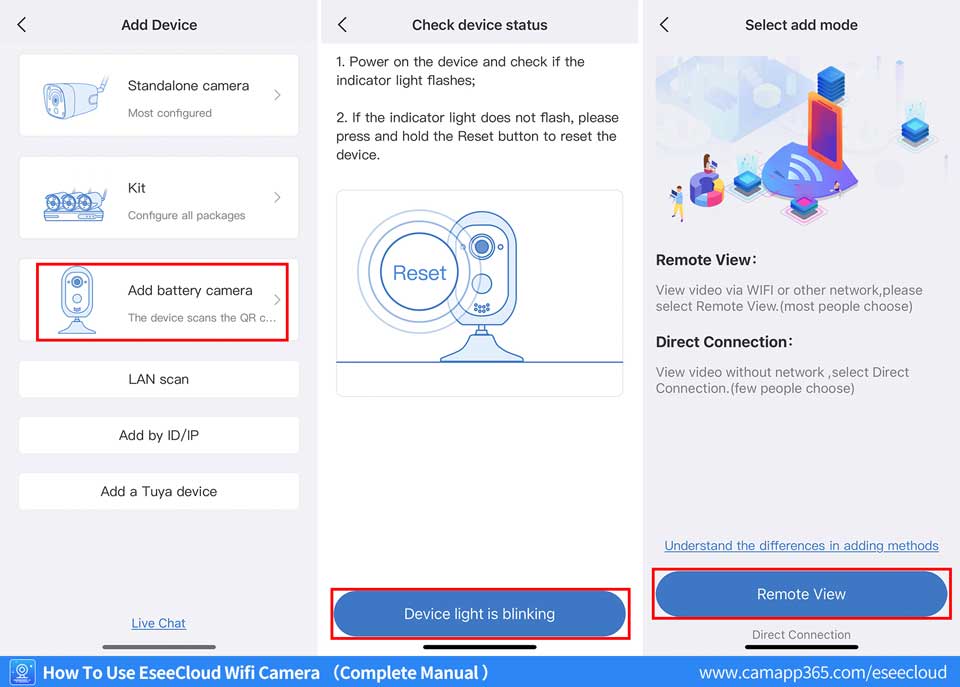

Remote view: Click the “Remote view” button (Figure 4) to go to the configuration network interface. The system will display the WiFi search near the device below the interface. Select or input the routing WiFi name and password at home (Figure 5) and click OK The device is configured with WiFi (Figure 6). After the configuration is successful, follow the interface to complete the device name and password settings (Figures 7 and 8). After the addition is successful, return to the device list.

Direct Connection: Click the “Local direct connection” button (Figure 4), pop-up box for setting the device name, follow the interface content to complete the device name and password settings (Figure 7, 8), and return to the device list after adding successfully.

a Device QR code cannot found:

  1. .After connecting to the hotspot, return to the APP, enter the QR code scanning interface, and click “Other ways to add” (Figure 2);
  2. .Select the wireless standalone camera (Figure 9). For the subsequent network configuration steps, please refer to the second step of adding the QR code on the device.

H

1.2.2 Add process of networked device

□ When there is a QR code on the device:

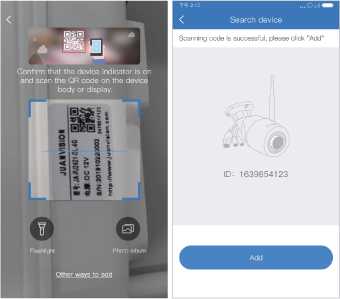

  1. .Scan the QR code on the device (Figure 1),click “Add” on the search page (Figure 2);
  2. .Set device name (Figure 3), Input the correct password (Fig 4) (skip this step if there is no password), and return to the device list after adding successfully.
  3. If unable to find the QR code on the device:
  4. :LAN search device and add process
  5. .Please go to the mobile phone system settings and connect the hotspot of the device to ensure that the mobile phone and the device are under the same WiFi;
  6. .Open the Eseecloud APP and enter the QR code scanning interface, click “Other ways to add” (Figure 1);
  7. .Select LAN scan (Figure 5);
  8. .Select the required device ID in the scanning interface (Figure 6), click Add to enter the ID adding interface, input the device name and password, click Complete in the upper right corner, then return to the device list after adding successfully.

2: Add networked device process

(1).Open the Eseecloud APP and enter the QR code scanning interface, click

“Other ways to add” (Figure 1);

  1. .Select the networked device (Figure 5);

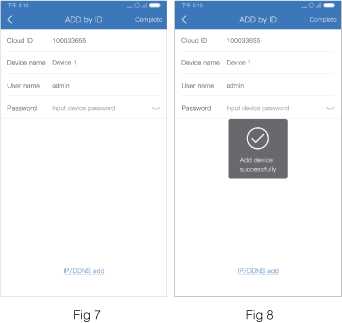

  2. .After enter the device ID and password(Figure 7), click Complete in the upper right corner, then return to the device list after adding successfully(Fig 8).

1.2.3 Wired connection configuration mode

  1. .Confirm that the device is connected to a router with internet access through the network cable;
  2. .The subsequent adding steps are the same as the adding process of networked devices in 1.2.2.

4G spotlight camera management Flow recharge and abnormal conditions

■ 2.1 4G spotlight camera management Flow recharge

4G card management:

  1. .When the flow is sufficient, it will be displayed normally (Figure 1). When the flow reaches the warning value, it will display the current remaining flow (Figure 2);

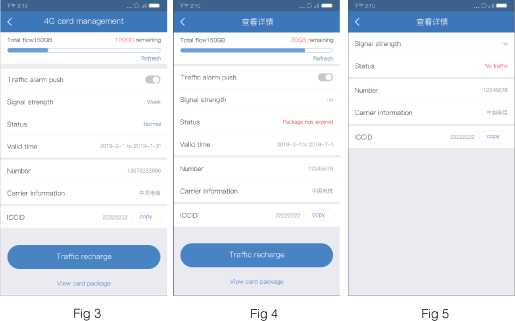

  2. .Click the 4G card management (Figure 3) or the traffic alert value prompt text in the settings to jump to the 4G card management interface (Figure 4), and you can view the traffic usage, signal level and other information of the 4G card in the current interface.

word image 1934 18

word image 1934 19

word image 1934 20

word image 1934 21

word image 1934 22

word image 1934 23

word image 1934 24

word image 1934 25

word image 1934 26

word image 1934 27

word image 1934 28

word image 1934 29



4G card traffic recharge:

(1 ).ln the 4G card management interface, click the “flow recharge” button (Figure 4), enter the flow purchase interface (Figure 5), select the package and payment method, and then click pay now (Figure 6);

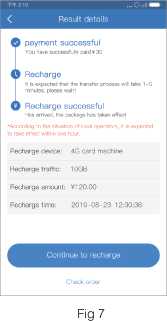

(2).After the payment is completed, it will return to the app and display the result details. After the recharge is successful, it will display the recharge device, flow and other information (Figure 7).

Note: The effective time of recharging is expected to take effect within one hour according to the situation of each operator.

Fig 1

Device: 4G card machine

Please choose to purchase a package

I The hottest 10G traffic package Q

recommended

Period : 6 month ¥ 300.00

Latest 1G Traffic Package Recommended

Period : 3 month ¥ 100.00

Offer 1G data package O

Period : 3 month ¥ 100.00

Preferred 10G traffic for business trips

Period : 1 month ¥ 100.00

® I have read and agreed Sales agreement

Fig 5

fh Share 0 Info 5 ® setup

1961121876

My device5 .ill online

Fig 2

Help

Basic settings

4G card management

Device WIFI

Enable audio recording

Voice prompt

Device with voice prompt after start

Device volum

Restart the camera

El

Total flowl 50GB 120GB remaining

Refresh

Traffic push CD

Signal strength weak

Valid time 2019-2-1 to 2019-7-31

Carrier information

View card package

Fig 4

■ 2.2 4G card device abnormal conditions

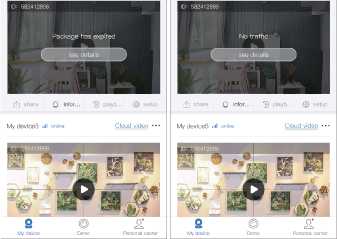

When the 4G card device has no traffic and the package expires, the device list displays the corresponding status (Figure 1 and 2). Click to view the details to enter the 4G card details interface, display the corresponding status

(Figure 3 and 4) according to the offline reason of the device list, and click the flow recharge to enter the 4G card flow recharge process.

Note: when the camera is inserted into the 4G card that is not provided with the device, it will not support the functions such as recharge of the traffic package, traffic query, early warning, etc. (Figure 5).

4G card machine .,il offline

4G card machine ,.H offline

Warning

In case of fire or lightning,pls don't put product in damp andraining place,operate or maintain the device according to the user manual.

APRA
Warning To reduce electric shock, unprofessional people please don't open product front panel or rear panel
Warning

In case of electric shock and fire, pls don't use power supply beyond power list in user manual

Be careful when you see

attachment with a Dangerous Voltage which might cause serious electric accident.

Notice:

  1. Ensure your equity,pls read the user manual carefully before you use the product
  2. Pls contact professional people if you need and maintain the product
  3. Input voltage of this model is DC 12V
  4. Working Environment:temperature of -20°C~+60°C, relative humidity under 85%
  5. Pls don't exceed the user manual's standard range of temperature,humidity and voltage.
