How to set up record and playback ZOSi XVR NVR

How to set up record and playback ZOSi XVR NVR

How to set up and playback ZOSi NVR This article works for the following models of DVRs / POE NVRs / NVRs:

4-Channel DVRs / POE NVRs / NVRs:

ZR04ZN;   ZR04ZM;   ZR04FN;   ZR04FM;   ZR04CN;   ZR04CM;   ZR04JS;   ZR04TS;   ZR04TN

ZR04RN;   ZR04RM;   ZR04EN;   ZR04EM;

ZR04DS;   ZR04MS;

8-Channel DVRs / POE NVRs / NVRs:

ZR08ZN;   ZR08ZM;  ZR08FN;   ZR08FM;   ZR08BN;   ZR08BM;   ZR08CN;   ZR08CM;   ZR08KS;;   ZR08MN;   ZR08MM;   ZR08TN

ZR08RN;   ZR08RM;   ZR08EN;   ZR08EM;

ZR08DS;   ZR08DP;   ZR08MS;

16-Channel DVRs:

ZR16ZK;   ZR16JK;   ZR16BK;   ZR16CK

Load More : How to reset Password for Zosi DVR NVR Poe All Model

(You can find the model number on the label at the bottom of the DVR.)

1. First, please make sure you have installed an internal hard drive inside your DVR.

    The max hard drive size supported by our DVR is 6TB.

   Note: 1. Our DVR can’t support the external hard drive to record, and without a hard drive, it cannot and playback.

              2. Before recording, please go to DVR’s Main Menu – Disk Management to format the hard drive.

                  15.png  25.png

             3. Please tick the hard disk’s ID, then click “Format” to format the hard drive.

                 After formatting, please click “Apply” to save the setting.


2. If your DVR system without a hard drive, and you want to install your own internal

     hard drive, the below video is for your reference:

(1). How to install hard drive?



(2).How to format the hard drive:

3. Manual Record,  Schedule and Motion Detection Record.

A. Manual

If you want the system to 24/7, you need to set up the record manually.

(1). Please go to DVR’s Main Menu – Setup – Record to enable the channels you want to

record. Then click “Apply” to save the setting.

15.png  16.png

17.png  18.png

(2). Please return to the main menu, you will find “Start Record” / “Stop Record” button,

please select “Start Record”, after that, you will find a green icon on the channels you

selected to record, the system will record all the time.

32.png   6661.png

B. Schedule Record

If you want to turn off manual recording, and set the timer for Schedule, you can follow up the below steps to set up:

(1). Please go to DVR’s menu, click “Stop Record“.


(2). Please go to DVR’s Main Menu – Setup – Schedule to set up schedule recording.

21.png  22.png    20.png

Note:  1. please select the channel you want to set up schedule recording.

            2. Set time period:please click 23.png on the upper right corner, then select the

               corresponding time to click the grid, you will find the grid is covered with blue.

               The time that is covered by blue is the time of video recording.

               The 24.png is to erase the area.

           3. If you want another channel to set up the same time period, please select the

               channel, then click “Copy“. After finishing, please click “Apply” to save the

               setting.

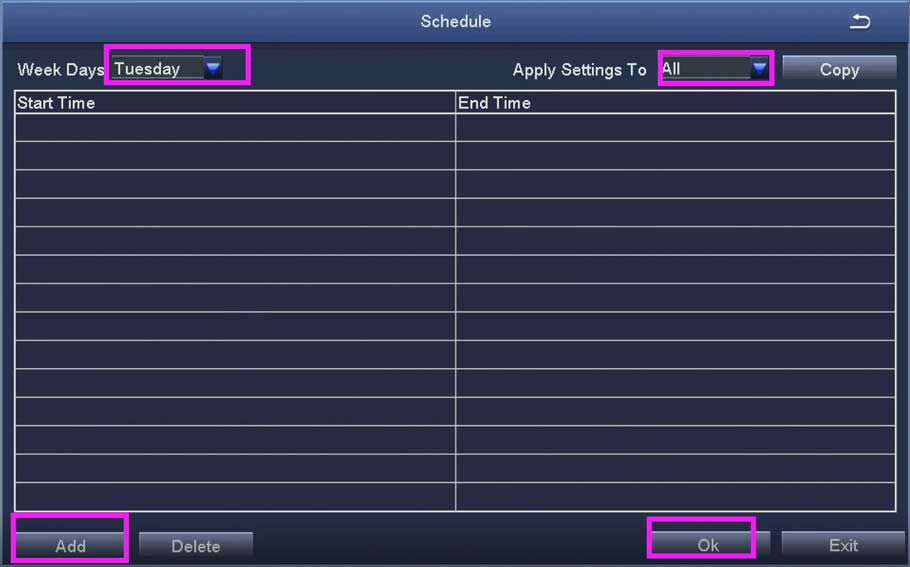

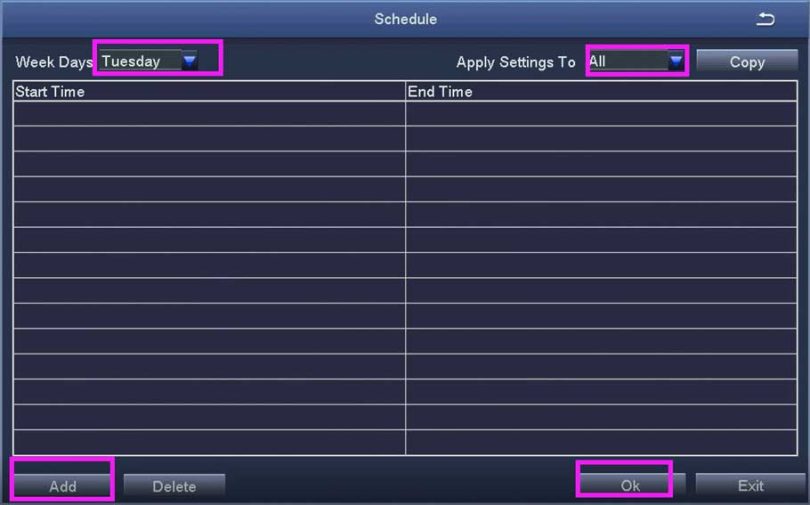

           4. Or you can move the arrow to the grid area, then double click the left button

              on the mouse, you will find the schedule, you can add the time period manually.


After that, you will find a blue icon on the channel when it starts recording.


C. Motion Detection Record

If you want to turn off manual recording, and leave the DVR to record only when it detects

motion, you can follow up the below steps to set up:

(1). Please go to DVR’s menu, click “Stop Record“.


(2). Please go to DVR’s Main Menu – Setup – Alarm – Motion Detection to enable

the channel you want to set up motion detection, and edit the area for the channel.

15.png  16.png

39.png  40.png


(3). Please go to DVR’s Main Menu – Setup – Alarm – Motion – Trigger – To record to check

whether you enabled the record.



(4). Please go to DVR’s Main Menu – Setup – Schedule – Motion to check if all channels were

covered with blue. If yes, you needn’t change it.


(5). You will find a yellow icon and red man on the channel that you set up to motion detection

record.


4. Playback

A. You can click “Playback” to play back the recording files directly, but you can’t select

the specific time to playback.

46.png   47.png

B. You can also go to DVR’s Main Menu – Search – Time Search to select the specific time to

playback the recording.

15.png  49.png


Note: 1. “50.png ” is to select the channel you want to playback.

          2. “52.png” is to select multiple channels to playback at the same

               time. But four channels is the maximum.

          3. “53.png” is to play the recording files.
