XMEYE – How to connect DVR/NVR on PC Mobile Browser

by

How to connect DVR/NVR on computer software CMS?

CMS can help you to manage your DVR/NVR both locally and remotely. How to connect But before adding your DVR/NVR to CMS,
please go to Main Menu–Info–Version to make sure NAT status is connected. If you have problem, please click this link for help:

https://hview.kf5.com/hc/kb/article/1032100/?from=draft



Please download the attachment at the bottom of the page,it is the  installation package of CMS software.

Then you can follow the steps below to add NVR/DVR to your CMS.

1 Download CMS and install it on your computer according to the instruction in the download file.

2 Double click the icon 00158dc9eee610e2e83eb111200f391 to open CMS, the default User Name is super, password keeps blank (no password).

3 For the first time login, you will see the interface as below.

00158dc9f453c9fa1b958a879a82b7d

4. To add DVR/NVR, you can click System menu on the bottom right corner. Then go to Device Manager, click ADD AREA to create a zone.

Name the zone yourself and click OK.

00158dc9f650de12437ee2e3eec726e

5. After adding area, click the area name you created then click on 00158dc9f8b0b1ec9af1ea1937c9aa7 to add your DVR/NVR.

Device Name: name it yourself

Login type: choose Cloud

Here is method to find SN:

https://hview.kf5.com/hc/kb/article/1032362/?from=draft

User Name/Password: default is admin and no password, same as your DVR

Click “ OK” after you have done above parameters, you could double click to open this device.

00158dc9ff26391f0970e5dfd397b77

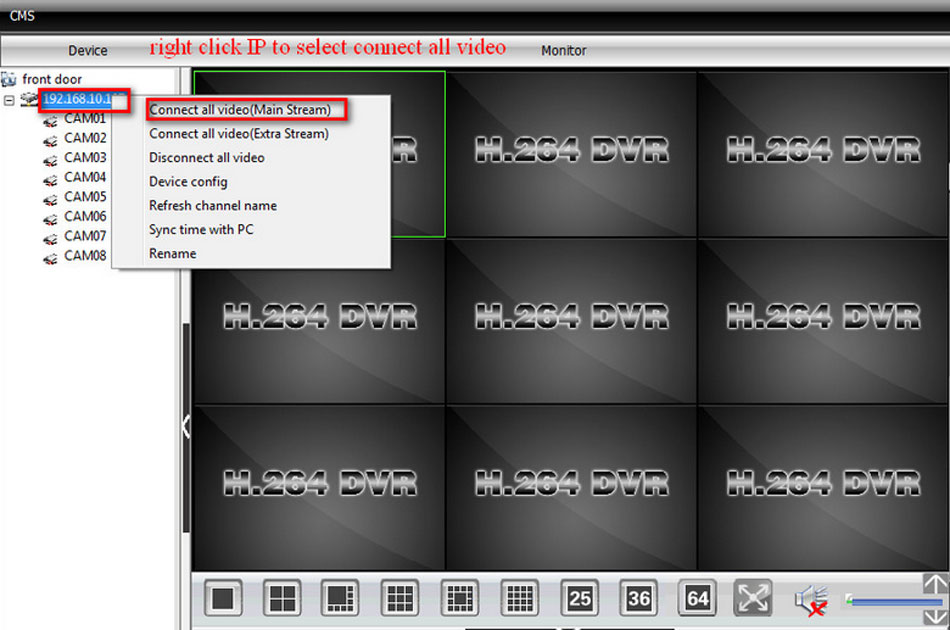

6 After you add you DVR successfully, you can view and manage your DVR on CMS

00158dca03745ec4938212b3539ada7

00158dca071246b3ac4399d106be717

7 Here is the introduction about the CMS interface.

00158dca0ab1fe0a34c0d4001ec8541

Note: If you have problem to add DVR/NVR to CMS, please double check the connection between your

DVR/NVR and the Internet and upgrade your CMS to the latest version.

Attachment：XMeye CMS.rar • 33.48MB • Download

How to connect DVR/NVR on computer browser?

The method is for both local view and remote view because they are totally the same.

1. Connect your DVR to your router using an Ethernet cable
2. Check if system has connected to router and Internet successfully.

https://hview.kf5.com/hc/kb/article/1032100/?from=draft

3. Find your system’s serial number (SN).

4. Open website : http://www.xmeye.net
(You  had better use IE, not chrome, not firefox, not EDGE for win 10.)

It will ask you to install a plug-in IE Active

If you find you can not install active plug-in, here is solution.

https://hview.kf5.com/hc/kb/article/1032459/?from=draft

00158dc67d0168470072c9bb7452644

5. If you log in by user, below are steps.
If you can’t register it successfully, please use phone app to register. Link below is method to register on app.

https://hview.kf5.com/hc/kb/article/1032179/?from=draft

00158dc6871630b91131372395ebb45

00158dc690a7d6b68cae309fb4318eb

00158dc69337a92c5ae7a73179d5096

00158dc695d0e708f4a9a019819b9ca

6.If you log in by user, below are steps.

00158dc69a3396b0c5e56aa9d4293c7

00158dc69b8a30ff51523f4e80db428

How to connect DVR/NVR on phone app xmeye?

Please search Xmeye in google play or apple store and install it into your phone.

Here are steps to use app Xmeye to connect recorder. The method is for both local view and remote view because they are totally same.

android APP (xmeye): https://play.google.com/store/apps/details?id=com.mobile.myeye

iPhone&iPad APP Xmeye: https://itunes.apple.com/cn/app/xmeye/id884006786?mt=8

1. First you should register a account.

00158feab485946ac95956ed38a8dbd

00158feab7b83703819ccb0ee251290

Notice: you need find the code in your mailbox, maybe it is in the spam mailbox

00158feabf48c927cea01d213bd5fdd

00158feacea1485067659b43342d4e9

2. Click plus button at the top right to add camera. The name can be anything. You can find S/N(ID) on monitor.

The default password is none. Please notice the S/N on label of recorder is not the ID used to connect and view.

00158db17755ce3263a7c9415e5ff01

3. Please choose “Manual Add”, by this way you can view the video remotely.

Device name can be anything.

Here is method to find Serial Number：

https://hview.kf5.com/hc/kb/article/1032362/

001598c18708cd51a3c300217aff955

00158db182a105502c08c1b38112633 00158db1845c048d7c1e996f5323a65
