How to configure Apartment VTH through Config Tool

How to add DHI-VTO4202F-P-S2 to VTH via

Description

This article will go over the setup DHI-VTO4202F-P-S2 with Indoor Monitor by using software.

Please be sure to have followed our How to Initialize Video Intercom using Guide —> Here

Pre-requisites

Video Instructions

Instructions

1. Once devices are initialized go to Building Config

How to Setup 2Wire IP Modular Station to VTH using ConfigTool-1.png

2. Go to Global Parameter

How to Setup 2Wire IP Modular Station to VTH using ConfigTool-2.png

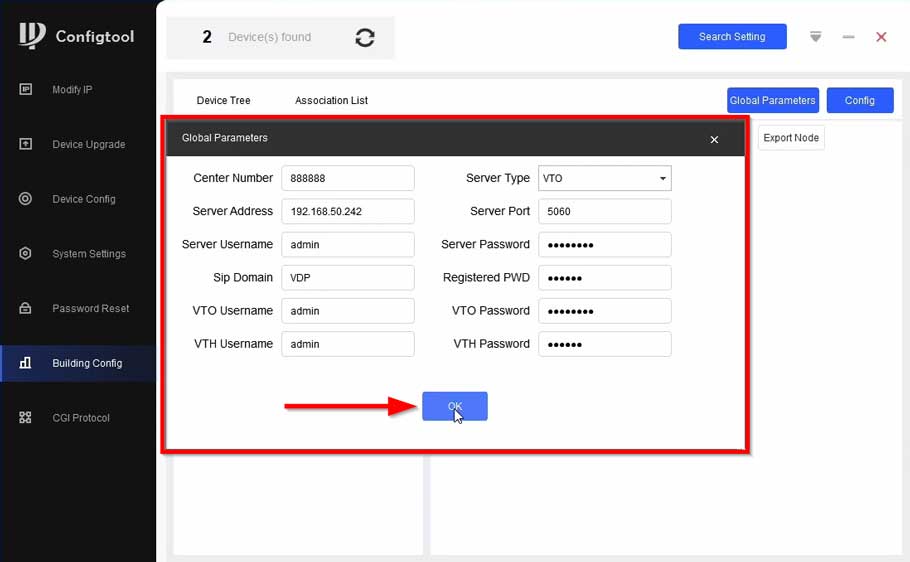

3. Global Parameters

Global Parameter
Center Number = Leave Default Server Type = VTO
Sever Address = Main VTO Server Port = 5060
Sever Username = Recommended to match VTO username Sever Password = Recommended to match VTO
Sip Domain = VDP Register PWD = Leave Default
VTO Username = Enter VTO username VTO Password = Enter VTO
VTH Username = Enter VTH username VTH Password = Enter VTH Password

Enter the information by following the table above. Click on OK to proceed

How to Setup 2Wire IP Modular Station to VTH using ConfigTool-3.png

4. Create a project by clicking on Add Node

How to Setup 2Wire IP Modular Station to VTH using ConfigTool-4.png

5. Select the amount of Floors and Rooms will be added to the project. In this we will only have 1 floor with 1 room with 0 extensions for each room. Click on OK

How to Setup 2Wire IP Modular Station to VTH using ConfigTool-5.png

6. Check serial number of the Main VTO and the Project entry and click on Association. This will link the Main VTO with the project entry

How to Setup 2Wire IP Modular Station to VTH using ConfigTool-6.png

7. Do the same with the VTH

How to Setup 2Wire IP Modular Station to VTH using ConfigTool-7.png

8. Once all the devices are associated click on Association List

How to Setup 2Wire IP Modular Station to VTH using ConfigTool-8.png

9. Check all the devices and click on Config

How to Setup 2Wire IP Modular Station to VTH using ConfigTool-9.png

10. will do the rest to configure the devices. Once they reboot the configuration is done

How to Setup 2Wire IP Modular Station to VTH using ConfigTool-10.png
