EnsSecurity Recorder Setting Up a DDNS

ENS Recorder || Setting Up a DDNS || Web GUI

Answer

Recorder Setting To access the web client, please use a Windows based PC and use Internet Explorer as the web browser.

Access the recorder’s web interface by typing in the IP address on the address bar of Internet Explorer. The path should look like the following: “http://xxx.xxx.xxx.xxx” (Note: If the HTTP port has been changed from default, you will need to add the port number after the ip address by inserting a colon “:” in between the address and port number).

7s6G6FAomx5lPVb1jUYutUtCfNCO3HszeturWPTykgm9FBjftuZ fVTxhHn8YP3Wwmk4VPzKq E8tIsqqZOgP7NatUR5qHGktPDSTbHqF2VyqOSN9hPBfV2cFtaU RWHuYzgVkzn

Load More : What to Do If The Cloud P2P of The DVR/NVR System is Offline?

Install all requested web plugins that are prompted by Internet Explorer. Once installed, you may need to refresh, or restart the web browser. You may install the plugin by selecting “Run”. In some instances, you may need to close the web browser to complete the installation. After installation completes, please re-open Internet Explorer.

pqV8CF0D5oCiSqJLQx9eMrl7VcoqIyJ8ly7DXxpQpuZSezsH1uL FF3xeEf GIgxOb9TTtyFj

Depending on the firmware of the recorder, there may be an updated plugin available. If so, you will see the following prompt. Follow the previous instructions to update the plugin.

8xBRm5bR cytnzTVwKCd3qHEilw6SkZH

Then you will enter the login page. Please log in with appropriate username and password. The device will be locked after 5 failed login attempts.

WSRHX6nEPgtas2UI449NpA5qF14 578BU x4ddVpsksoPS3VG f6S8CMxc3NwUh4 hiKR4rQ5aas2Yfy2C2rXj0K1 M0AL7LAajZtTR Cal6LamOfGVB9g9bSo6KzYf A5AwXqPB

After logging in the recorder Web interface, click on “Configuration” on top.

uEAlHlJKTOMG0YT4Wt1nZZuZoDSyY7mPnoEcCYCgEz16aEGRCc2hkO qIXqSbs7CnjVzfDtR4tmowROVFPA2RkxJH1 PgDugnC6N0Y9K138K27 Nm4Camg2wJfcvX4 wC3MI40aq

When in the configuration page, you may find the “DDNS” tab in the Basic Settings of Network section.

4Q0ldFKevEXVw92MaPcxf279Fjf5FU LZAWK2DhbnrMED2CAjgdwjNGvpM edEDVDHh0d0UGACXRRd8cRaRD8l6HXUPYzy1MeOEkKSbC5emfFyFKdGqQDsDc9zuIIh4C5JJ34XQi

When in the DDNS setup page, check on the “Enable” box and you will need to fill in all information as needed, including the server address, domain name, username and password. Make sure to hit “Save” before leaving the page.

Refresh the web page or reboot the recorder and make sure the “Status” shows “DDNS is normal”.

OwxfywA4YKW4p0HZ9uH3UU4GwllMVLyanryQI0mjirxx0PAA9xSVMsAiOVMV9k68wL1RaCR0JX1qsjObq8yO7WAlYJbSfxaizCmcyik vUl ZQg8m

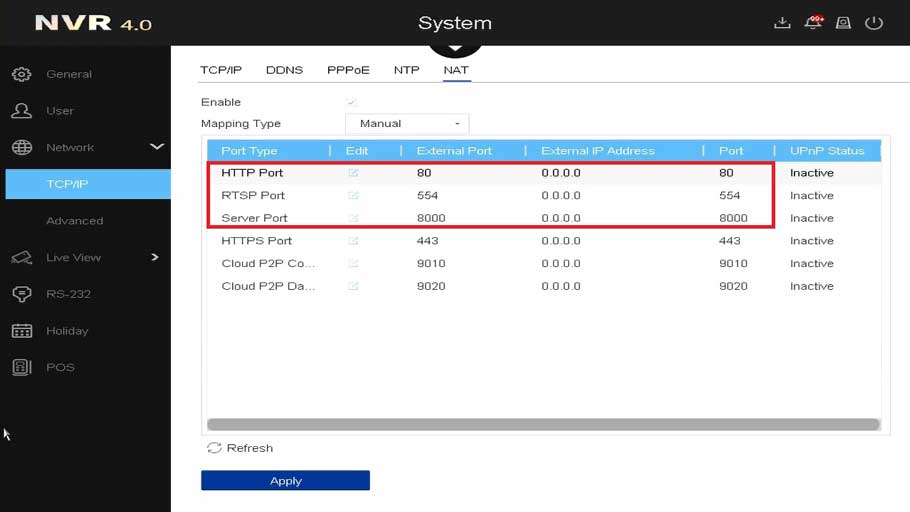

Next step, you will need to perform the port forwarding in your router (gateway), including the HTTP (80 by default), RTSP (554 by default), and Server ports (8000 by default). You will need to direct those ports to the IP address of the recorder in the router in order to get the data pass through to the remote devices, such as mobile phones and PCs/laptops that are not in the same locations. Please consult with your system administrators or installers if your device is using different ports other than the default ones. Please Note, “Port Forwarding” is a general term in the advanced settings of the router. Different router manufacturers may have different names for this function.Please refer to your router manufacturers for more information.

9CxrDQ78peYUZHeVp1Y4YQFcoiK6 tAGxtd2xHxOSxzl6vnqwBPjVfDeS6wIl0DvEGsbV83DSoZ6qsvqb1V7SHK0chsHUMLqhQfpJCqGy3dgxaX83r7GHYkosE j 4yhSQ4MG8A

Once the port forwarding sets up correctly on your router, you should be able to access the device remotely by typing “http://domain name:http port#” at the address bar of the browser on your PC/laptop. If the HTTP port number is 80, you don’t need to type port# after the domain name. As for the remote access through the mobile phone APP, please make sure to use the correct Server Port when adding the device to the cellphone. In this case, the default server port of the recorder should be 8000.

ENS Recorder || Setting UP a DDNS || Local GUI

Answer

***Note: The following setup steps will only work on the ENS series recorders.***

On the live view, move the mouse to the top center area and click the “arrow-like” button for the main menu access.

SHzPUEVgzxwKk4vVeQcUX52n49mMJ3KrcnbDf1uV

After selecting the Menu button, select System tab.

r2UuhUBrXR

Then select the Network tab.

v2VR urzUlgzajO5cAXs3kWBFc8il4wp1asCOCPCOuryxFP2sJTfB koJsHftAE9VHm2EXbUrIlmrJmqIJIQsfVQ 0w9ifD4ImJ5u0OPE1WWzYYiGvLkvlxYBtUDb

On the Network menu, confirm that the network settings under the TCP/IP page is correct to connect to the internet properly. Also make sure the DHCP is DISABLE in this case because we are going to use the static IP address for the DDNS setup.

4W9rmJNe16 SdC02J T XoJJtLvPIoNTi1fc7HXMoSkAHH1QIQXEo1KgdNRCIc yDnloVQG2I8htawjtQcKuC scH65fO wN2DY7afOKFAVlHCo7KwLGPcmfCkOydym DI w0NFg

After confirming all the information on the TCP/IP is correct, select DDNS tab.

DpvYlKuZYfZpTMGVYTmOBTKnnfYvp6A e0GVBaRjJm h7JjnLvxz7Zdoy5UMR5 LAWCNqZqoVfXINQLy4T6Am12Bh6 6gkdt ByGYW oAOODUziy9uGyP2FMrODdTztVn2iPteLQ

On the DDNS setup page, you will need to enable the service before inputting the DDNS info. On the DDNS Type, you may use any of the service providers in the list, including DynDNS, PeanutHull, or NO-IP, if you already have an account set up with them. Otherwise, you may use CUSTOM DDNS to manually put in the DDNS info of the provider that you have an account with.

OumWJryMv4SMo0LoxzplMXcT5j2Nfwc6r5WRlDIN6wKa 8mnHmbapHPt8lNh7ZWAvqngss9Gz3fp84cA3Y4aiMq62IF9a

In this case, we’re using the eaterndns.com as our DDNS service provider. Simply put in the information of server address, domain name, user name, and password before clicking “Apply”. If the Internet connection has no issue and all DDNS info is correct, the status of DDNS service will show “DDNS status is normal” after the system reboots.

t6SgBfgNjftOjTZ2O QSA2Y0aLJ6Y4Sl fzNVB

Next step, you will need to enable and perform the port forwarding in your router (gateway), including the HTTP (80 by default), RTSP (554 by default), and Server ports (8000 by default). You will need to direct those ports to the IP address of the recorder in the router in order to get the data pass through to the remote devices, such as mobile phones and PCs/laptops that are not in the same locations. Please consult with your system administrators or installers if your device is using different ports other than the default ones. Please Note, “Port Forwarding” is a general term in the advanced settings of the router. Different router manufacturers may have different names for this function. Please refer to your router manufacturers for more information.

C6HZ3grN9Nf80DDDQgumyzpqQ8Nkp6MtCvTwUs6RQHcKbVLuvizNfO73ZgS4vOWefyNXPxIv2KTaWPIFikf62dUPZpbGzUbWxSE4We4Hs679R68x e I0OFDZ ci33I5nfHozcvu

Once the port forwarding sets up correctly on your router, you should be able to access the device remotely by typing “http://domain name:http port#” at the address bar of the browser on your PC/laptop. If the HTTP port number is 80, you don’t need to type port# after the domain name. As for the remote access through the mobile phone APP, please make sure to use the correct Server Port when adding the device to the cellphone. In this case, the default server port of the recorder should be 8000.
