What error message do you see on the screen?

We need to identify first the error message that your screen shows.

 If you see No SignalVideo Mode Not Supported, or Signal Out of Range, check this article to help you out: Video Mode Not Supported or Signal Out of Range or No Signal
 If you can access the Menu interface of your recorder but you see Video Loss or No Video, it is just your cameras that are not showing images. Read the rest of the article to learn how to fix it.
Here are some error message because of cameras not displaying any image:

 .

https://support.swann.com/hc/article_attachments/18999008194457 (from a DVR-4900/8075)
https://support.swann.com/hc/article_attachments/18999036712857 (from a DVR-5580/5680)

 .

Here is an overview of the things we need to check:

https://support.swann.com/hc/article_attachments/19003150865433

 .

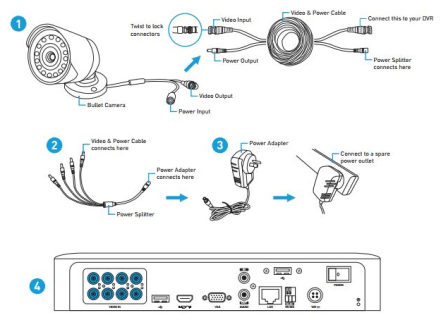

1. Camera to extension cable connection

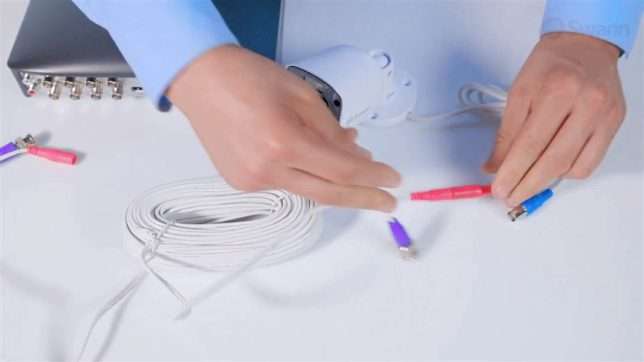

For some of you who installed the cameras already and forgot to test the cameras first, that’s alright. You can skip this step for now. You just need to make sure that the 2 connectors of your camera are both connected firmly to the extension lead; otherwise, you might end up with a powered camera but no video connection or a powerless camera with a video connection. Check the image below, that’s how your camera needs to be connected to the extension cable.

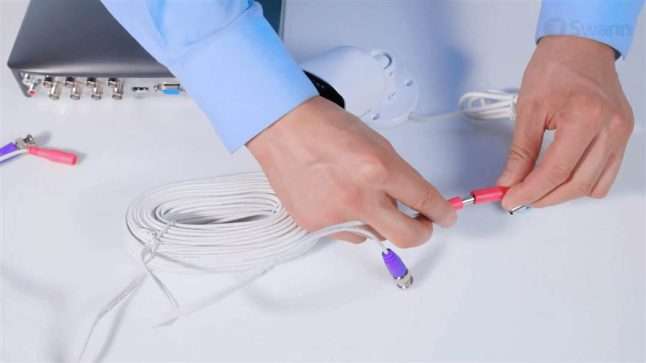

a. Connect the power connector

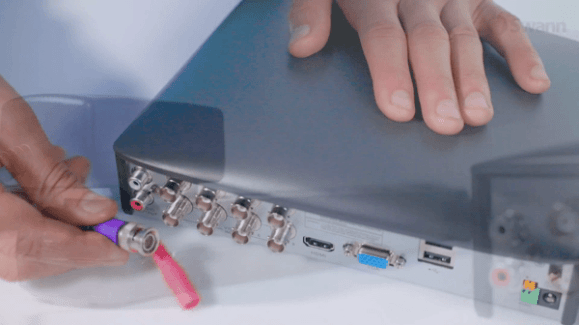

b. Then connect the BNC video connector

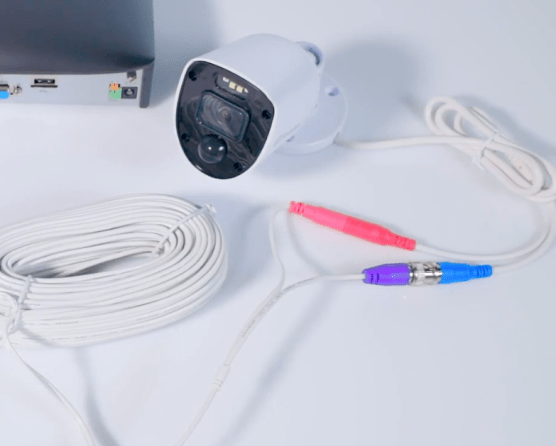

Here is what it should look like after the connection.

https://support.swann.com/hc/article_attachments/19000884999065

2. Extension cable to power splitter

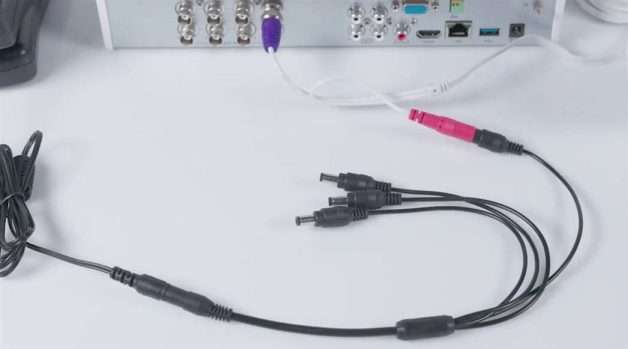

The extension will have 2 connectors on each end and you already used one end for the camera’s video and power connection. The other end of that cable needs to be connected to the power splitter especially if you have multiple cameras on your setup (disregard the splitter if you are dealing with an additional camera since it will come with its own power supply). The splitter will have 4 leads on one end and a single lead on the other. Pick one lead from those 4 and connect the power lead of the extension cable to it. See the image below on how it should be connected.

https://support.swann.com/hc/article_attachments/19001578796313
.

3. Power splitter to the power adapter

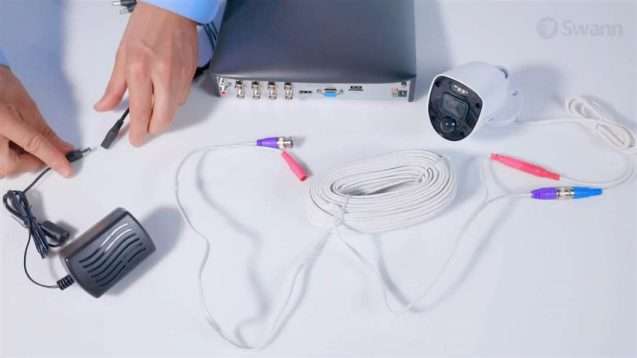

Grab the single lead from the splitter and connect it to the power adapter. Use the provided 12v power adapter from the kit. Then plug the power adapter into a working power point, wall outlet, or power board.


4. Extension cable to the DVR

Going back to the extension cable, we are left with one connector. That connector will be connected to the ports at the back of the DVR. These ports are normally labeled as Video In or Video Input. You need to push the BNC connectors and twist them to lock them firmly to the DVR. Check below on how to connect the BNC cable to one of the video connectors at the back of the DVR.


You are all set! Live feed from the cameras should now display on the TV/monitor. If in case it didn’t, you might want to check Video Loss Troubleshooting for DVRs for some advanced troubleshooting.



Swann DVR Troubleshooting Guide

Read More : Swann Camera Troubleshooting

.

Hard drive warning: Unformat error / Status: Abnormal

This applies to recorders that were pre-installed with internal hard drives (HDD) and worked before. This error or warning appears when the hard drive is no longer recording or can no longer be accessed but is still detected.

 .

A. The HDD LED is solid, indicating the hard drive is still detected but is not reading/writing.

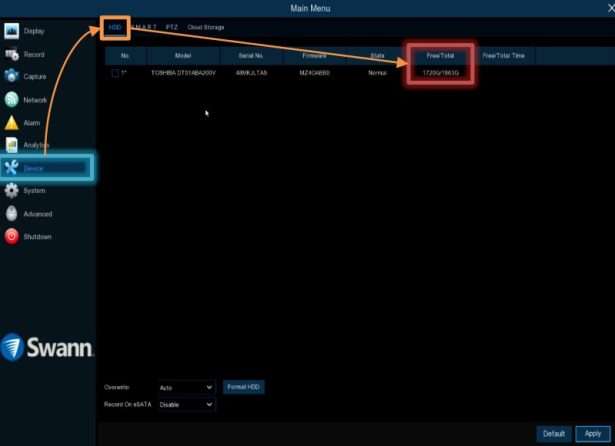

B. The HDD status (Menu > Device > HDD) shows “Abnormal” or “Unformat error”.

OS5 HDD.jpg

C. The HDD Free/Total capacity shows 0GB.

 .

A. & B. If Unformat error / Abnormal error shows

Do each step in the following order to remedy the issue:

1.Reboot the DVR. Go to Shutdown > Reboot.
2.Ensure you are using a power adapter with the correct output rating for your recorder. See What power adapter should I use? for your DVR, NVR or NVW. E.g. DVRs must use 12V 2A, not 12V 1A.
3.Plug the power adapter of your DVR or NVR directly to a known working outlet.
4.Go to Setup > Device (side) > HDD (tab).
1.If the HDD is blank, continue the steps in No hard drive or hard disk found.
2.If the HDD is present but there is still an unformat error, follow steps 3. to 5. below.

A. & C. If Total Capacity is 0GB

Do each step in the following order to remedy the issue:

1.Reboot the DVR. Go to Shutdown > Reboot.
2.Go to Setup > Device (side) > HDD (tab).
3.Check the box below No. and beside the detected HDD.
4.Click on Format HDD. (Warning: This will erase all and any recordings. We recommend you Export recordings to a USB (Swann Security) prior to format if you do not want to lose any recordings)
 Note: We do NOT recommend formatting the hard drive using a computer. It must be done from the recorder.
5.If the hard drive still incurs the same error after formatting or format failed, chances are the hard drive needs replacement. If you still have your proof of purchase, please request a chat and type “hard drive” for photo assessment and recommendation from our Tech Support.

Note: Formatting will not erase the Swann firmware.

.

No hard drive or hard disk found

This applies to recorders that were pre-installed with internal hard drives (HDD) and worked before. The following are signs that the hard drive is no longer detected in your DVR / NVR:

A. The HDD LED is off.

B. The HDD status (Menu > Device > HDD) is blank, meaning No. 1 is empty.
OS5 HDD.jpg

C. You may have experienced an outage or changed the power adapter.
.

A. & B. If you changed the hard drive recently

Bear in mind that only certain types of hard drives are compatible with CCTV security systems.

 We recommend using a surveillance-rated hard drive of the same size dimensions and storage capacity as your recorder’s hard drive, such as the Western Digital Purple™, Seagate Skyhawk™, or Toshiba Surveillance range of drives. If you wish to know the maximum capacity and size compatible with your DVR or NVR, you can request a Chat for “hard drive” and follow the prompts.
 Solid State Drives (SSD) for DVRs are NOT ideal for continuous recording, operation in high temperature setting, and large disk space. A DVR’s intention is reliability not speed. SSDs are very fast, but it will wear out eventually when writing happens frequently. Using an SSD is at your discretion.
 Desktop hard drives are not recommended as their low speed can cause playback skipping and errors. They are not optimized to support 24/7 read-and-write access.

Please visit Installing an additional Internal Hard Drive (HDD) for 16-channel Recorders for an example of how to change the hard drive of your recorder.

 .

A. & C. If you experienced an outage recently

The power adapter for your recorder was designed to protect the DVR or NVR in the event of a surge or power outage as adapters can be replaced easily unlike the whole recorder. Chances are the power adapter may be providing insufficient power for full recorder function (which includes the hard drive).

1.Ensure you are using a power adapter with the correct output rating for your recorder. See What power adapter should I use? for your DVR, NVR or NVW.
PSU output rating.jpg
2.In the event of an outage, unplug all connections at the back except the TV, mouse and power adapter. This is to check whether the hard drive will be detected and whether the power adapter is still providing some power.
3.Change the power adapter to a known working one that has the same output rating as in step 1.
 For DVRs, see Swap DVR Power Adapters for Boot Issues.
 For NVRs, there are no spare power adapters.

If the hard drive is detected after unplugging the cameras, chances are the power adapter is providing insufficient power and requires replacement.

If you are already using a compatible hard drive and a known working compatible power adapter, chances are the hard drive needs to be replaced. Please check What hard drives can I use with my DVR or NVR?

Swap DVR Power Adapters for Boot Issues

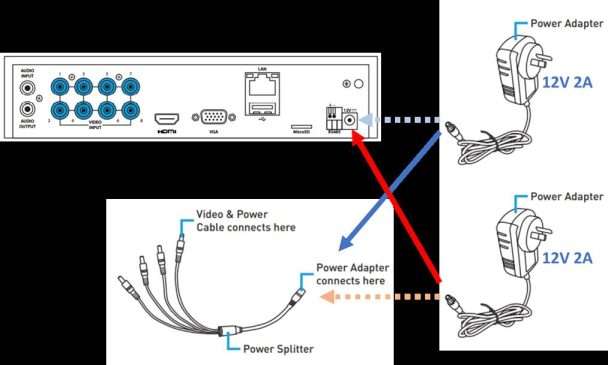

The power adapter of the DVR and the power adapter of 4 PRO- camera models are interchangeable as long as they have the same output rating of 12V 2A.

We do this to test whether the power adapter is faulty or the DVR is faulty. Power adapters are designed to protect the DVR in the event of power outages or power surges.

Warning: Do NOT use a power adapter higher than 12V on the DVR. Doing so will void your warranty.


Step-by-Step Instructions

1.Check the output rating of the camera PSU in volt (V) and ampere (A) or milliampere (mA).
 2000mA = 2A
2.Check the output rating of the DVR PSU.
3.As long as both are 12V and within the range of 2A~4A, the PSUs can be swapped.

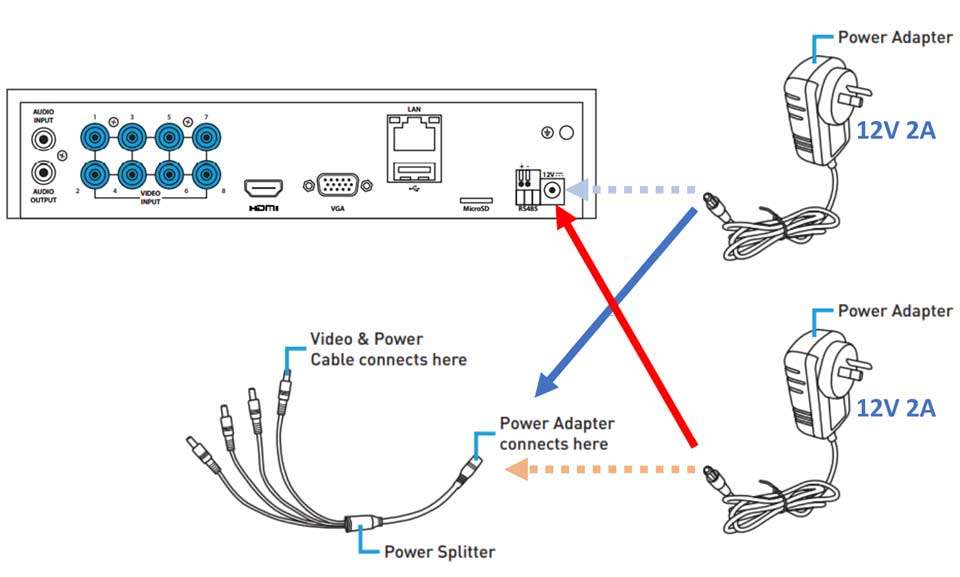

4.Unplug the power adapter from the splitter and connect it to the DVR if it is 12V 2A~4A.
5.Unplug the power adapter from the DVR and connect it to the power splitter if it is 12V 2A.

Note: If you have 8 cameras or more, you can swap the cameras’ power adapters instead of the DVR power adapter as long as both camera power adapters have the same output rating.

.

What hard drives can I use with my DVR or NVR?

This applies to Swann recorders with pre-installed internal hard drives for recordings. The type of hard drive compatible with Swann DVRs and NVRs are surveillance-type hard drives, which are connected via SATA cable. Before you decide to upgrade your internal hard drive, you MUST know the type, capacity, and size that your model is compatible with:

Compatible Type by Brand

 The following surveillance hard drives are compatible with Swann recorders:

 Seagate Skyhawk™ by Seagate
 Western Digital Purple™ by Western Digital
 S300 by Toshiba

They vary in capacity and size, so check below to identify what is compatible with your recorder.

Compatible Capacity

This is the maximum number of storage capacity in gigabytes or terabytes that a hard drive has which varies in compatibility with your recorder.

Most Swann recorders are pre-installed with a hard drive internally. If you wish to upgrade the capacity of your hard drive, you need to check with our Technical Support for the maximum capacity that your recorder model will support. The maximum capacity varies by model number.

Customers with Swann Security and HomeSafe View app-compatible products can inquire via phone.

Compatible Size

Should you wish to upgrade your hard drive, ensure to acquire the same size dimensions as the one in your recorder. Surveillance-type hard drives come in two sizes:

 2.5 inches
 3.5 inches

If you are unsure, customers with Swann Security and HomeSafe View app-compatible products can inquire via phone.

Compatible with External Hard Drives

If your DVR or NVR has an eSATA port on the back panel, it means your recorder is capable of connecting an external surveillance-type hard drive.

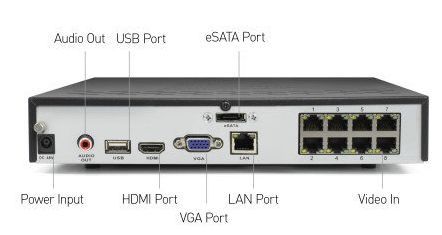

eSATA port.png

The function of the external eSATA port may either be for exporting recordings or recording depending on the chipset of your recorder model. For example: Can I use an external SATA hard drive to my DVR8-3000 to increase recording capacity?

The following recorder series have an external eSATA port for a hard drive of up to 3TB in capacity for external recording:

 NVR-7072 NVR-7082 NVR-7300 NVR-7400

Compatible microSD Cards

If your recorder model contains a microSD slot, it can support up to 128GB capacity for the microSD card.

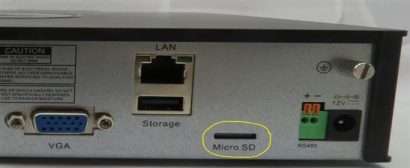

microSD port recorder.png

The following recorder models are compatible with up to 4TB capacity for the hard drive and 128GB capacity for the microSD card.

 DVR-4480G DVR-4480RN DVR-4480V DVR-4685 DVR-4685RN DVR-4480 NVW-490

Note: Simultaneous recording to both the internal hard drive and microSD card is not supported. If there is a hard drive internally, recording to the hard drive will be prioritized.

Not Compatible

 Solid State Drives (SSD) for DVRs are NOT ideal for continuous recording, operation in high temperature setting, and large disk space. A DVR’s intention is reliability not speed. SSDs are very fast, but it will wear out eventually when writing happens frequently. Using an SSD is at your discretion.
 Desktop hard drives are not recommended as their low speed can cause playback skipping and errors. They are not optimized to support 24/7 read-and-write access.
 USB External hard drives are not compatible with Swann recorders for real-time recording.

DVR/NVR went offline after an outage or changing routers or Internet Service Provider

This article applies to DVRs or NVRs that are hardwired to your router, and affects mobile or computer streaming, push notifications, and other features requiring internet connectivity.

The DVR or NVR going offline is a common occurrence when changes were made to the router, its settings, an outage, or changes in IP by your Internet Service Provider (ISP). In order to get it back online, you must have physical access to the DVR or NVR to check the following:

1. If there was a Power or Internet Outage

Normally, turning off the recorder and then turning it back on again will get the DVR or NVR to re-establish communication with your router. However, this will only work if its Network setup is set to DHCP by default. This ensures that the router is able to detect the DVR/NVR via ethernet and update its IP address.

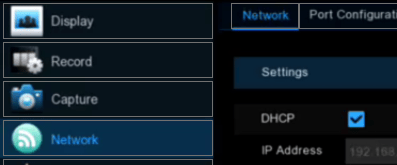

2026 DHCP.png

If rebooting did not work, please try additional steps from this article: Remote Access – Basic Router/Network Troubleshooting.

If the live view is blank, then the outage may have affected the power supply. Check this article to troubleshoot: Troubleshoot a Boot Failure or Rebooting issue of a Recorder (DVR/NVR/NVW).

2. If you changed or replaced the router (changed ISP)

See types of routers that may or may not work with the DVR or NVR in this article: Network Setup: What do I need for my DVR/NVR to go online?

If the router is compatible, then the connection between the recorder and the router just needs to be refreshed. See this article for the first few steps to re-establish the network connection: Remote Access – Basic Router/Network Troubleshooting.

3. If you added another router or extender

Ensure that the network connection setup has not changed. If the DVR or NVR is still connected to the same router, but that router was connected to a cable modem instead of a wall, then the setup is no longer a direct connection but a bridged connection.

See why the DVR or NVR may not work with a bridged router or particular extender in this article: Network Setup: What do I need for my DVR/NVR to go online?

How to factory reset my DVR / NVR (V8)

Default Settings VS Factory Reset

To load settings to default in recorder models, you must be logged into the recorder via TV and mouse or computer software.

 Factory default does NOT erase the system logs nor the hard drive but resets the username, password, and customized display, recording, alarm/motion, etc. settings.
 One or more menu settings can be loaded to default. Select ALL to restore to factory default.

How to restore settings to factory default via TV and mouse

You must know the user name and password of your recorder in order to do this method. If you do not know the password, you need to perform a password reset instead. See How to reset the password or get the recovery code of your DVR/NVR/NVW

1.Right click on Live View or go to the Task bar.
2.Choose the first icon: Setup.
3.Go to Advanced > Maintain (tab).
4.Click on Load Default.
5.Check System> Save.

You will be taken to the Startup Wizard to set a new password. See Frequently-asked questions and tips to complete the Startup Wizard

How to restore to factory default via Windows software

The DVR or NVR must already be added in the software beforehand and is online in order to do this method. If your DVR or NVR has not been added, you need to perform a password reset instead. See How to reset the password or get the recovery code of your DVR/NVR/NVW

Via HomeSafe View software:

Go to Control Panel > Group Device Management > Devices: hover over Device > click on Remote Config (wrench icon) > Advanced > Load Default > Check the appropriate box > Save.

Via Swann Security VMS software:

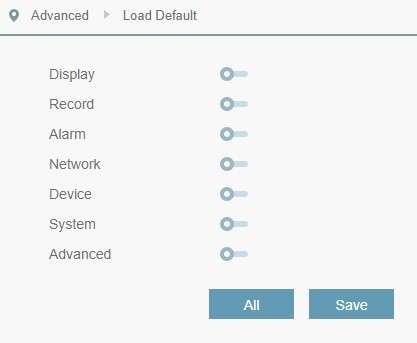

Go to Device Management > Advanced > Load Default > Toggle the appropriate options > Save.
SS_software_remote_config.jpg SS_software_remote_config_load_default.jpg

Warning: Once you have restored the recorder’s settings to default via software, you are required to set a new password via TV and mouse hardwired to the recorder. If you are unable to login to the Main Menu nor access your recorder via software, you need to do this: How to reset the password or get the recovery code of your DVR/NVR/NVW

Troubleshoot a Boot Failure or Rebooting issue of a Recorder (DVR/NVR/NVW)

If you your Swann recorder (DVR, NVR, NVW or wireless recorder) is experiencing the below issues, then your unit may have a boot failure problem:

 LEDs are OFF at the top or front of the DVR.
 LEDs are ON and the Swann loading page shows but reboots after.

To isolate, consider following the steps below

1.Check the Output rating or the red tag label attached to the switching Power Adapter (PSU).
 Power rating – the common output rating for DVR PSUs is 12V / 2A (2000mA) and 12V / 1.5A – 3.75A for NVRs depending on the model of the recorder. https://support.swann.com/hc/article_attachments/20078120680345
 Note: Some of the older DVR PSUs use 12 V / 3A and 48 V / 5 A for NVR. For a list of Power Adapter (PSU) ratings appropriate for your device, please check this What power adapter should I use article.
 Red tag label – most of the power adapter included has red sticker along the power cable to indicate its use (e.g. DVR/NVR or Camera).  https://support.swann.com/hc/article_attachments/20077086885017
2.Plug to a wall outlet – to eliminate possibility of faulty extension cable or UPS.
 https://support.swann.com/hc/article_attachments/20078787256345
3.Unplug some cables – if you have an Ethernet cable or cameras already connected, disconnect them for the meantime. Only leave the power plug and monitor connected.
4.Secure connection – ensure that the power plug is connected securely to the recorder and not loose.                            https://support.swann.com/hc/article_attachments/20079605338393
Note: Some of the older NVR PSUs use a larger Barrel plug.
5.Turn on the recorder – some units may have power switch at the back. Ensure that it is switched ON.                                        https://support.swann.com/hc/article_attachments/20083642937369
6.For DVR and NVW-800/AllSercure 650 units, if the NO power issue still persists, swap the camera PSU with the recorder to isolate problem. Check this article for the guide.
 Note: This is for testing purposes only. Do not continue to use the camera PSU if the output rating is less than 2A.

Note1: If the recorder remains turned Off, check if the wall outlet where the Power Adapter (PSU) is plugged in has power.

Note2: If the recorder turned On but seeing a black screen, consider checking if your monitor support the correct screen resolution by following this guide – Video Mode Not Supported or Signal Out of Range or No Signal.

Why does my DVR / NVR / camera stop recording motion after a minute?

DVRs and NVRs are set to record PIR/motion by default. Wireless standalone cameras can only record by PIR/motion. Where the camera is mounted can have an impact on how effective movement is picked up and recorded.

Mounting any camera with thermal and motion sensors in the wrong location and angle can prevent recordings of certain movement. For example:

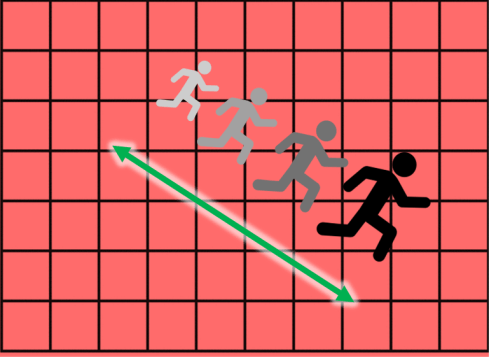

 Movement in the directions indicated by green arrows are more likely to be detected.
v8
 If the movement is toward and away from the camera at a short distance, the camera sensors may not be able to identify the changes between frames because the differences are subtle.
 If the movement stops, the DVR / NVR will stop recording. This means an intruder could still be standing on the same spot with subtle movements long enough to thwart the PIR/motion sensors.
v9

Please see the fixes specific to your model for working around PIR/motion:

Fix for DVR: Set the already-mounted DVR camera to record continuously

This setting is ideal if you mounted your camera above your front door, and you expect the camera to record regardless of motion.

See How to Set Up 24-hour continuous recording for a Camera (DVR or NVR only)

Fix for NVR with V8 firmware: Set up Analytics for your NVR camera.

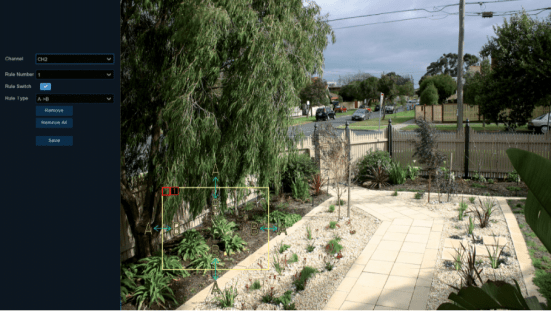

Perimeter Intrusion Detection (PID) with PIR can be configured for one NVR camera if you have a V8 recorder and camera.

 A perimeter intrusion region can be used to define specific areas that you want to monitor for motion. For example, a rule can be defined so that your NVR will alert you if one or more objects have entered the boxed region from a particular direction and stayed within the intrusion region for a particular time.


Please see the user manual for your NVR on how to set up PID: User Manual (V8 units – 8580, 8580RN, 8780, 8780RN,)

 .

Fix for any camera, especially WiFi cameras: Reposition the camera or add another camera for a different angle of view.

The ideal position of the camera is 7-8 feet high, pointing downwards at an angle to cover the area where people will be walking across the camera’s path
v9
