How to Connect Zosi wifi cameras to nvr

How to Connect Zosi wifi cameras to nvr

Can I the Zosi C289 Camera to the Zosi ZR08JP / ZR08PR / ZR08RP / ZR08LL NVR System

Applies to: Zosi 289 camera and ZR08JP / ZR08PR / ZR08RP / ZR08PU / ZR08GP NVR System (The firmware version of the NVR must be V1.6.4 or above).

In fact, you can use the wireless camera C289 separately.

If you want to the C289 camera to ZOSI Wireless NVR: ZR08JP / ZR08PR / ZR08RP / ZR08LLthe camera and NVR must be connected to the same router;

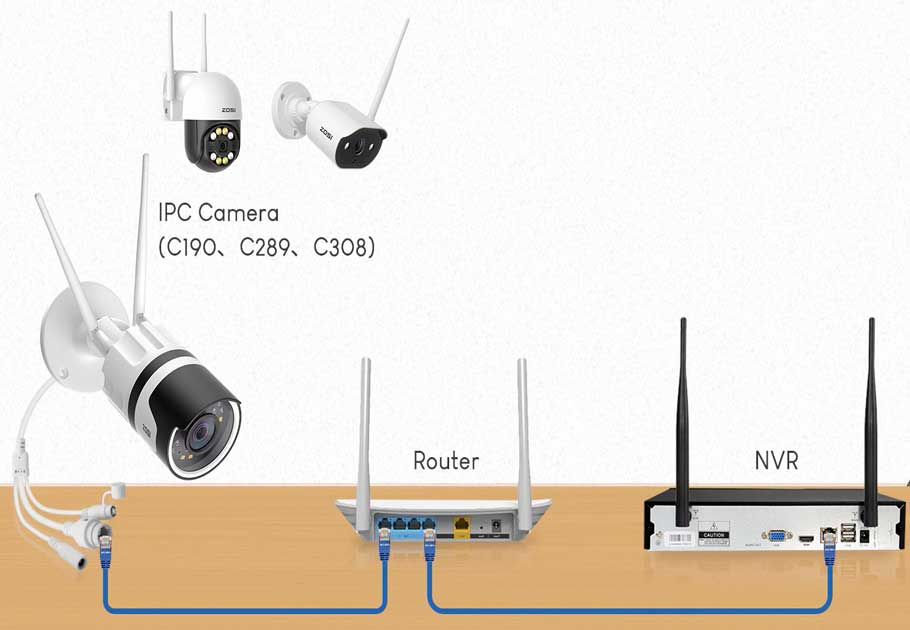

There are two ways to connect C289 camera to these wireless NVRs: Wireless Connection and Wired Connection.

Load more : How to set up record and playback ZOSi XVR NVR

Method 1:  Wireless Connection


1) Power on the camera, wait about 20 seconds to start, it gives out “device is waiting

for connection”. After is connected to WiFi, log in and go

to the “Device” page, tap the “+” in the bottom middle to Add device.

mceclip1.png  mceclip2.png

2) Select Camera C289.




3) Tap the “Scan QR Code” and scan the QR code on device or tap “Enter device UID

by manual”, enter the device UID and confirm.

mceclip4.png mceclip5.png   mceclip6.png

4) On the Device Information page, enter the device name and click “Add an

unconnected device”, confirm.


5) Setting WiFi for the device on the “Connect to WiFi” page. Tap “Next” and then tap

“Hear the tone” on the “Power On” page.

mceclip8.png    mceclip9.png

6) Tap “Scan QR Code” and align the QR code generated on the

camera lens for scanning.

mceclip10.png  mceclip11.png

7) Camera make a click sound, and you will hear “Wireless configuration successful”

“WiFi is connecting, please wait” and after hearing “Wireless connection succeeds”,

tap “Next” and “Confirm” in the pop-up box. Tap “Done” on the “Device Added

successfully” page.

mceclip12.png   mceclip13.png

NOTE: If the device is not added successfully, please reset the device by pressing the

device reset button for 5 seconds, and then add device again according to the above

steps.

8) Connect the NVR to the same Router through Ethernet cable.

Enter NVR’s IPC Channel Config to click “Search” to find the camera.


9) After you find the camera, please click “Add all” to add the camera.

And it will be added to the NVR successfully.




Method 2:  Wired Connection

1) Connect the wireless camera power adapter(12V-1A). Make sure your C289 camera and zosi NVR system are connected to the same Router through Lan cables, so the two devices will be in the same network.


2) Reset the camera by holding on the reset button for 5 seconds then you can hear crisp voice from the switcher inside the camera:reset successfully,waiting to connect .



3) Enter NVR’s IPC Channel Config to click “Search” to find the camera.


4) After you find the camera, please click “Add all” to add the camera.

And it will be added to the NVR successfully.


Then you can go back to view the video.

Besides,you can watch this video if you don’t want to read too much text;
