How to Use People Counting

1. Introduction

To the flow of people, we added People Counting as an advanced function to our . It has been well-received by the market since released.

Now, we release version 4x.7.0.77, separating People Counting from VCA and adding Statistics Report function. From this article, you can have a better understanding about People Counting, Analysis Settings and Analysis Search.

Note: Only camera firmware version 4x.7.0.77 or above supports this function.

1.1 What is People Counting

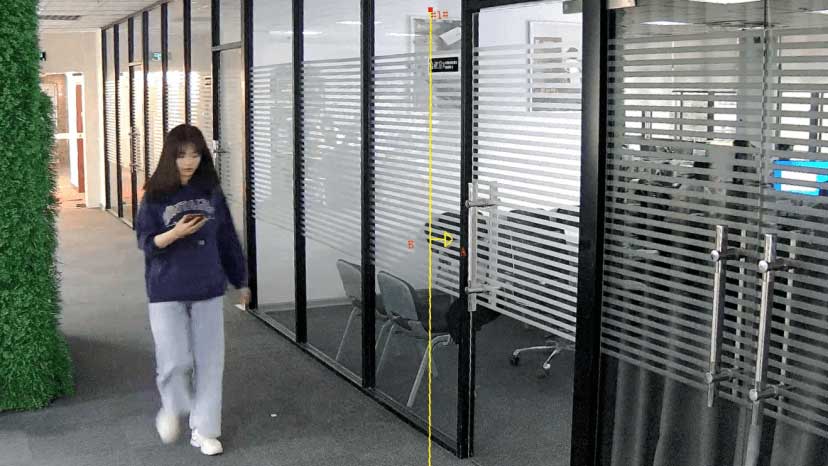

People Counting is able to count how many people enter or exit during the setting period, which can therefore serve multiple purposes such as helping retailers to count how many customers came in a day. It records the number of people passing through the line automatically. People who cross along the direction of the arrow will be recorded as IN. On the contrary, they will be recorded as OUT.

p911ydjtay6hCFszURV34CCVZa7iW9ejyA

1.2 Installation Suggestions

When the camera counts, it will frame each object. To ensure the accuracy of counting, we need to let the object pass the line completely. There are two installation suggestions as follows.

• Top Mounting: Top-mounted cameras can better separate people passing side-by-side.

• Wall Mounting: Wall-mounted cameras can better identify people.

jxiSSQ8JRTBtXDB2 BLnDKPZbuseQpYnEQ

Note: Either way, you need to make camera and people have a proper distance. And there is enough area in front and behind the detection line for the camera to recognize the object.

2. How to Set People Counting

2.1 Basic Settings of People Counting

Step1: Select Event→People Counting→People Counting in Configuration and it. series cameras have advanced options to select and configure different preset points.

Iduh2HrGXwoblTyGIpXlSzLyCooV MWlUw

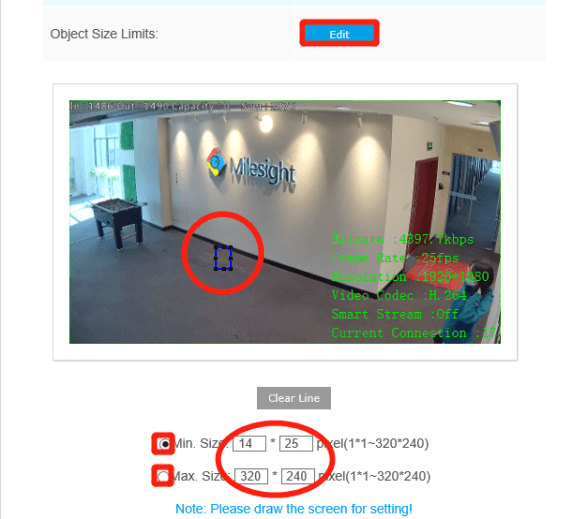

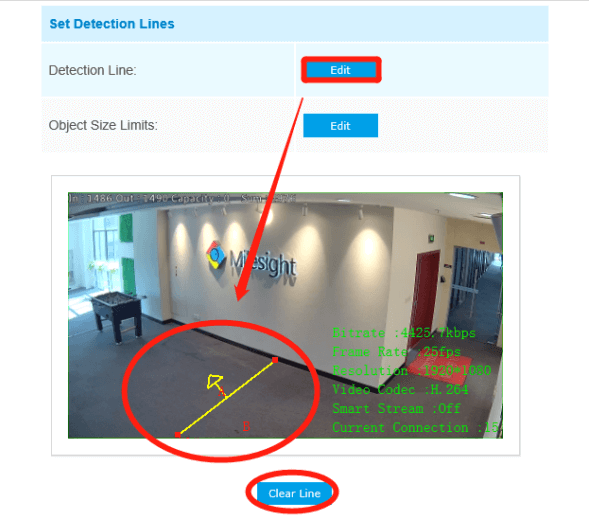

Step2: Click Edit of Detection Line and draw a line. The direction of the arrow is IN. If necessary, you can also set Min and Max size limits of object to exclude abnormal targets.feCuaTUrDn8Q781Zu9lVRzufuv vbspLQw6LoEOKqkTVZ 4t1TTTvUfYQ8n 4u 6AzXQ

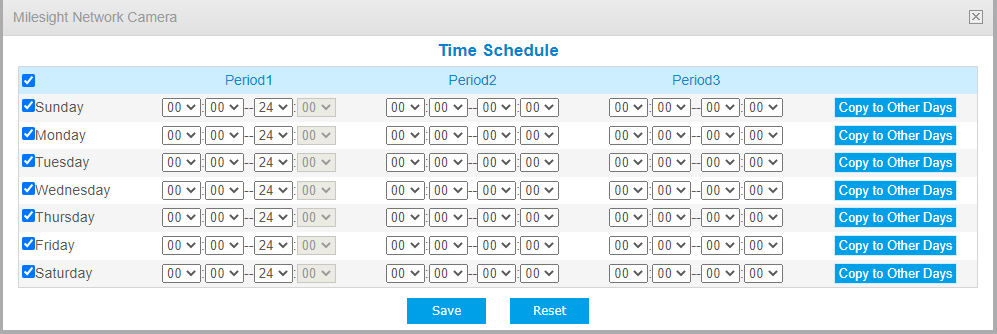

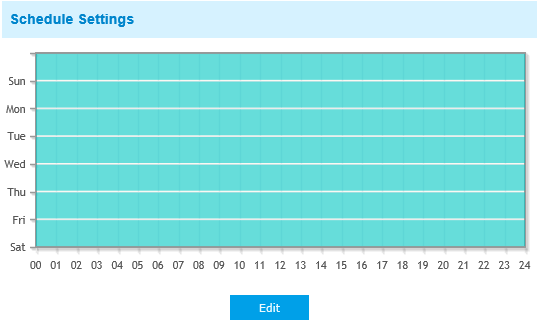

Step3: Click Edit of Schedule Settings and Choose when to count people. M7 DgVP0UlFMDI40AnnIJgaS5eSmvLsp Q

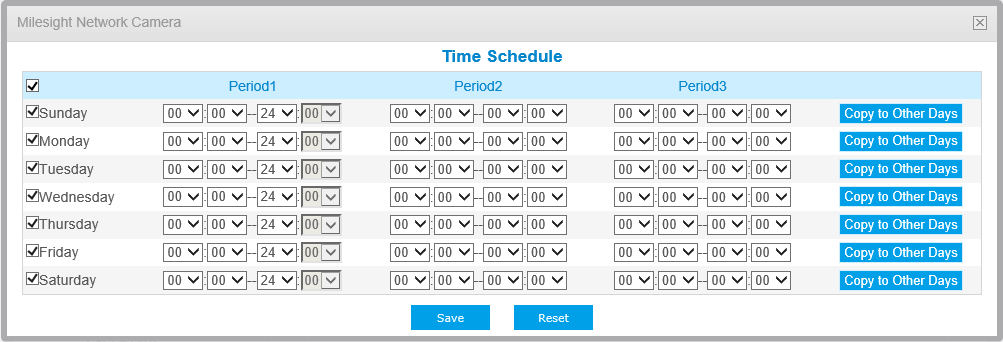

8kDIe9 M50GnPNNJJBdPWwdOnSzEWWtQMw

Step4: If necessary, turn on Counting OSD to display People Counting on the LiveView.

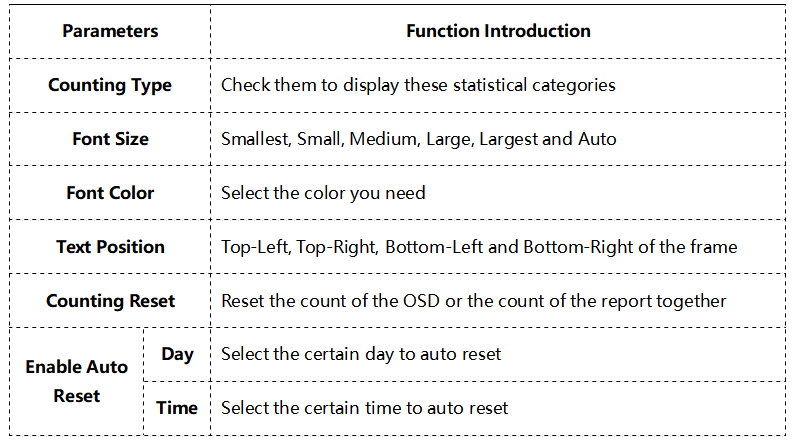

 Table1 Description of the buttons

xFtf66iKNLq0Sh U01OwM6sSDoWGZY2gYQ

2.2 Settings of People Counting

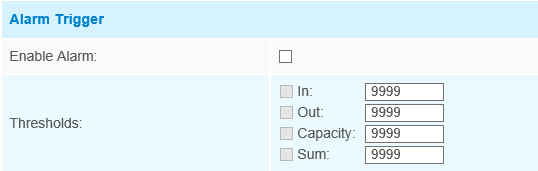

Alarm Trigger: Enable Alarm and set Thresholds first, and then you could do other settings.Y3SE0nMUj 8FjfyehorCwzqX8O1YNTtRQA

Alarm Action: Configure the specific actions of the camera when the alarm is triggered.wmLJ78 JHXXpXQbvHl8AtiYJVXv9Es CvQ

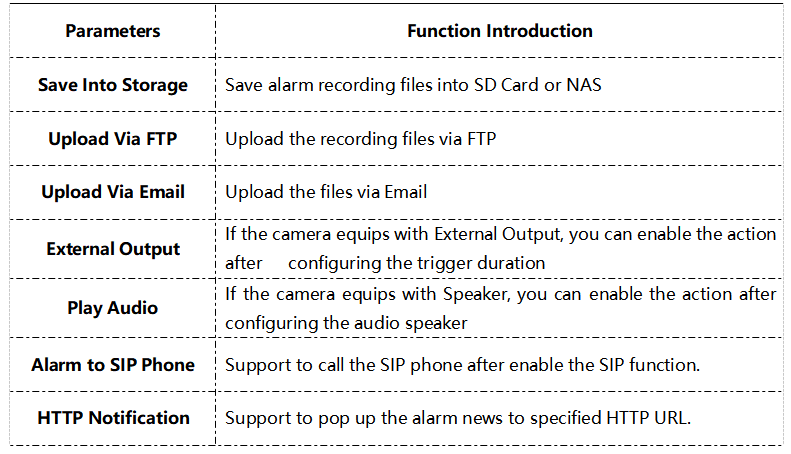

Table2 Description of the buttons

B5n 9giVTXtSgD38E enPjbLGbQi 122 Q

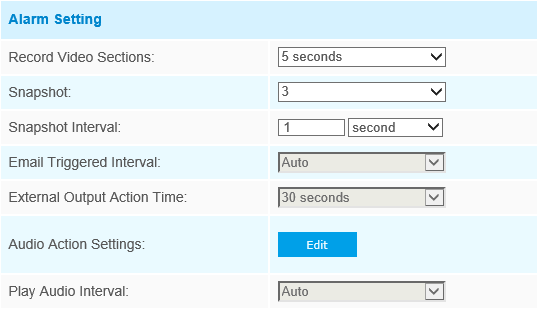

Alarm Setting: Set alarm settings.NDHH6UDdI4g6PI7GQaGl2Ohljswta7whpw

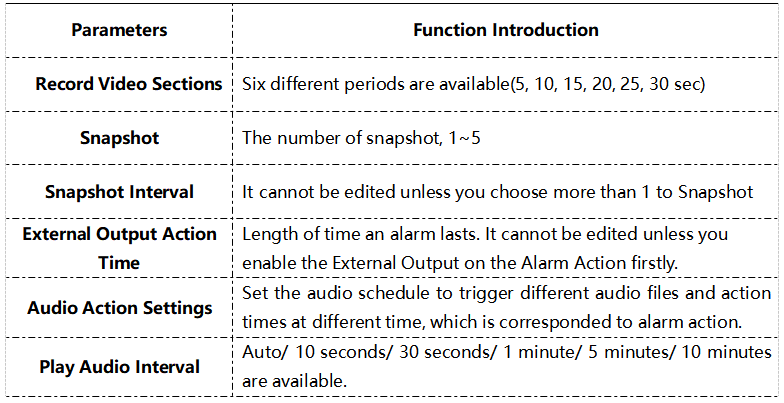

Table3 Description of the buttons

dwAihrt4ZxJ QUD82cK5Z5k36NFehHwKJA



3. Regional People Counting



When enabling regional people counting, users can check the real-time number of people and the time of each person's stay in the detection region

e2R0mmV0A9D3iemvRUe5n5EEJdVrX5Mwg

Settings steps are as shown below:

Step1: Enable Regional People Counting;

Step2: Set detection region and object size limits. The object size limits can refer to screenshot above;

Step3: Set detection schedule, edit the schedule settings and choose when to count people.



7UQ8MCNFQODbfe eD5pgfw1YdD4Ey 3B2A

Step4:

Set Alarm Trigger and Alarm Action, Alarm will be triggered and take actions what you chose when the thresholds reaches to a certain value.

A3jMIGN3ikD2qOfXMVpS19B1rfdJFz C0A

Note:

version xx.7.0.78 or above  support regional people counting

.

4. Statistics Report

After a certain time of counting, you can start using the Statistics Report function. With this function, you can search by Statistics Types or Report Type. The search result supports Line Chart and Histogram, which could help users to study flow trend.








Search: Select Event→People Counting→Statistics Report in Configuration. Before click Search, you need to configure each parameter.

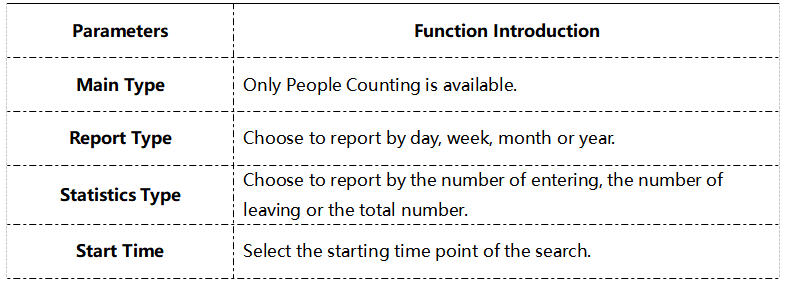

Table4 Description of Parameters

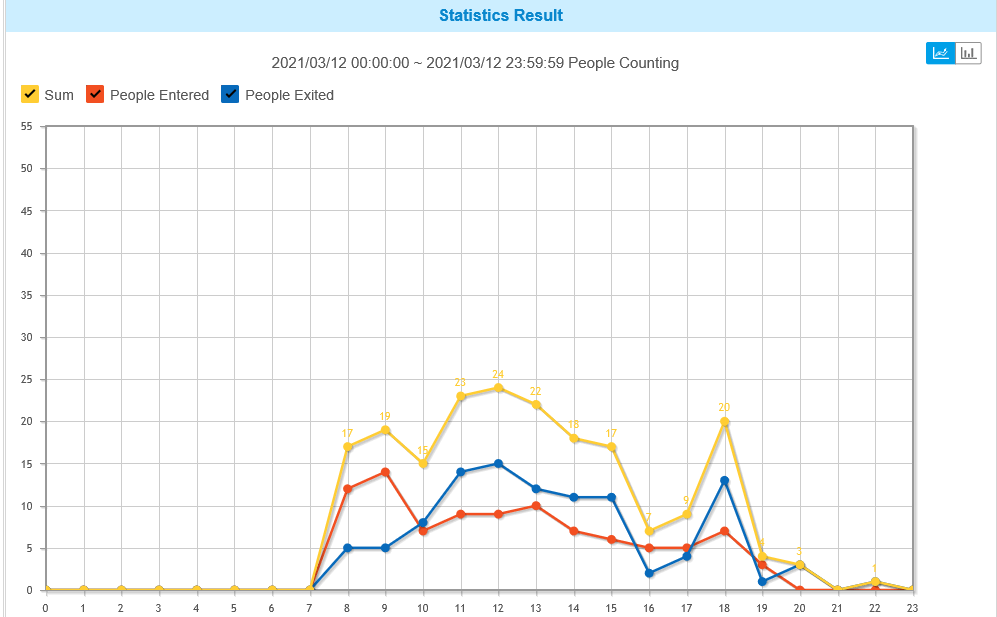

 Click the button in the top-right corner to switch Line Chart and Histogram.

uIuBMV0bEH9qQz0Dwpbzrk1yPbSicTphGw
i7dsZ7NZ8tG99OSfkiDSIvDkGrbGKVzQCA

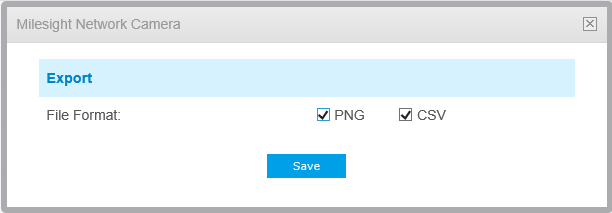

Export: Click Report Export to manually export a picture or a CSV sheet of current display result.EseXHDZSgs gZMZyy06P XCZWBqoO2ly9Q

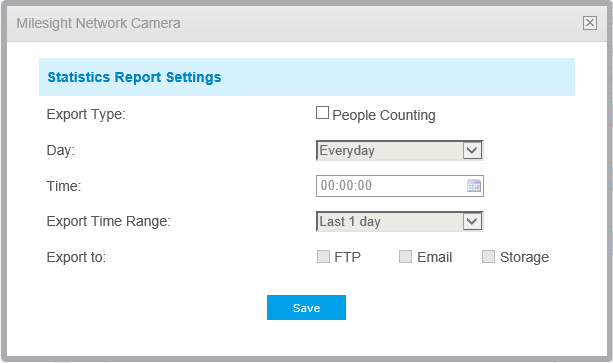

Click Auto Export to configure the time, range and direction for automatic export, which only supports CSV sheets.pIA81cBR66fbwpnEacSZubBbOFVvB LPhA
