How To Setup my Kasa Cam?

Please following the instructions step by step in this article to go through the entire setup process, then you can control the Kasa Cam with your Kasa app.

Before we begin:

1. Please download Kasa Smart from App Store or Google Play and install it on your smartphone.

2. Connect your smartphone to your home Wi-Fi network.

3. Plug your Kasa Cam into a power socket.


Here we use KC120 for example

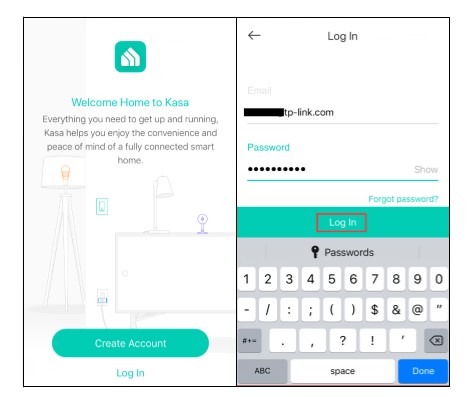

Step 1:  Open the Kasa App

Log into your cloud account. Please refer to the link to sign up if you don’t have a cloud account.

5 1558082503006kSTEP1

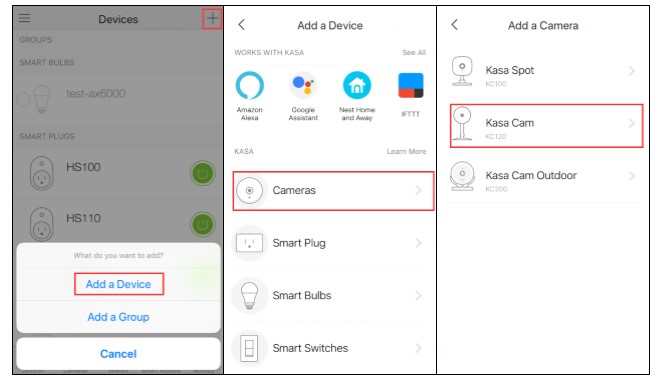

Step 2: Tap “+ button to add a Kasa Cam, select “Add a Device”, and choose “Cameras” icon according to your model number.

6 1558082514329eSTEP2

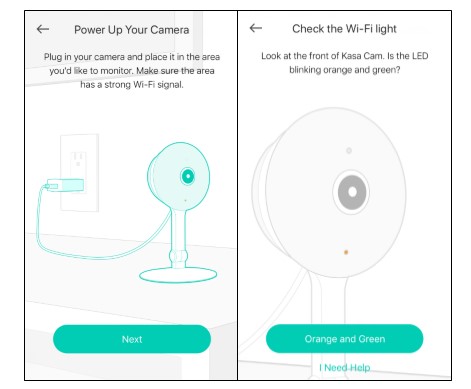

Step 3:  Follow the instruction on the Kasa app to power on the Kasa Cam, wait for the light blinking orange and green.

If the light do not blinking orange and green, please reset the Kasa Cam as per UG/QIG.

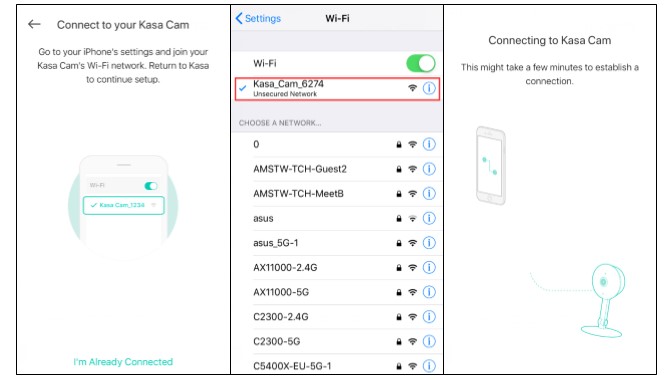

Step 4: Connect your phone to the Kasa Cam’s Wi-Fi network.


For Andriod:

Kasa will look for your Kasa Cam automatically, and it will take about a minute.

If you have a problem with this step, please go to Settings->Wi-Fi on your smartphone and manually connect to Kasa Cam’s Wi-Fi network (same as iOS).

For iOS:

You need to connect to the Kasa Cam’s Wi-Fi network manually, please go to Settings->Wi-Fi on your smartphone and manually connect to Kasa Cam’s Wi-Fi network (which is named Kasa_Cam_xxxx), and then go back to the Kasa app to continue the setup process.

STEP58 1558082539598q

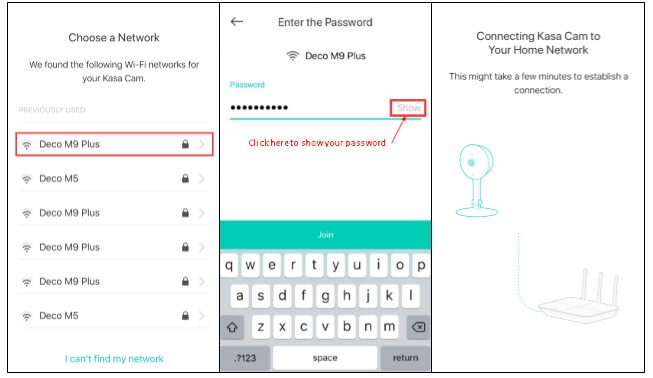

Step 5:  Choose your home network to connect, enter the password of your home network.

9 1558082564588jSTEP6

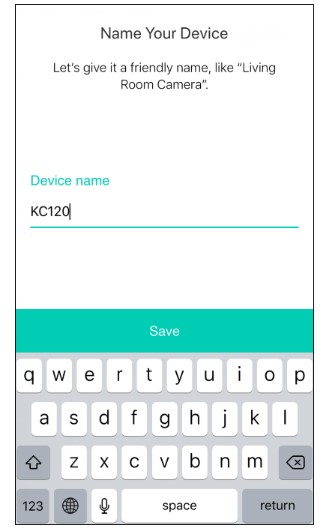

Step 6: Name your Kasa Cam

10 1558082579324sSTEP7

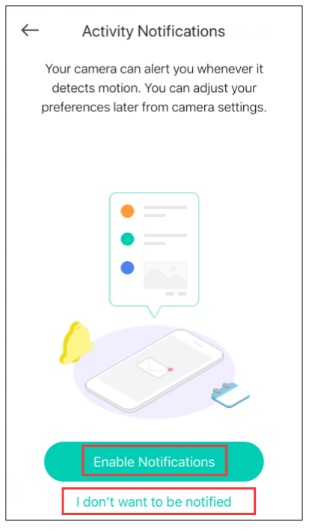

Step 7: Enable Activity Notifications. If you enable this function, your camera can alert you whenever it detects motion. If you don’t want to be notified, click on “I don’t want to be notified”.

11 1558082596148iSTEP8

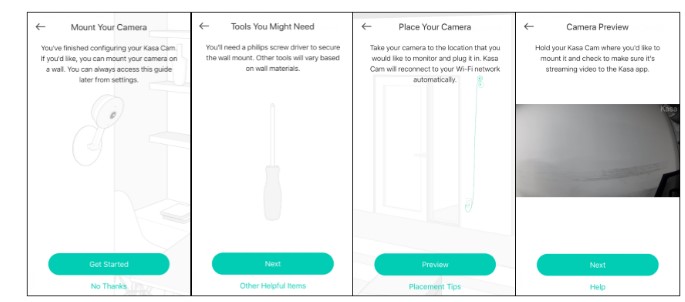

Step 8: Follow the instruction to mount your camera. If you do not want to do it now, click on “No Thanks”, and we have completed the setup of Kasa Cam.

12 1558082609582hSTEP9
