XMEYE DVR User Manual

XMEye DVR is video monitoring software for IPC and DVR. With cloud technology, easy log in by the device’s serial number to show the live view monitoring video to Android phone and do operation accordingly.


1Basic operation

Note: The button in gray display indicates nonsupport.

1.1Turn on

Plug the power supply and turn on the power supply switch. Power supply indicator light shining indicates turning on the video recorder. After the startup you will hear a beep. The default setting of video output is multiple-window output mode. If the startup time is within the video setting time, the timing video recording function will start up automatically. Then the video indicator light of corresponding channel is shining and the DVR is working normally.

Note:1. Make sure that the input voltage corresponds with the switch of the DVR power supply.

2. Power supply demands: 220V±10% /50Hz.

Suggest using the UPS to protect the power supply under allowable conditions.

1.2Turn off

There are two methods to turn off the DVR. Entering [main menu] and choosing [turn off] in the [turn off the system] option is called soft switch. Pressing the power supply switch is called hard switch. Illumination:

1Auto resume after power failure

If the DVR is shut down abnormally, it can automatically backup video and resume previous working status after power failure.

2Replace the hard disk

Before replacing the hard disk, the power supply switch in the real panel must be turned off.

3Replace the battery

Before replacing the battery, the setting information must be saved and the power supply switch in the real panel must be turned off. The DVR uses button battery. The system time must be checked regularly. If the time is not correct you must replace the battery, we recommend replacing the battery every year and using the same battery type.

2 / 111



Note: The setting information must be saved before replacing the battery otherwise information will lose.

1.3System Login

When the DVR boots up, the user must login and the system provides the corresponding functions with the user purview.There are two user settings. The names are admin,and default and these names have no password. Admin is the super user purview; default‟s permissions are preview and video playback. User admin‟s password can be revised, while their permissions can‟t be revised; user default is the default login user whose permission can be revised but not its password.

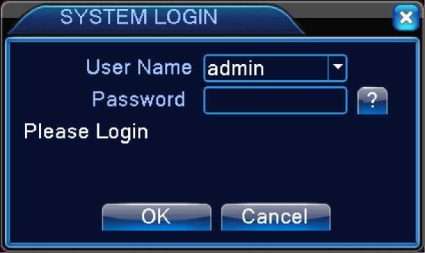

Picture 1 425w253h

System Login

Password protection: If the password is continuous wrong three times, the alarm will start. If the password is continuous wrong five times, the account will be locked. (Through reboot or after half an hour, the account will be unlocked automatically).

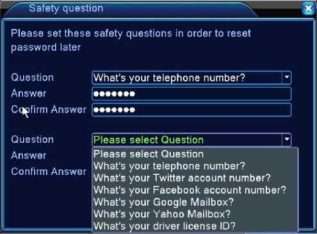

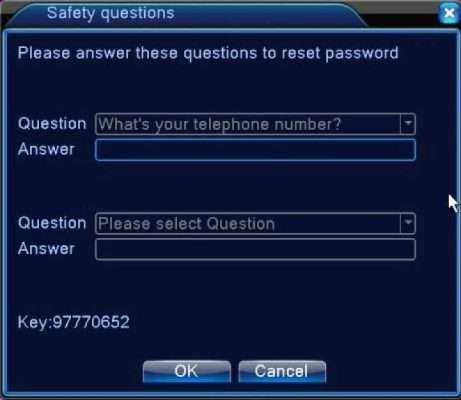

Safety QuestionWhen you forget the password,you can click „?‟ to enter the reset password page. Note: The default is no safety question.You can set the safety question on the account page . If the answer is continuous wrong six times,the page will be locked(you have to reboot the device to continue the operation)

3 / 111



Picture 2 461w400h

Safety question

1.4 Preview


The date, time, channel name, channel stream value, channel resolution, the channel signal mode (most models support), etc. are shown in each preview screen, The surveillance video and the alarm status are shown in each window.

4 / 111



Preview icon

1.5 Boot wizard

Provide fast setup to wizard configuration parameters. Including boot wizard, two-dimensional code and digital channel configuration wizard, click “Next” to enter the digital channel configuration wizard.

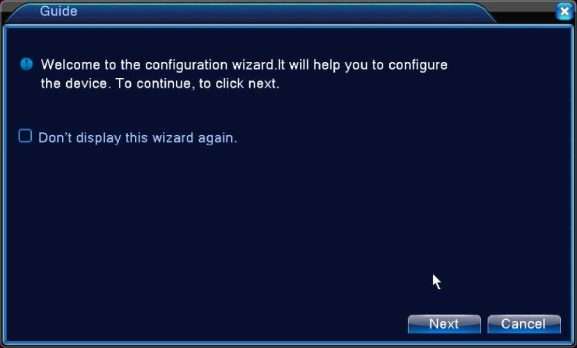

Boot wizard:

Picture 3 577w348h

Boot wizard interface

[Do not Display] select the highlighted expressed after reboot, no longer automatically pop up boot wizard.

[Next] enter the digital channel configuration wizard interface.

[Cancel] to save the settings and exit this screen wizard interface.

5 / 111


XMEYE DVR User Manual

Read Next : XMEYE – How to connect DVR/NVR on PC Mobile Browser

All Xmeye Devices Articles : https://www.xvraid.com/?s=xmeye



Picture 4 494w367h

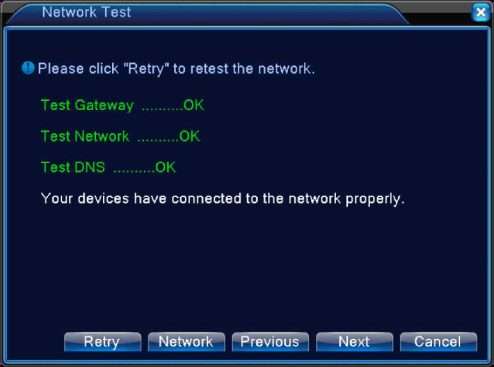

Network test

Network Test Green OK means connect to network successfully,red ERR means failed

RetryClick “Retry” to test the network again

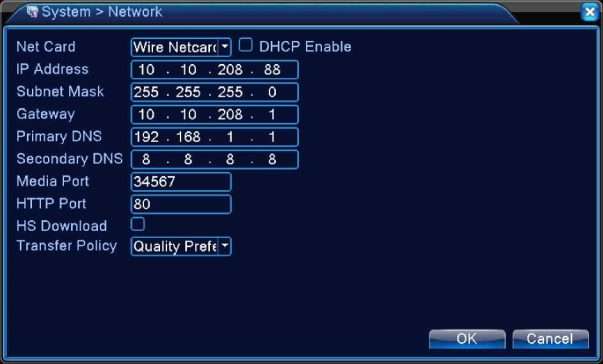

Networkclick it to set the device network setting

SkipClick it to skip this network test

NextClick “Next”, will pop up APP and SN QR code,

QR Code

Picture 5 255w154h

Picture 6 249w150h

QR code interface

NextClick ”Next”, will pop up mode selection.

Mode selection:

6 / 111

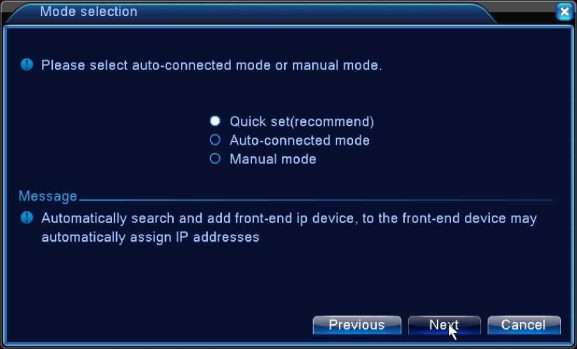

Picture 7 577w349h

Mode selection

Quick setselect the Quick set to enter the digital channel configuration wizard and start to search the remote device IP in the same LAN automatically, and then add the IPC to the backend device in accordance with the order of search, and you can cancel this process manually;

Auto-connected modeThe back-end device can modify the remote ipc device to the same network segment which are under the same LAN and automatically completes the addition; when the function is enabled, the boot wizard ends

Manual modeSelect the manual mode to enter the digital channel configuration wizard, you can set shortcuts for digital channels;

NOTE: After using this function, the parameters in the configuration of all digital channels will be updated, please caution.

7 / 111

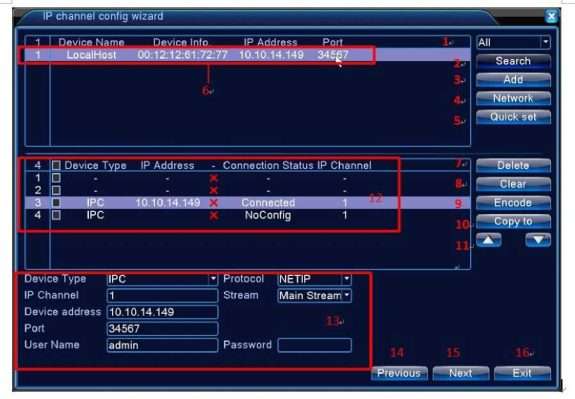

Picture 8 575w399h

Digital Channel Configuration Wizards

Label meanings:


CAM01 S «S






□ 17-01-21 16:23:46 SMA








* CAMWf  1















CAM 13 ad  

CAM 14 as  

CAM 1 5 as  




Recording status



Video loss





Motion detect





Video blind






















Camera lock















The maximum resolution



AHD&TVI & CVI  Signal




Channel  stream  value

(some model can support this)




1.Search protocol selection

Includes three search methods, respectively NETIP, ONVIF, ALL


Search device


Add device

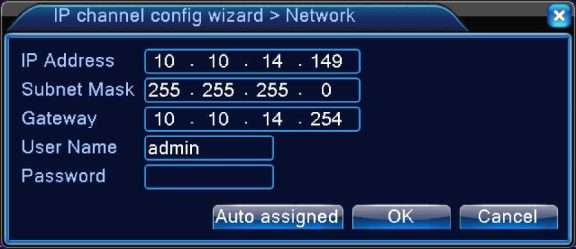

4.Network Settings

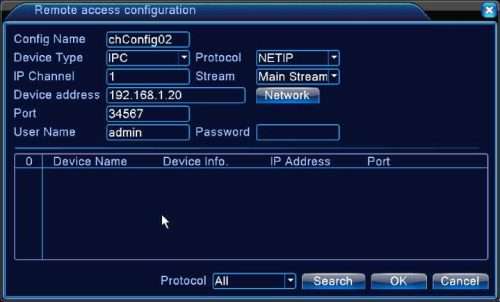

The device can be set remotely channel, user name, password; click the Network Settings button, you can set the network of the device, including IP, subnet mask, default gateway (ONVIF protocol devices cannot make network settings).

Picture 9 576w249h

8 / 111



Network settings

5.Hotkey settings

Configure all channels by one key.

6.Equipment list display area

This area displays the discovered devices.


Select the device has been configured, click Delete, you can delete the device


Clear all configured channels

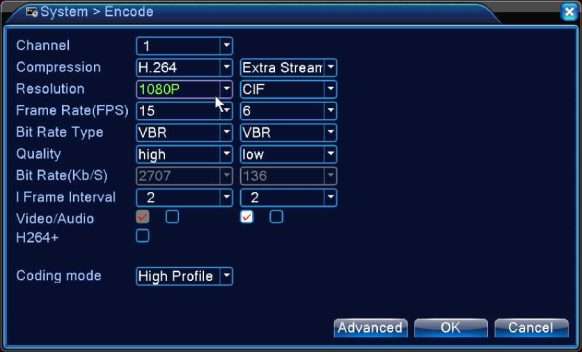

9.encoding settings

You can set the front end configured coding

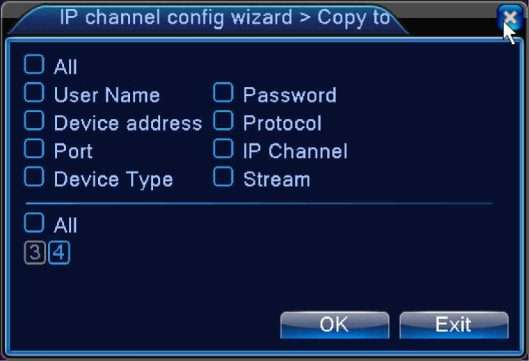

10.Copy to

Some information of selected channels can be copied to other channels, such as user name, password, and other device information, as shown below:

Picture 10 529w361h


Copy to

11.Up and down keys

Click the device in the list, click up and down buttons to move the device up and down.

12.Configuration Status

Configuration status of each channel, including not configured, connected, not online

13.configuration front-end information

The information of the front-end configured, user name, password can be set in this area.

9 / 111




Return to the previous screen and that is the boot wizard interface.


Add the selected device to the appropriate digital channels, and then enable the channel; the remaining non-selected digital channel is not enabled.


Return to the preview screen.

1.6 Desktop shortcut menu

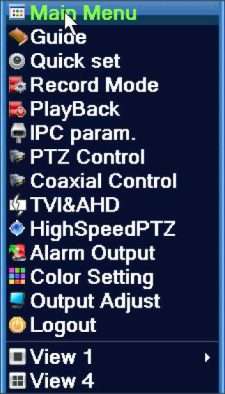

In preview mode you can right click mouse to get a desktop shortcut menu,as the picture shows. The menu includes: main menu, Guide, Quick set, record mode, playback, IPC param,PTZ control, coaxial control,TVI&AHD signal switchHigh Speed PTZ, Alarm Output, color Setting, Output adjust, Logout,

view mode shift.

Picture 11 225w394h

Shortcut Menu

1.1.1Main menu

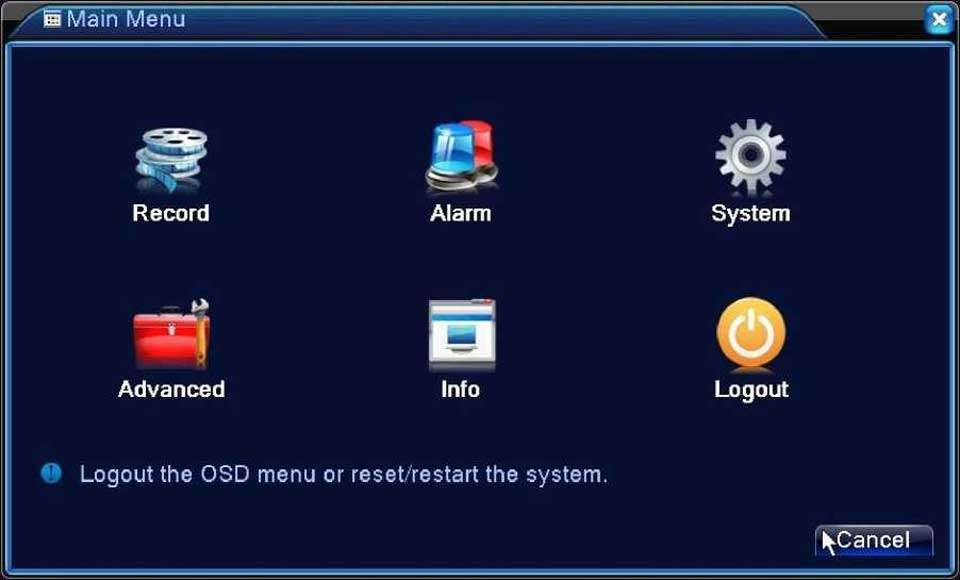

When you login, the system main menu is shown as below.

10 / 111



Picture 12 577w349h

Main Menu

1.1.2Record Control

Please check current channel status: “○” means it is not in recording status, “•” means it is in recording status.

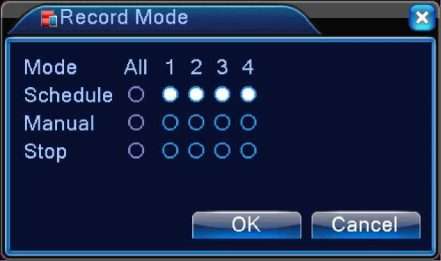

You can use desktop shortcut menu or click [system]> [record]> [record mode] to enter the recording control interface.

Picture 13 441w261h

Record Mode

ScheduleRecord according to the configuration.

ManualClick the all button and the according channel is recording no matter the channel in any state.

11 / 111



StopClick the stop button and the according channel stops recording no matter the channel in

any state.


There are two methods for you to play the video files in the hard disk.

1In the desktop shortcut menu.

2Main menu>Record->Playback

Note: The hard disk that saves the video files must be set as read-write or read-only state.

Picture 14 575w320h

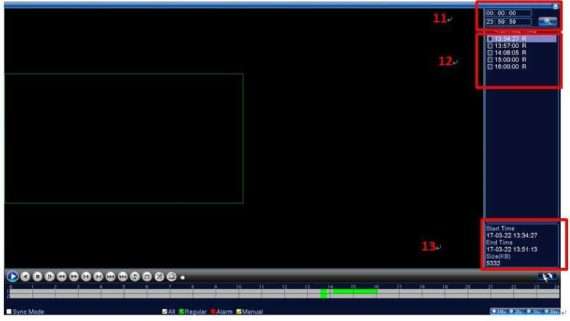

Picture 15 570w321h

12 / 111

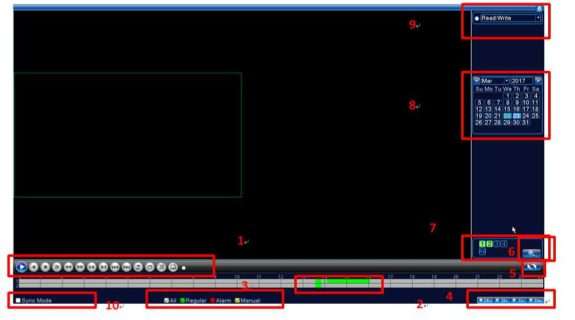

video playback

Listed filesLook up the listed files that accord with the searching criteria.

File AttributesLook up the found file information.

Playback controlSee detail in below chart

Playback control key

Note: play under frame by frame, the playback status should be paused firstly.

Special functions

Accurate playbackInput time (h/m/s) in the time column and then clicko button. The system can operate accurate playback according to the searching time.

Local zoomWhen the system is in single-window full-screen playback mode, you can drag your mouse in the screen to select a section and then left click mouse to realize local zoom. You can right click mouse to exit.

Note: When current resolution of the channel is over Max resolution, to playback this channel, will show a Red “X”.

13 / 111

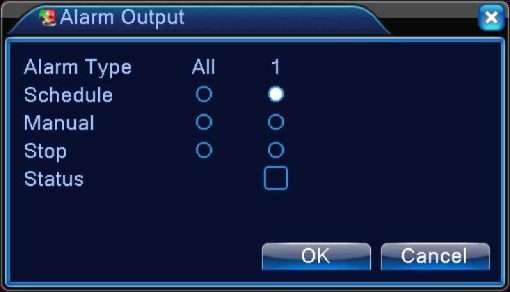

1.1.4Alarm output

Please check current channel status: “○” means it is not in alarming status, “•” means it is in alarming status.

You can use desktop shortcut menu or click [main menu]> [alarm]> [alarm output] to enter the alarm output interface.

*Some series have no alarm output

Picture 16 510w292h

Alarm output

ConfigurationAlarm is on according to the configuration.

ManualClick the all button and the according channel is alarming no matter the channel in any state.

StopClick the stop button and the according channel stops alarming no matter the channel in any state.

1.1.5PTZ control

*PTZ control is a little different between hybrid mode & full digital mode:

Digital channel – the digital channel need link PTZ, the remote device should connect with PTZ and with protocol correctly set also.

Analog channel – Only when the device is connect with PTZ and configure protocol correctly is ok.


Playback control




Video type


Time display


Switch by time/file


Search the file


Channel selection


Date selection


HDD selection




Time display


Listed files


File Attributes











S3/ S3



Backward play




Slow play


Fast Rewind

Fast Forward


Previous frame


Next frame


Previous file


Next file


Round play


Full screen

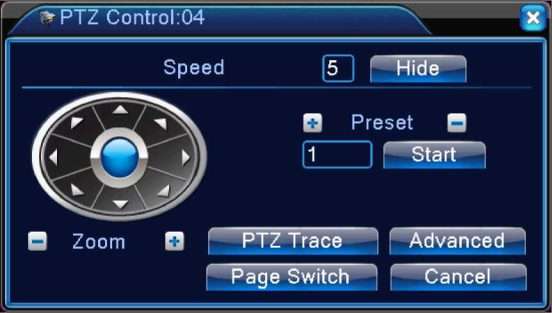

1.Operation interface is as followed. The functions include: PTZ direction control, step, zoom, focus,

14 / 111



iris, setup operation, patrol between spots, trail patrol, boundary scan, assistant switch, light switch, level rotation and so on.

Note1. Decoder A(B)line connects with DVR A(B)line. The connection is right.

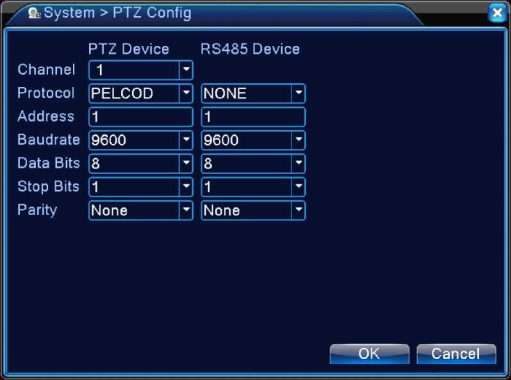

2.Click [main menu] >[system configuration] >[PTZ setup] to set the PTZ parameters.
3.The PTZ functions are decided by the PTZ protocols.

Picture 17 552w313h


SpeedSet the PTZ rotation range. Default range: 1 ~ 8.

PresetAdd, delete, call preset

Add: Input preset numbers in the preset number box,and rotate the PTZ to the designated position by controlling the direction control key and then click the “+”button to complete adding;

Preset point deletion: input the preset number which you want to delete in the preset number box ,click “-” button to complete the deletion of preset points;

Preset point call: fill in the preset point number in the preset number box ,click on the start button to call the preset point.

[Zoom]  / Q button to adjust the zoom multiple of the camera.

HideCurrent interface will be temporarily hidden after click it.

Direction control Control the PTZ rotation. 8 directions control is supportive.(4 directions in

Front panel is supportive )

High speed PTZFull-screen show channel image. Left press mouse and control PTZ to rotate

orientation. Left press mouse and then rotate the mouse to adjust the zoom multiple of the camera.

Advancedenter the advanced PTZ settings interface, you can point to the cruise cruise, patrol,

15 / 111



focus and other operations;

Page switchSwitch between different pages.

CancelExit the PTZ function

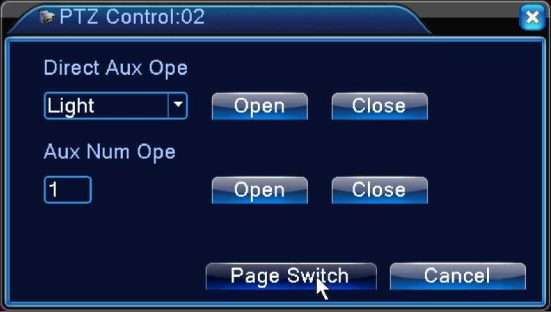

2.Click [Page Switch] button, then you can set auxiliary function. Auxiliary number corresponding to auxiliary switch on the decoder.

Picture 18 551w312h

Auxiliary Function Control

Intuitive Auxiliary Operation choose auxiliary equipment, select Open or Close button, switch control

Auxiliary Number The operation of corresponding auxiliary switch according to PTZ agreement

Page Switchclick Page Switch button to enter the PTZ Main Menu page, the menu itself can be control by the menu control buttons

16 / 111

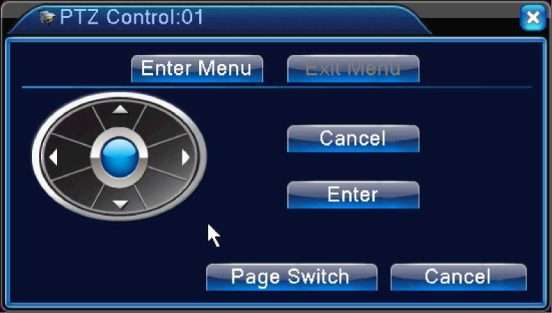

Picture 19 552w313h

PTZ menu

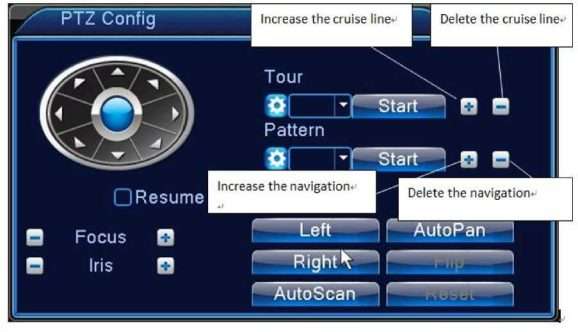

click on the[Advanced] button to enter a new operation page as shown below

Picture 20 578w332h

Advanced function

Resumeresume the PTZ to restore default.

FocusClick ”-” / “+” button to adjust the focus of the camera (require the camera support auto


IrisClick ”-” / “+” button to adjust the iris of the camera(require the camera support aperture). TourAdd a plurality of preset points to set a cruise line and call the cruise line,then the pan will run on the cruise line.

17 / 111

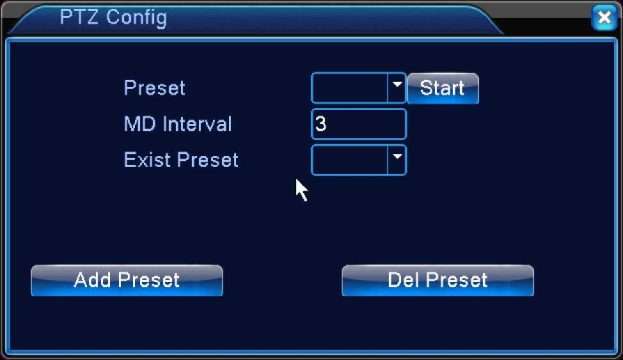

For the first time to add a cruise route, click the “+” button to enter the cruise route:

Picture 21 623w360h


In the preset drop-down box, select the preset point that needs to be added to the cruise route, set the interval time (between 3-255 seconds), and then click the “add preset” button to complete the preset point.

Click the “start” button to call the selected preset point, click “del preset “ou can delete the preset point in the cruise line; check the drop-down menu you can view the current cruise line has been added to the preset point number.

Pattern】:Control the pan movement, the back-end device will record the running track of the pan, and then call the trail, pan will be repeated in accordance with the recorded track. When you first add the trace, click on the “+” button to enter the track settings page:.

18 / 111

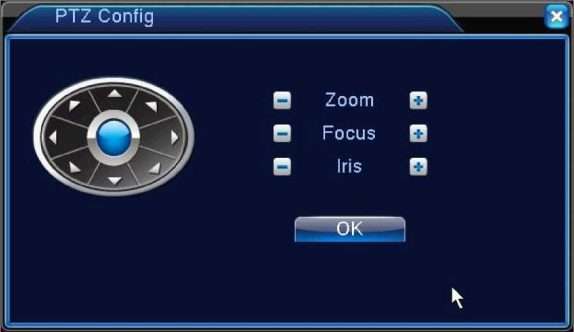

Picture 22 574w332h


You can control pan movement by the PTZ key, zoom, focus and aperture ,then click “OK” to finish AutoscanSet the two boundaries in the horizontal direction of the left and right sides and then call the scan,the pan will run between the left and right boundaries in the horizontal direction.

Click on the“left” button and then control the pan tilt using the horizontal arrow keys. when it arrive the position then click “right”button to finish the setting.Click the Autoscanbutton to call the scan,click the stop button to stop calling.

AutoPanClick on the “AutoPan” button, the pan will rotate (relative to the original position of the camera for horizontal rotation). Click the stop button to stop the AutoPan

Flipclick on the “Flip”button, the pan will start to flip.

Resetthe pan will restart,and all the data will be restored default.

1.1.6Coaxial control

The coaxial control function allows the video recorder to transmit the control signal to the front-end camera through the coaxial cable. using these control signals, the recorder can control the PTZ, menu and other functions of the front camera.

Note: it require the front-end camera also support this function

19 / 111

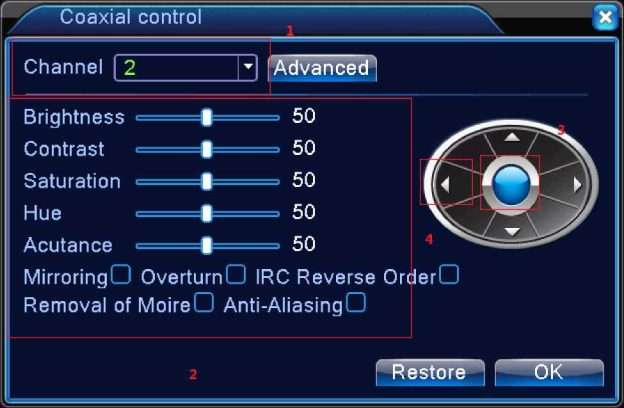

Picture 23 624w408h

Coaxial control

1 channel selectionselect the channel by clicking the drop-down menu

2 adjust the front-end camera‟s parameter adjust the parameters of the front-en camera by dragging the mouse or check the function;

3 ok enter OSD menu or ok function

4 Direction keyControl the OSD menu by four key;

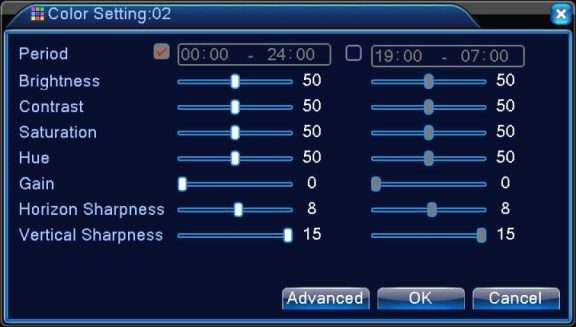

1.1.7Color setting

*Color config:analog channel can config its own color,digital channel can config front-end image(only NETIP-conformed device is supported,ONVIF-conformed device is not supported)

Set the selective image parameters (current channel for single window display and cursor place for multiwindow display). You can use the desktop shortcut menu and enter the interface. The image parameters include: tonality, brightness, contrast, saturation. You can set different parameters at different time sections.

20 / 111



Picture 24 576w327h

Color Setting

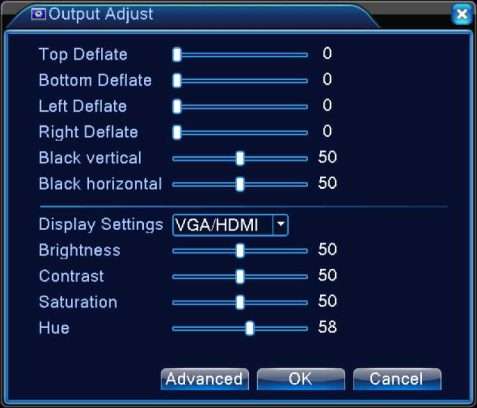

1.1.8Output Adjust

*Hybrid mode is with black margin vertical & horizontal, while full digital mode without.

Adjust TV output area parameters. You can use the desktop shortcut menu or enter [main menu]>

[management tools]> [Output adjust].

Picture 25 477w408h

21 / 111



Output Adjust

Note: The black margin vertical & horizontal at output adjust of hybrid mode is only effect to

analog channel.

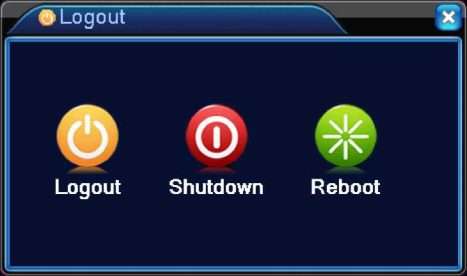

Logout, shut down the system or reboot up. You can use the desktop shortcut menu or enter [main


Picture 26 467w276h

Picture 3.17Logout/Shutdown/Reboot the system

logoutQuit the menu. Offer password next entrance.

shut downQuit the system. Turn off the power supply.

When press the shut down button, there is schedule hint. After three seconds, the system is shut down. Cancel midway is of no effect.

rebootQuit the system. Reboot up the system.

1.1.10Window switch

Preview in single window/four windows/eight windows/nine windows/sixteen windows according to your choice.

Notedifferent video input number have different switchable preview picture.

22 / 111




Only network channel has quick-set function ,you can quickly add a remote device to the network channel.

Click on the “+” sign in the preview screen, pop up the digital channel configuration wizard page, add the remote device to the DVR/NVR network channel.

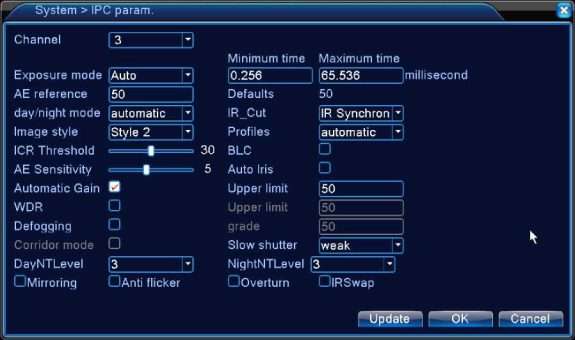

1.1.12IP parameter

This function is only available in all digital and hybrid channel modes and it is used to set the remote IPC camera parameters, the gray character indicates that the remote device does not support this function. You can adjust the various front-end parameters of the connected IPC, such as exposure mode, day / night mode, image style, day and night switching threshold, AE sensitivity, AGC, WDR, de-fog, corridor (some models support this function), slow shutter, day / night noise level, mirror, anti-flicker, flip, IR swap and so on.

Note: Only when the NVR successfully connected to the company’s IPC (using NETIP protocol) and in a single connection can support the function, if you connected to third-party IPC (usding ONVIF protocol) can‟t support this function.

Picture 27 575w340h

Exposure modeYou can set the exposure time ,choose auto or manual from 1/50 to1/1000S,the exposure time more longer, the image more brighter.

Day/Night modeYou can modify the camera Day/Night mode manually.

Autothe image can be color or B&W depending on the light;

Colorthe image will always be color;

Black and Whitethe image will always be color;

BLCcan close/open this function, when you open BLC(Black Light Compensation), In the bright background environment ,it is still able to see the central scene of the main scene.

23 / 111



Auto Iris can close/open this functionThis feature requires the camera to mount a lens that supports auto iris.

Profilesthere are three mode:AUTOIndoorOutdoor

AE Referenceset the camera‟s exposureSet the camera exposure, between 0 to 100 optional, the greater the reference value of the screen ,the more bright.

ICR Thresholdit is relate to IRCUT swap mode

IR_CUT automatically switchthe critical point for color and black/ white switching, the Day/Night conversion threshold greater ,the higher brightness from color to black.

IR_CUT IR synchronous switchDay/Night conversion threshold 10-20 close anti-shake function, 21-30 anti-shake time is 3S, 31-40 anti-shake time is 4S, 41-50 anti-shake time is 5S.

AE Sensitivity. The higher the sensitivity, the switch will be faster.

AGCcan close/open this functionwhen you open this function, it can automatically adjust the camera’s sensitivity to adjust the image brightness according to the ambient light changes

WDRcan close/open this functionwhen you open this function, it can adjust the “Upper limit”to see the main scene in the center of the screen clearly in the strong light background.

Defoggingcan close/open this functionwhen open this function, The picture permeability can be improved in fog or haze weather, the higher the lever is ,the better the defoging effect

Corridor modecan close/open this functionwhen open this function, When the corridor mode is on, the camera screen will display in corridor mode(Only some models can support this function)。

Slow Shutterthere are four choose :nonelow mediumhigh.The brightness is increased by the frame accumulation, and extend the exposure time to enhance the image sensitivity at low illumination.

IR_CUTcan be set as automatically switch or IR synchronous switch

automatically switchswap ICUT according to the actual environment ;

IR synchronous switchswap ICUT according to the IR lamp status ;

DayNTLevelWhen the light is sufficient, the level to eliminate the noise in the preview screen, the higher the level the better the noise reduction effect.

NightNTLevelWhen the light is insufficient, the level to eliminate the noise in the preview screen, the higher the level the better the noise reduction effect.

Mirror】:Enable it ,the preview screen flip 90°left and right

Flip】: Enable it ,the preview screen flip 90°up and down

Anti-flicker】: Remove the horizontal scroll stripes in the preview screen in the fluorescent environment.

IR Swap】:use when the ir_cut in reverse order.

1.1.13AHD&TVICVI Signal Switch

This function is supported by only part of the models with analog channel, it can control the signal mode

of each channel. You can right-click to enter the shortcut menu, Or you can double-click the icon 1  J
the bottom left corner of the channel, then you can switch the AHD&TVICVI Signal

you can also directly through the left mouse button double-click the channel at the bottom of the signal
switch icon to achieve the signal AHD & TVI & CVI signal switching.


24 / 111



2Main menu
2.1Main menu navigation




49 / 111



50 / 111




Operations related to record, including: Record, Playback, Backup, Screen shot(only Hybrid mode and full analog have)

Main menu

Sub menu




Set the recording configuration, recording type, recording time section


Set recording search, recording play, video file storage


Detect backup device, format device, back the selective files




Set motion detect alarm channel, sensitivity, area, linkage parameters: defending time section, alarm output, screen hint, recording, screen shot, PTZ, patrol, buzz, email PMS and FTP upload



Set camera mask alarm channel, sensitivity, linkage parameters: defending time section, alarm output, screen hint, recording, screen shot , PTZ, patrol, buzz, email PMS and FTP upload



Set video loss alarm channel, linkage parameters: defending time section, alarm output, screen hint, recording, screen shot , PTZ, patrol, buzz, email PMS and FTP upload



Set alarm input channel, equipment type, linkage parameters: defending time section, alarm output, screen hint, recording, screen shot , PTZ, patrol, buzz, email PMS and FTP upload

Notepart of models not support this function



Set alarm mode: configuration, manual, shut down

Notepart of models not support this function



No HDD, HDD error, HDD capacity not enough, network cut, IP Conflict, linkage parameters, screen hint or buzz.

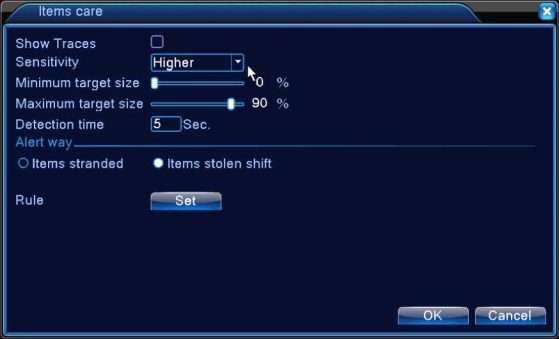

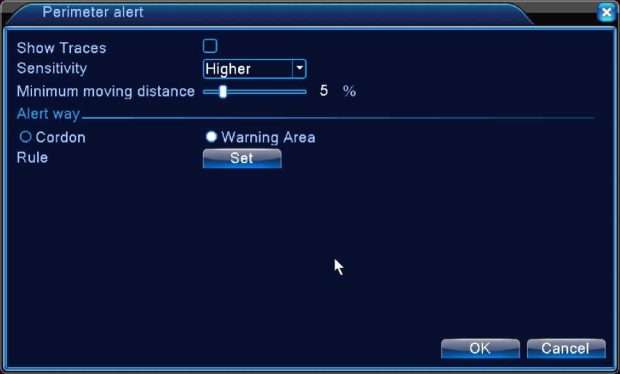

Set algorithm rule: Perimeter alert 、  Items care Video Diagnosis

setting linkage parameters :show tracessensitivityminimum moving

distancealert way

Linkage parameterperiodalarm outputthe screen promptrecord

PTZtourbuzzerEMAILFTP upload.

Note: part of models not support this function

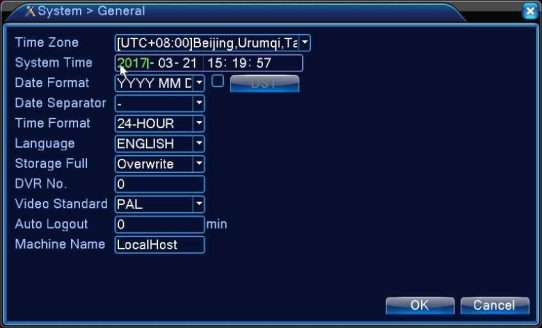

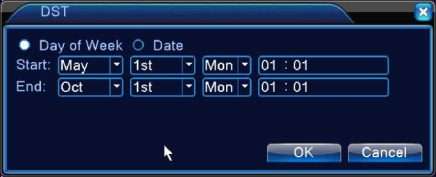

Set system time, data format, language, hard disk full time operation, machine number, video format, output mode, summertime, stay time


Set main (extra) coding parameter: code mode, resolving ability, frame rate, code stream control, image quality type, code stream value, frame between value, video/audio enable,

Note only Hybrid mode and full analog mode have encode configuration.

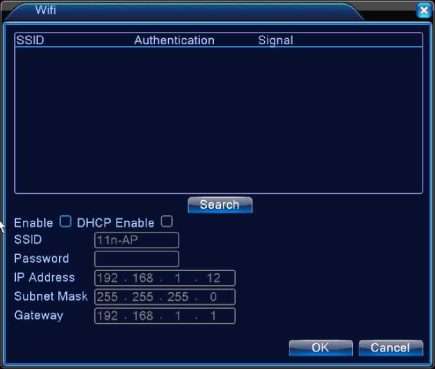

Set basic network parameters, DHCP and DNS parameters, network high speed download

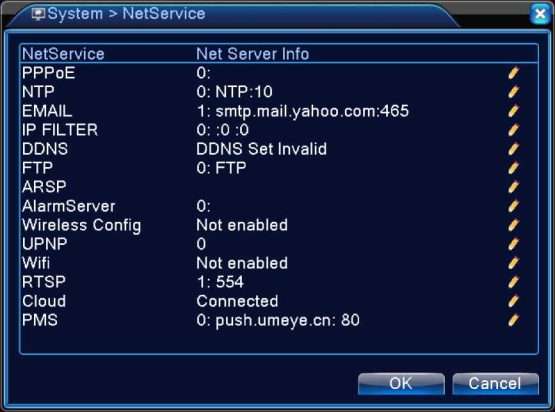

NetServic e

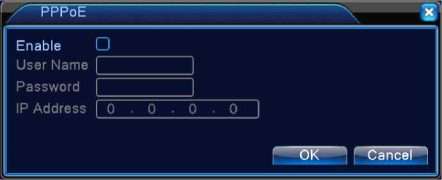

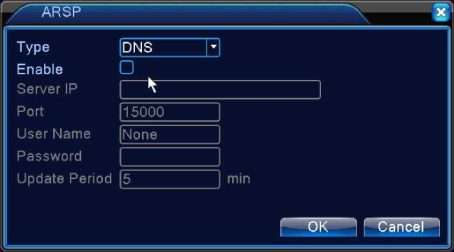

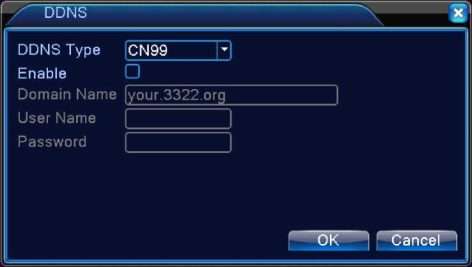

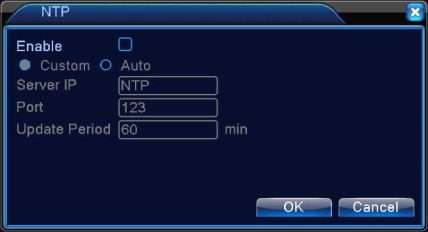

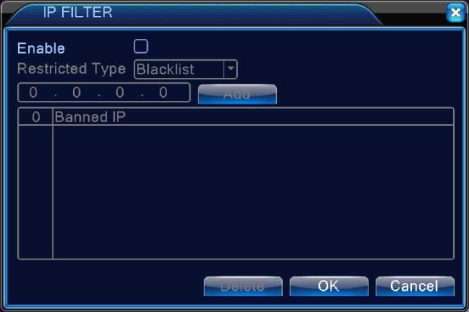

PPPOENTPEmailIP purviewDDNS parameterPMS

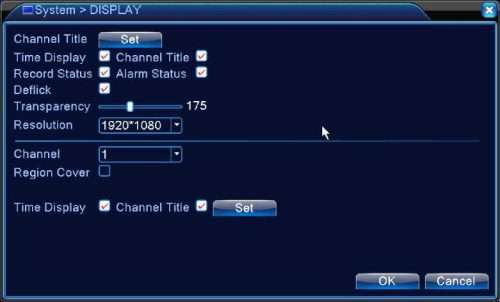

Set channel title, preview hint icon state, transparency, cover area, time title, channel title fold.

Note :  only analog channel can set channel name,region

cover ,time title,channel title fold.


configurati on

Set channel, PTZ protocol, address, baud rate, date bit, stop bit, check NoteHybrid mode shows PTZ configuration,T series have no this function.

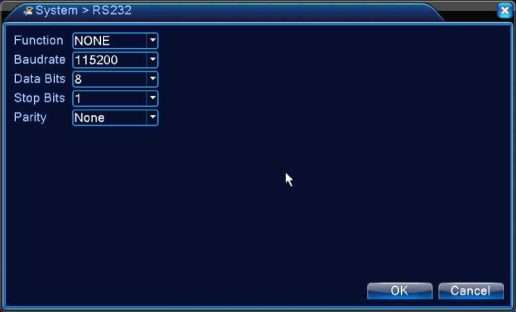

Set serial port function, baud rate, date bit, stop bit, check

NoteFull digital mode shows : RS485 Device


Set serial port function, baud rate, date bit, stop bit, check

Notepart of models not support this function


Set patrol mode and interval time

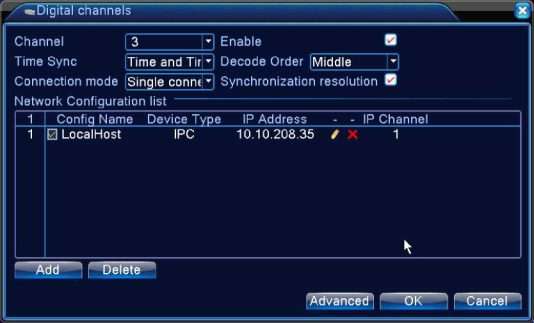

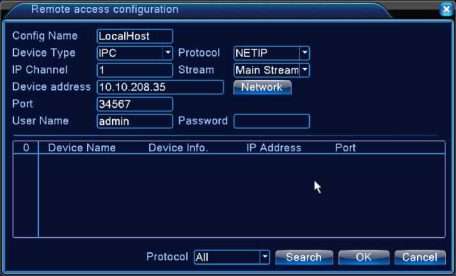

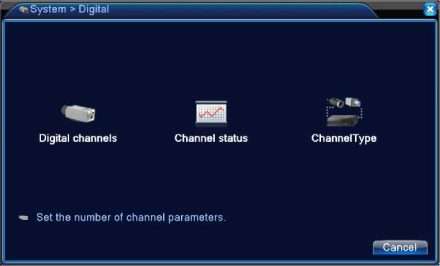

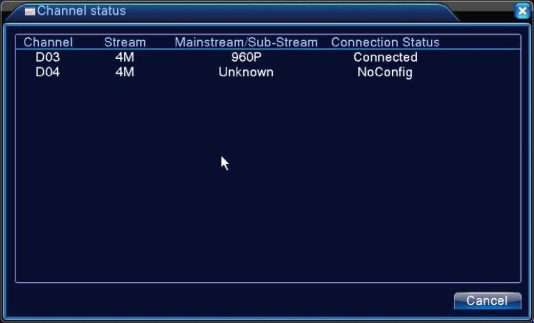

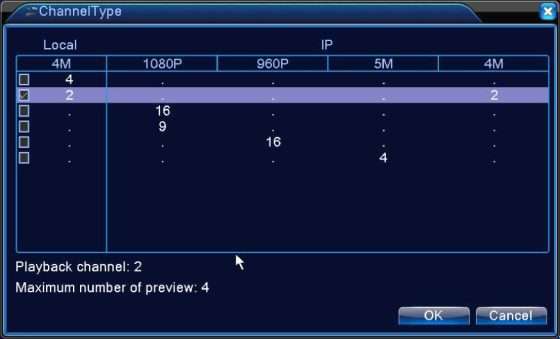

Set channel mode, check channel status and configure the digital channel, etc.

Notepart of series support this



Set the front-end IPC parameters such as exposure mode, day / night mode, profile,

Note: The front end of the ONVIF connection is not supported

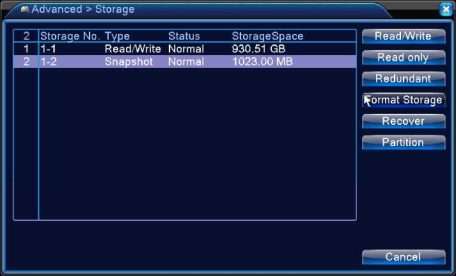

Set appointed hard disk as read-write disc, read-only disc or redundant disc, clear data, resume date and so on

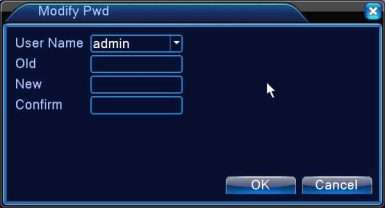

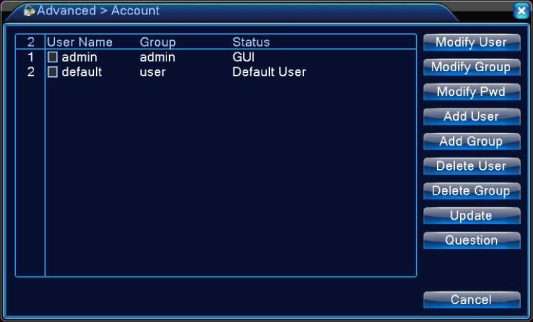

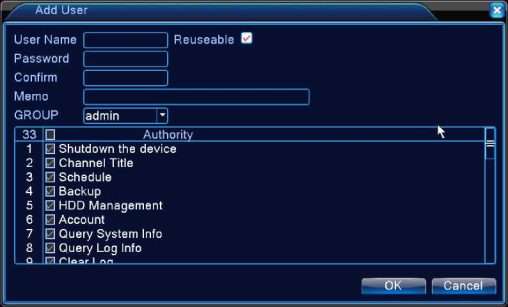

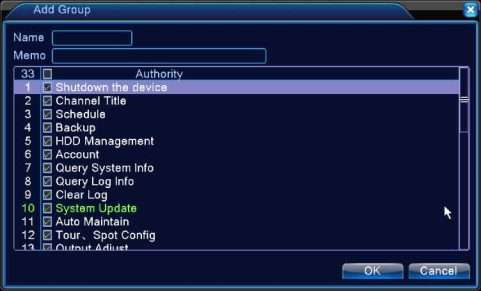

Modify user, team or password. Add user or team. Delete user or team.

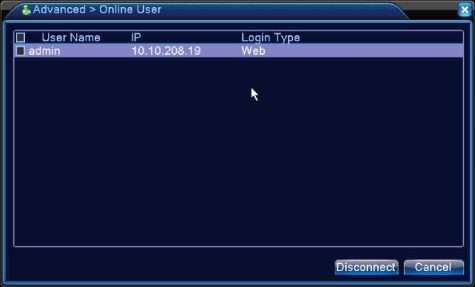

Online user

Break the connection with the already login user. Lock the account after break until booting up again.

Output adjust

Adjust upside, downside, nearside, starboard distance, black margin

vertical & horizontal

Noteonly analog channel have black margin vertical & horizontal

Automatic maintenan ce

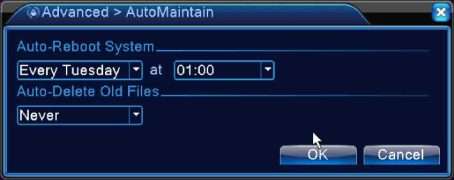

Set automatic reboot system and automatic deleting files.

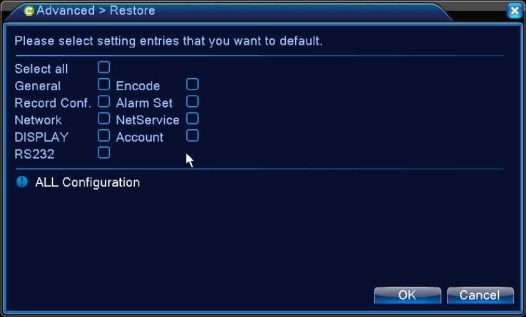

Resume setup state: common setup, code setup, recording setup, alarm setup, network setup, network service, preview playback, serial port setup, user management

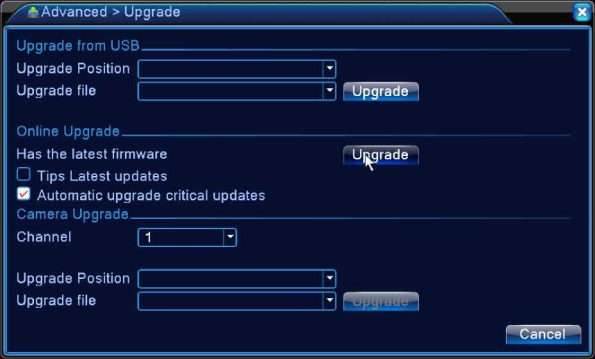

upgrade with external device(like USB)

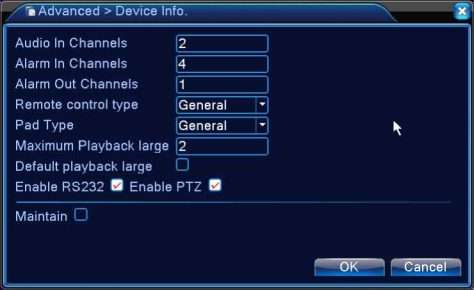

device hardware configuration and message

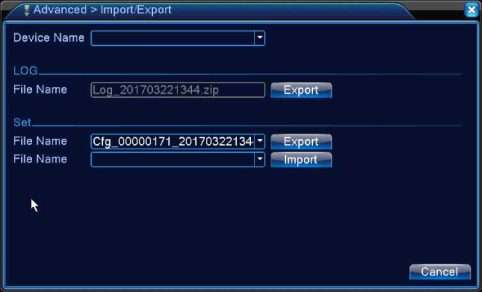

Import/Ex port

Export the device’s log or configuration to external device(like USB flash disk);Input the configuration with external device(like USB flash disk).

System information

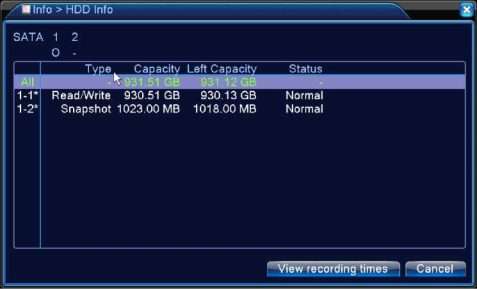

HDD info

Display hard disk capability and recording time

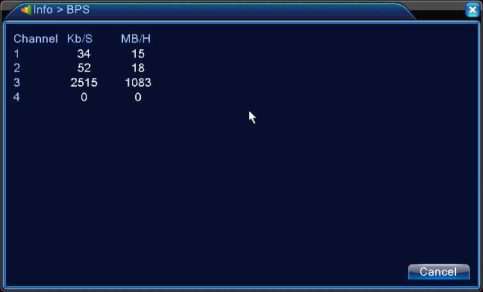

Display code stream information


Log  Clear all log information according to the log video and time

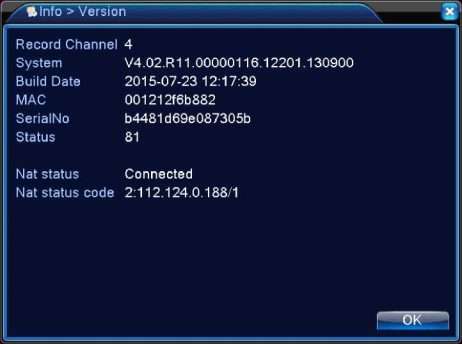

Version  Display edition information


Logout, shut down or reboot

2.2.1Record Configuration

Set the recording parameters in the surveillance channel. The system is set 24 hours consecutive recording in the first startup. You can enter [system]> [record]> [record conf.] to set.

Note:There is at least one read-write hard disk.

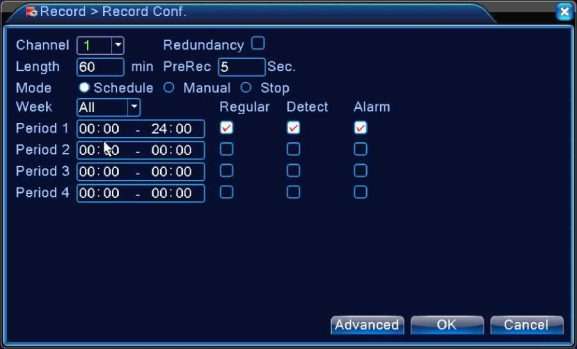

Picture 28 577w349h

Record Configuration

ChannelChoose the corresponding channel number to set the channel. Choose the all option to set the entire channels.

RedundancyChoose the redundancy function option to implement the file double backup function. Double backup is writing the video files in two hard disks. When you do the double backup, make sure that there are two hard disks installed. One is read-write disk and the other is redundant disk.

51 / 111



LengthSet the time length of each video file. 60minutes is default value.

Pre-RecordRecord 1-30 seconds before the action. (time length is decided by the code stream)

Record modeSet video state: schedule, manual or stop.

Schedule:Record according to the set video type (common, detection and alarm)and time section.

Manual:Click the button and the according channel is recording no matter the channel in any state.

Stop:Click the stop button and the according channel stops recording no matter the channel in any state.

PeriodSet the time section of common recording, The recording will start only in the set range. Record typeSet recording type: regular, detection or alarm.

Regular:Perform the regular recording in the set time section. The video file type is “R”.

Detection:Trigger the “motion detect”, “camera mask” or “video loss” signal. When above alarm is set as opening recording, the “detection recording” state is on. The video file type is “M”.

Alarm:Trigger the external alarm signal in the set time section. When above alarm is set as opening recording, the “detection recording” state is on. The video file type is “A”.


Refer to chapter 1.6.3.

3.2.3 Backup

You can backup the video files to external storage through setup.

NoteThe storage must be installed before the file backup. If the backup is terminated, the already backup can playback individually.

52 / 111

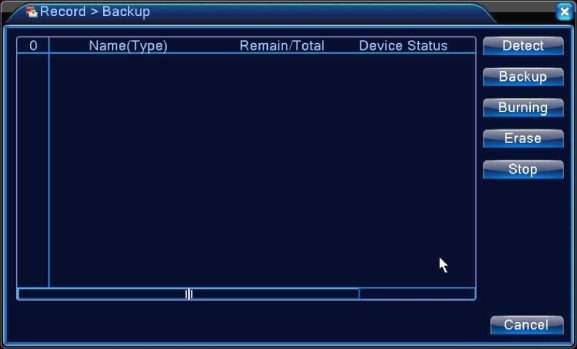

Picture 29 577w349h


DetectDetect the storage connected with the DVR such as hard disk or universal disk.

BackupClick backup button and the dialog box is popped up. You can choose the backup file according to the type, channel and time.

Burningthe file will be burned synchronously after click it.

EraseChoose the file to delete and click erasure to delete the file.

StopStop the backup.

2.3 Alarm Function

Alarm functions include: motion detect,video blind, video loss, alarm input and alarm output, abnormalityintelligent analysis.

1.1.1Motion Detect

When system detects the motion signal that reaches the set sensitivity, the motion detect alarm is on and the linkage function is turned on.

Note: “Advanced” button is the same as right click.

*Motion detect function is different between Hybrid mode & Full digital mode:

Digital channel: not only to enable motion detect function at local side, but also to enable the remote device that was connected. when remote device detect motion movement, local side will start alarm recording, otherwise this function is not enable.

53 / 111



Hybrid mode: only need to enable motion detect function at local side.

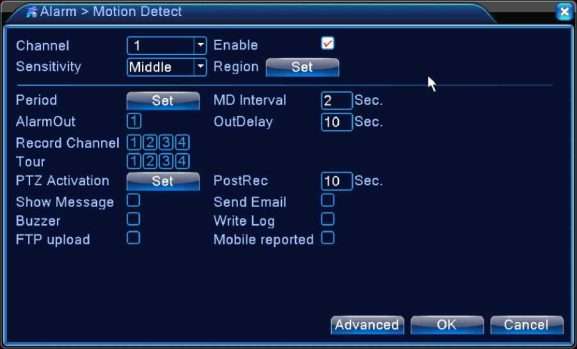

Picture 30 577w349h

Motion Detection

ChannelChoose the set motion detect channel.

Enable■ means that the motion detect function is on.

SensitivityChoose in the six options according to the

sensitivity,Lowest,Lower,Middle,High,Higher and Highest.

Note: Only the motion detect under hybrid mode/ full analog mode have this function of setting sensitivity, and also only the analog channel can set region.

RegionClick [set] to enter the set area. The area is divided into PAL22X18. Red block means the motion detect defensive area. White block means the unfenced area. You can set the area as followed, Drag the mouse and draw the area. Default: all selected blocks are detection area.

Note: Only the motion detect under hybrid mode/full analog mode have this function of setting region, and also only the analog channel can set region.

54 / 111



Picture 31 273w166h


PeriodTrigger the motion detect signal in the set time section. You can set according to week or

set uniformly. Each day is divided into four time sections.■ means the set valid.

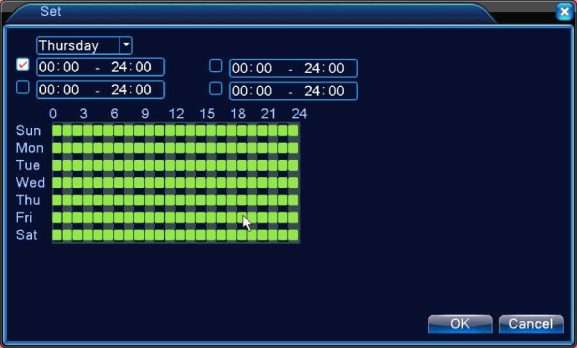

Picture 32 577w348h

set the time section

IntervalOnly one alarm signal is turned on even there are several motion detect signals in the set interval.

Alarm output Start the external equipment of corresponding linkage alarm when the motion detect alarm is turned on.

OutDelayDelay a few moments and stop when the alarm state is turned off. The range is 10~300 seconds.

Record channelChoose the recording channel (multiple option supportive). Trigger the video signal when the alarm is turned on.

Note:Set in the [recording setup] and perform the linkage recording. Start detecting video files

55 / 111



in the corresponding time section.

Tour■ means that the selective channel is single window alternate patrol preview. The interval is set in the [Main Menu]>[System] > [Tour].

PTZ ActivationSet the PTZ activation when the alarm is turned on.

*Hybrid mode, PTZ link to the related PTZ information of analog channel, While digital channel model, the PTZ is link to the related PTZ information on the remote device connected.

Noteto link PTZ, need go [Shortcut menu]->[PTZ control] to set preset point, cruise between points & interval time, etc.

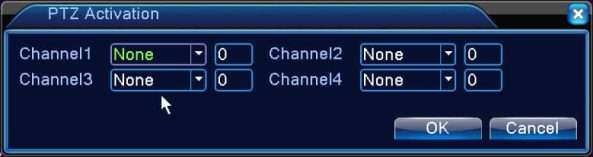

Picture 33 593w157h

PTZ Activation under hybrid mode

PostRecWhen alarm is over,recording will last some seconds(10~300sec),then stop.

Show messagePop the alarm information dialog box in the local host computer screen.

Send EMAIL■ means sending an email to user when the alarm is turned on.

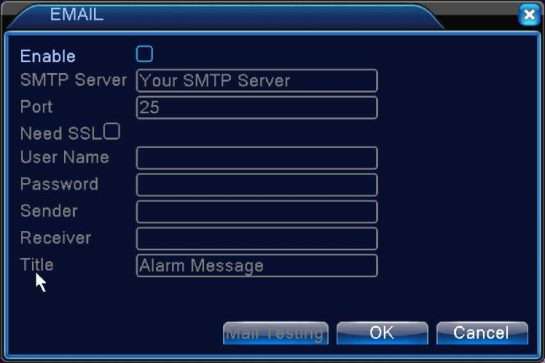

Note:Set in the [NetService] and send email.

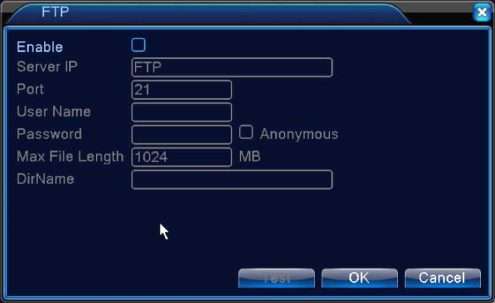

FTP uploadto tick it, the video & picture of related record channel & snapshot channel will be uploaded to assigned position.

NoteFTP upload need be set at [Netservice]

BuzzerWhen alarm happens, device will come out with buzzer.

Write Logwhen an alarm occurs, the device write a log which you can check on the [Info]>[Log].

Mobile reportedwhen alarm happens, the alarm information will be push to your mobile client.

Note: Before use this function, you need to enable the PMS or mobile report in [main menu] > [system] > [NetService]. And you should install our APP and add the DVR to the APP.

1.1.2Video Blind

When the video image is influenced by the environment such as bad brightness or reaching the set sensitivity parameter, the camera mask function is turned on and the linkage function is turned on.

56 / 111



*Same as motion detect function, video blind is different between Hybrid mode & Full digital mode:

Digital channel: not only to enable video blind function at local side, but also to enable the remote device that was connected. When remote device with video blind, local side will start alarm recording, otherwise this function is not enable.

Hybrid mode: only need to enable video loss function at local side.

Note: “Advanced” button is the same as right click.

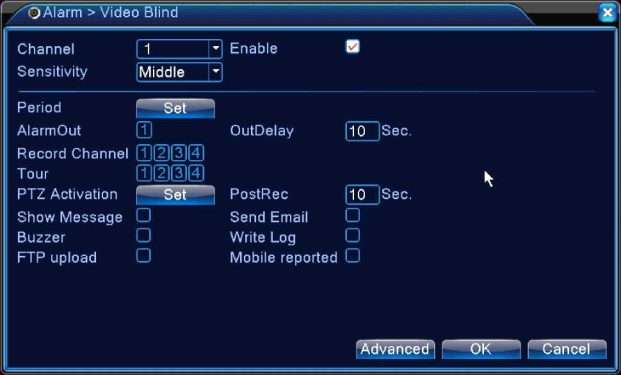

Picture 34 621w375h

Video blind

Set method: refer to chapter 4.3.1. Motion detect

1.1.3Video Loss

When the equipment can not obtain the channel video signal, the video loss alarm is turned on and

the linkage function is turned on.

*Same as motion detect function, video loss is different between Hybrid mode & Full digital mode: Digital channel: not only to enable video loss function at local side, but also to enable the remote device that was connected. when remote device with video loss, local side will start alarm recording, otherwise this function is not enable.

Hybrid mode: only need to enable video loss function at local side.

Note: “Advanced” button is the same as right click.

57 / 111

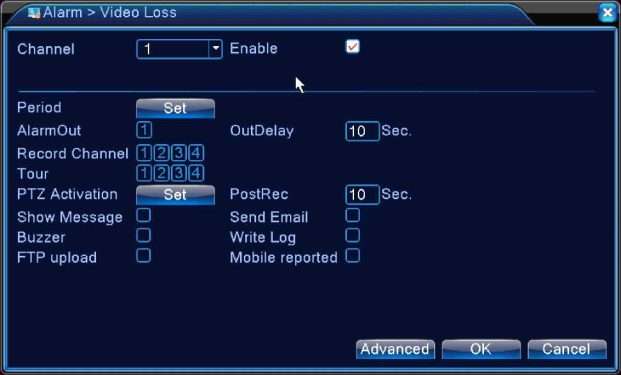

Picture 35 621w375h

Video loss

Set method: refer to chapter 4.3.1. Motion detect

1.1.4Alarm input

When the equipment obtains the external alarm signal, the alarm function is turned on.

*Alarm input is the same between hybrid mode & full digital mode, function enable, when it was set normal, only need to connect alarm sensor at alarm input port on local side, the alarm information is occurring, and will link to related setting functions at the same time

Note: “Advanced” button is the same as right click.

58 / 111

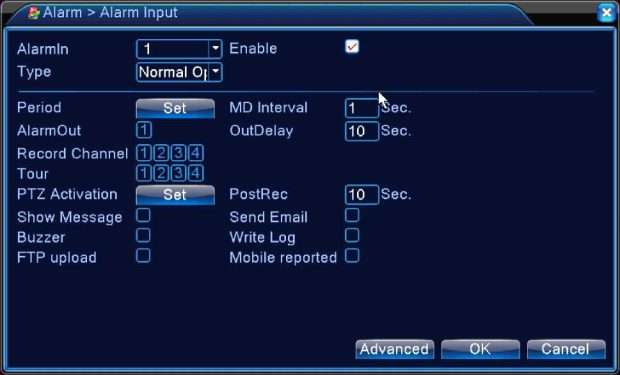

Picture 36 620w375h

Alarm input

Set method: refer to chapter 4.3.1. Motion detect

1.1.5Alarm output

Refer to chapter 2.6.4.

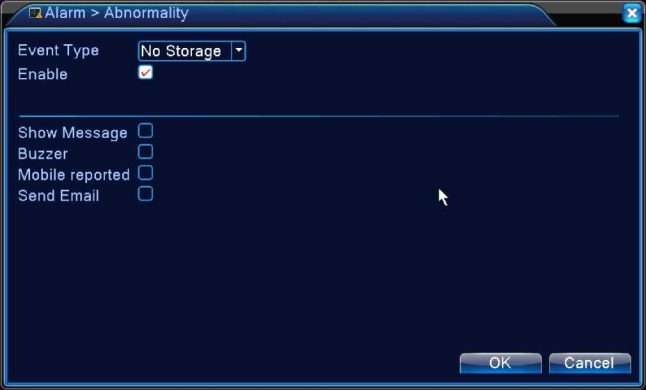

Analysing and inspecting current software and hardware of the device: When some abnormal events happen, the device will make a relative answer such as show message and buzzer.

59 / 111



Picture 37 646w390h


Event Type selecting abnormity you want to inspect. There are No Storage, Storage Error, Storage No Space, Net Disconnection and IP Conflict.

EnableSelect it to make sure abnormal function workable

Show messageAutomatically alarm cue dialog box come out of the main screen BuzzerDevice will have one long nosie “di” while alarm is happening

Mobile reportedWhen alarm happens, it will send an email to user.

Send EmailWhen alarm happens, the alarm information will be push to your mobile client.

1.1.7Intelligent analysis
>Note: only part of product support this function at present

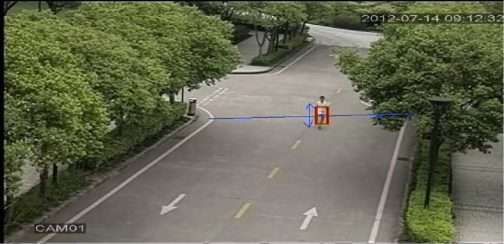

To analyze the video image, when system detect object that meet pre-set algorithm rules and fit set flexibility and minimum image distance, will trigger video analysis alarm, and enable the linkage function.

*only the 1st channel of full analog mode and hybrid mode can support this function, and if this function is enabled, then video blind is invalid.

60 / 111

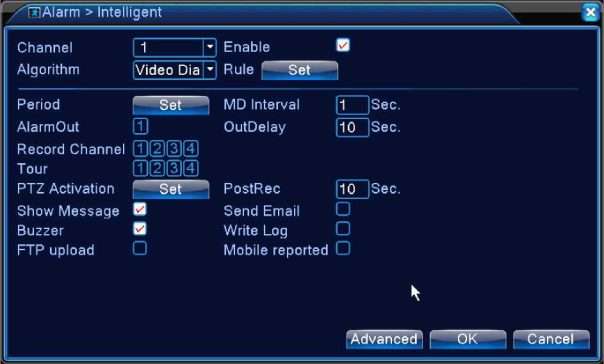

Picture 38 604w364h

Intelligent analysis setting page

Channelonly shows by “1”at present, only the 1st channel with maximum resolution of 1080P in  the

full analog(DVR) mode and hybrid(HVR) mode

Enabletick it to enable the video analysis function, then can go for further setting,

Algorithmat drop-down box, Perimeter alert, Items care and Video Diagnosis to choose the algorithm rule of detection,

Rulechoose different algorithm rules, the related setting page is different.

Perimeter alert:

>Show traces: tick it to enable,  when alarm  triggers,  there will be red box around moving objects.;
>Sensitivity , base on different  requirement, there are 3 options in the drop-down box,Higher,Middle

and Lower

>Minimum image distance range between  0~30 %,  the more flexible the less image distance.;
>Alert way there are 2 kinds:  cordon and  warning  area. Cordon: Can set 3 prohibited directions:

bidirectional prohibited, from top to bottom (from left to right), from bottom to top (from right to left), when the setting cordon is too slope, show with from left to right / from right to left, otherwise will be from top to bottom / from bottom to top, when the moving object meet preset cordon rules, the alarm will be triggered; Warning area: can set 3 kinds of prohibited directions: bidirectional prohibited, enter and leave, when the moving object meet preset warning area rules, alarm will be triggered.

61 / 111



>Rule click set, enter rule setting page, right click mouse, choose add, use mouse to fix two or more point, and then connect them to form a line or a irregular region, after that a box of prohibited direction options will come out, choose one of them, right click mouse, click Yes, return to previous

page, click Yes, alarm rules setting is finished.

Picture 39 620w374h

Rule setting – Perimeter alert

Items care:

>Show traces tick it to enable, when this function is triggered, there will be read box shows around the moving object
>Sensitivity: base on different requirement, there are 3 options in the drop-down box Higher,Middle and Lower.
>Minimum image distance: range between 0~30 %, the more flexible the less image distance.
>Alert way: three modes: Items stranded^ Items stolen^ Illegal parking.Items stranded:object appears within warning area, and the size of object meet the rules of minimum image distance, alarm will be triggered. Items stolen:object disappears within warning area, and the size of object meet the rules of minimum image distance, alarm will be triggeredIllegal parking:this way is similar with Items stranded.
>Rule: click set,enter the setting page of rule, right click mouse, choose add, use mouse to fix several

62 / 111


points and then connect them to form a irregular region, right click mouse, click Yes, return to previous page, click Yes, alarm rule setting if finished.

Picture 40 559w339h

Rule setting – items care

Video diagnosis:

>Sensitivity , base on different requirement, there are 3 options in the drop-down box Higher,Middle and Lower;
>Detection type: there are 8 kinds of detection type: Brightness anomaly detection. Sharpness detectionNoise detectionColor cast detectionScreen freezes detectionScene change detectionAnthropogenic interference and PTZ runway detection. You can choose one or more types if necessary, when video detect selected type, the alarm will be triggered. Now, only support “Scene change detection”.

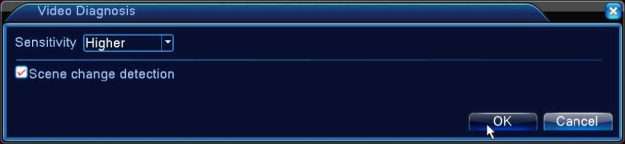

Picture 41 625w144h

Rule setting – video diagnosis

The setting way of set / withdraw garrison time period and linkage parameter, please refer to chapter“4.3.1 motion detection”

63 / 111


For exampleenable video analysis function, algorithm rules is Perimeter alert, the alert way in the rule is Cordon, prohibited direction is bidirectional, when a moving object across this warning line, alarm

is triggered, see below picture

Picture 42 504w244h

The alarm image regarding one of the video analysis

2.4 System setup

Set the system parameters such as General, Encode(under Hybrid/full analog mode)、Network, Net serviceGUI displayPTZ configure/RS485 deviceRS232Tour setupDigital and IPC param. .


Picture 43 542w328h

64 / 111



General setup

System timeSet the system data and time.

Date formatChoose the data format: YMD, MDY, DMY.

Date SeparatorChoose list separator of the data format.

Time FormatChoose time format: 24-hour or 12-hour.

Language support 29 language at

present:Arabic,Czech,English,Finnish,Greek,Indonesian,Italian,,Japanese,Portuguese,Russian,Thai,T- Chinese,S-Chinese,Turkish,Brazilian,Bulgarian,Farsi,French,German,Hebrew,Hungarian,Polish,Roman ian,Spanish,Swedish,Vietnamese

HDD fullChoose stop record: Stop recording when the hard disk is full.

Choose overwrite: Cover the earliest recording files and continue recording when the hard disk is full.

DVR No. Only when the address button in the remote controller and the corresponding DVR number is matched, the remote operation is valid.

Video StandardPAL or NTSC.

Auto LogoutSet the latency time in 0-60. 0 means no latency time.

Machine NameCan setting the device’s name.

DSTChoose the summer time option and pop the dialog box as followed.

Picture 44 436w177h

DST (week)

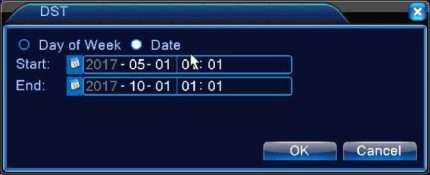

Picture 45 430w175h

65 / 111



DST (date)

1.1.2Encode setup
1.1.3de settings is for analog channel only.

Set the video/audio code parameter: video file, remote monitoring and so on. Set every main stream parameter in the left part, and set the extra stream parameter in the right part.

Note: extra stream introduces video compression technique which was applying for multi-channel playback simultaneously, Dial-up multi-channel real-time monitor under poor bandwidth, or mobile monitor

and so on.

Picture 46 582w352h

Encode setup

Independent channel code setting

ChannelChoose the channel number.

CompressionStandard H.264 main profile.

ResolutionResolution type:1080P/720P/960H/D1/ HD1/CIF / QCIF.

Frame RateP:1 frame/s~25 frame/s; N: 1 frame/s~30 frame/s

Bit Rate TypeYou can choose limited code stream or variable code stream. When you choose the variable code stream there are six image quality options. Under the limited code streamyou can choose the code stream manually

Bit RateSet the code stream value to modify the image quality. The larger code stream value the

66 / 111



better image quality.

1080P(1024~8192kbsp) 720P(1024~4096kbps) 960H(869~4096kbps) D1 ( 512~2560kbps ) HD1 (384~2048kbps) CIF(64~1024kbps), QCIF(64~512kbps)

Frame Intervalcan choose the range 2~12s

Video/Audio When the icons are all in reverse displayed, the video file is video and audio

multiplex stream.

Extra stream Settings

Extra streamis used for client side monitoring & mobile monitoring.

Channel titleselect channel title and then to choose whether need enable video & audio. The

resolution, frame rate, bit rate type settings is the same as main stream.

Coding modeThere are three codind mode: High ProfileMain Profile amd Baseline which you can choose when you click the drop-down menu.High Profile is the best, Baseline is the worst.

2.4.3 Network setup

Picture 47 603w364h


Net CardYou can choose cable network card or wireless network card.

DHCP EnableObtain IP address automatically(not suggested)

NoteDHCP server is preinstalled.

67 / 111



IP addressSet the IP address. Default:

Subnet maskSet the subnet mask code. Default:

GatewaySet the default gateway. Default:

DNS setupDomain Name Server. It translates the domain name into IP address. The IP address is offered by network provider. The address must be set and reboot then it works.

Media portDefault: 34567.

HTTP portDefault: 80.

HS DownloadIt can improve the speed of downloading video files if enable HS download.

Transfer PolicyThere are three strategies: self-adaption, image quality precedence and fluency precedence. The code stream will adjust according to the setup. Self-adaption is the tradeoff between the image quality precedence and fluency precedence. Fluency precedence and self-adaption are valid only when the assistant code stream is turned on. Otherwise image quality precedence is valid.

2.4.4 NetService

Choose the network service option and click the set button to configure the advanced network functions

or double click the service button to configure the parameters.

Picture 48 555w412h


68 / 111



PPPoE setup

Picture 49 442w180h


EnableReverse■ means choose,setting can become effective.

Input the user name and password that ISP(Internet service provider)provides. After saving it reboot up your system. Then the DVR will build a network connection based on PPPoE. The IP address will change into dynamic IP address after above operation is well done.

OperationAfter PPPoE dialing successfully look up the IP address in the [IP address] and obtain the current IP address. Then use this IP address to visit the DVR through user port.

NTP setup

Picture 50 428w232h


The NTP server must be installed in the PC.

EnableReverse■mean choosesetting can become effective.

CustomIt can adjust the time of device according to the server you connected.

Sever IP: Input the IP address installed NTP server.

Port: Default: 123. You can set the port according to NTP server.

Update Period: The same with the NTP server check interval. Default: 60minutes.

69 / 111



EMAIL setup

If the alarm is turned on or the alarm linkage photos are taken, send an email about the alarm

information and the photos to appointed address.

Picture 51 545w363h


SMTP server: Email server address. It could be an IP address or domain name. Domain name can be translated only it is the correct DNS configuration.

Port: Email server port number.

SSL: Decide whether using Secure Socket Layer protocol to login.

User Name: Apply the email server user name.

Password: Input the password corresponding to the user.

Sender: Set the email sender address.

Receiver: Send the email to appointed receivers when the alarm is turned on. You can set three receivers at most.

Title: You can set as you wish.

IP Filter setup

When choosing the white list, only the listed IP address can connect the DVR. The 64 IP addressed are supportive in the list.

70 / 111



When choosing the black list, the listed IP address can not connect the DVR. The 64 IP addressed

are supportive in the list.

You can delete the set IP address by √ in the options.

NoteWhen the same IP address is in the white and black list at the same time, the black list precedence

is higher.

Picture 52 469w312h



Picture 53 472w267h

DDNS setup

It is the abbreviation of dynamic domain name server.

Local domain nameProvide the domain name registered by DDNS.

User nameProvide the account registered by DDNS. PasswordProvide the password registered by DDNS.

71 / 111



When the DDNS is successfully configured and start, you can connect the domain name in the IE

address column to visit.

NoteThe DNS setup must be configured correctly in the network setup.

FTP setup

FTP is available only when alarm happens,or alarm activates record and snapshot,it will upload related

record and snapshot pictures to FTP server.

Picture 54 495w303h

FTP setup

EnableClick Enable, then all settings will be available

Server IPIP address for FTP server

PortDomain Port of FTP, default 21

User NameUser name of FTP

PasswordPassword of user

Anonymous】:Enable anonymous, no need setting user name and password Max File LengthMax length for upload files at every packed, default 128M Dir Name】:The directory of upload file.

Note: The user should be with authority to upload files.


Startup DDNS server to add devices and manage it in the DDNS server

72 / 111



Picture 55 454w252h


Typechoose “DNS”

[Enable]  ■ means it is chosen

Sever IP]IP address of DDNS server

PortPort No. of device, related DDNS server listen port

User namethe user name that device can log in DDNS server

Passwordthe password related to the user name.

Note: Please set up server before using DDNS.

Alarm center

When alarm occurring, report alarm information to alarm server.

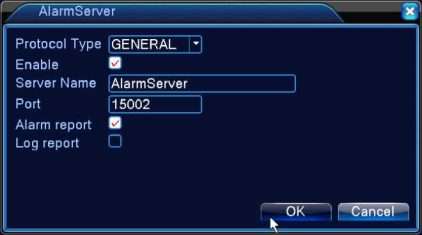

Picture 56 422w235h

Alarm server setting

Protocol typeGENERAL

EnableTo tick it means enable.

73 / 111



Server NameIP address of Alarm Server

PortDevice Port No.

Alarm ReportTick it means to report alarm information to server.

Log ReportTick it, means to report log to server.

Wireless Config

ADSL through 3G or 4G net card, use CMS to visit and config the device

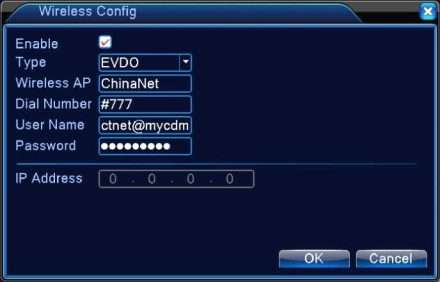

Picture 57 440w282h

Wireless Config

EnableChoose Enable to make all settings available

TypeDial type,default AUTO

Wireless AP3G access point

Dial Number3G Dial Number

User NameUser name of 3G

PasswordPassword of dial user

IP AddressIP address, got from dial


UPNP protocol is to realize auto port forwarding on router, precondition of using this function is to make sure the UPNP function of router is enabled.

74 / 111

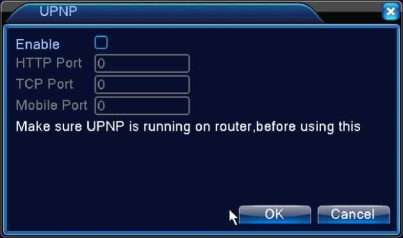

Picture 58 403w238h


EnableChoose Enable to make sure all UPNP settings available

HTTPRoute will automatically distribute HTTP port for the device,when IE viewing,it need this port

TCPRouter will automatically distribute TCP port for the device,when monitoring via CMS,it need this port.

Mobile PortRouter will automatically distribute Mobile Port for the device,when mobile monitor,it need this port.


DVR connect to wireless router via WIFI module, then to visit it through IP address, the precondition of using this function is to make sure the DVR have connected with WIFI modern.

75 / 111



Picture 59 435w369h

WIFI configure

Search】:clicksearchto search all the available wireless device in current range.

enable】:tick it to enable firstly, then go for further setting.

auto obtain IP address】:tick it to enable, device will auto obtain a WIFI IP.

SSID】:wireless LAN name, auto match to the wireless device u connected.

Password】:wireless network password of router

IP address: to set the IP address of device, default is

subnet mask:set subnet mask of device, default is

gateway】:set gateway of device, default is


To do surveillance via cross-browser (Safari, Firefox, Google chrome ) and VLC software. This function only for monitor but can not control the device.

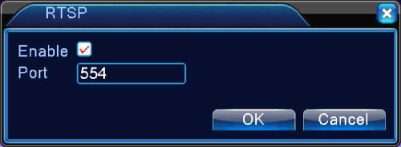

Picture 60 401w147h

RTSP setting

76 / 111



[Enable]: ■ means enable, tick it firstly before setting.

Port】:the default port is 554


Check the cloud services, male cloud service is enabled, the user can visit http://www.xmeye.net

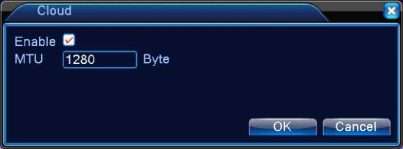

Picture 61 403w149h

Cloud setting

EnableSelect it to make sure abnormal function workable

PMS/Mobile reported

Enable this function, at the same time open the function in the mobile end, exit the application, when

the alarm occurs, check the cell phone to report, will send information to cell phones.

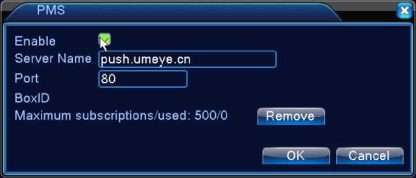

Picture 62 416w178h

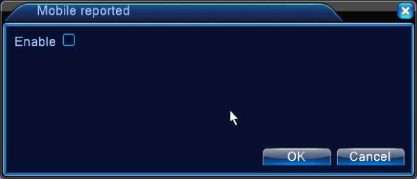

Picture 63 417w179h

Mobile reported

EnableSelect it to make sure abnormal function workable

Server Namedefaultpush.umeye.cn

77 / 111



Portthe default port is 80

2.4.5 GUI Display

Configure the video output parameters including the front output mode and encode output mode.

Front outputIn the local preview mode include: channel title, time display, channel display, record status, alarm status, transparency and region cover.

Encode outputIn the network surveillance and video file mode include: channel title, time display, channel display, record status, alarm status, transparency and region cover.

*Remark:Only 6000 series product support preview resolution – 1920*1280(1080P)

Picture 64 500w302h


Channel TitleClick the channel name modify button and enter the channel name menu. Modify the channel name. The 16 Chinese characters and 25 letters are supportive.

Time Display means the selective state. Display the system data and time in the surveillance window.

Channel display means the selective state. Display the system channel number in the surveillance window.

Record Statusmeans the selective state. Display the system recording status in the surveillance window.

Alarm Status means the selective state. Display the system alarm status in the surveillance


78 / 111



TransparencyChoose the background image transparency. The range is 128~255.

Resolutionset display resolution.

ChannelChoose the set code output channel number.

Region Covermeans the selective state. Click the cover area button and enter the corresponding channel window. You can cover the arbitrary using mouse. (Black region is for output)

Time displayand Channel displayset the display position of channel title and time title.

*the channel no., region cover, time title and channel title setting function exist at output

mode only when the device is under hybrid(HVR) mode or full analog(DVR) mode.

2.4.6 PTZ device /RS485 device

* When under hybrid mode/full digital mode, it shows with PTZ device and RS485 device;*When under full digital mode, it will show RS485 device only.

Picture 65 511w380h

PTZ config

ChannelChoose the dome camera input channel.

ProtocolChoose the corresponding dome protocol. (PELCOD as an example)

Address Set as the corresponding dome address. Default: 1.(NoteThe address must be

consistent with the dome address.)

79 / 111



Baudrate Choose the corresponding dome baud rate length. You can control the PTZ and vidicion. Default: 115200.

Data bitsInclude 5-8 options. Default: 8.

Stop bitsInclude 2 options. Default: 1.

ParityInclude odd check, even check, sign check, blank check. Default: void.

Note: The protocol, address and baudrate of the DVR must be same with the PTZ, or you can not control the PTZ.

2.4.7 RS232

*T series do NOT support this function.

Picture 66 516w312h


Serial Port FunctionCommon serial port is used to debug and update program or set up specific serial port.

Baud rateChoose the corresponding baud rate length.

Data bitsInclude 5-8 options.

Stop bitsInclude 2 options.

ParityInclude odd, even, mark, space, default is none.

80 / 111




Set the patrol display. means that the tour mode is enable. You can choose the single-view,

four-view, six-view of single mode tour or hybrid mode tour.

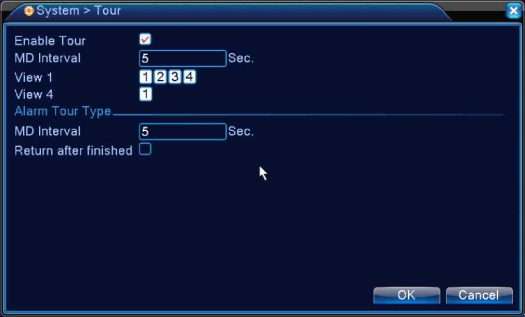

Picture 67 525w317h

Tour configure

intervalSet the patrol switch interval. The set range is 5-120 seconds.

alarm tourset the interval to shift alarm tour, range is 5-120 seconds, choose return when alarm

ends, when alarm link to tour, system will auto shift to six-view after alarm finished.

Remarkat preview mode, click upper right icon© / ®can turn on / off tour(

mean turn on,


mean turn off).

1.1.9Channel manage

Digital manage including digital channel, channel status, and channel mode (Remark: there is only analog mode if device is under full analog mode):

81 / 111

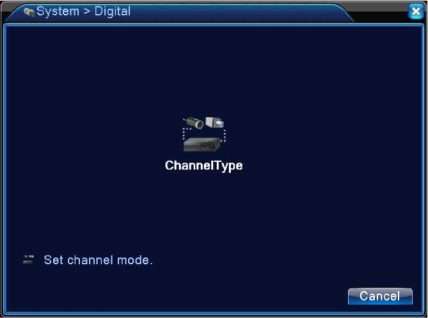

Picture 68 428w318h

Channel manage page under all analog(DVR) mode

Picture 69 440w266h

Channel manage page under Hybrid(HVR) mode / full digital(NVR) mode

Digital channel:

82 / 111



Picture 70 534w323h

Single link page of digital channel

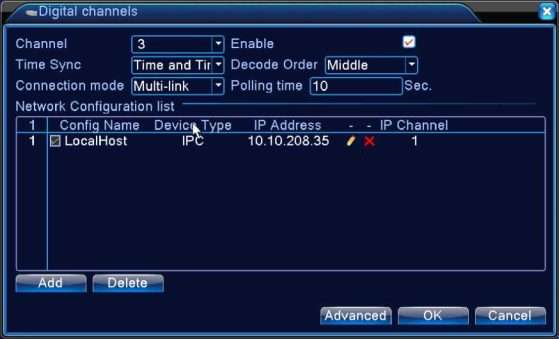

Picture 71 559w339h

Multi-linkage page of Digital channel

Channelselect channel title

EnableOpen digital channel, tick enable, then can do related settings

Time SynchronizationTick it means the time of this channel and device is the same.

Connection Modecan be singe connect or multi-ink, multi-link modes can connect to several devices, device will be tour displayed one by one, tour interval can be set, no less then 10s;

DeleteIf the user want to change device, select the existing device, click delete will be ok.

83 / 111



Addclick add will come out below page to add new device

Picture 72 456w276h

remote channel configure page

Configure Namedevice is with default configure title, user can revise it if necessary

Device Type3 types: IPCDVRHVRuser can choose as what you like, default is IPC; 【ProtocolDefault is TCP

Remote channel User can input remote channel title from the device that you want to connect remotely

StreamDefault is main stream, do not support extra-stream at present

Device addressIP address of device.

PortDefault is 34567

User nameDefault is admin

Remark: click searchwill show all the devices that searched out, user can choose any of the device that you like.

84 / 111



Picture 73 500w302h

the device list searched under remote channel setting

Channel Status:

Channel status is to show the status of all the digital channel When there is what existing, status including Max Resolution, This Resolution, Connection Status.

For example: The channel status for 2+2 mode is as below:

Picture 74 534w323h

D03 channel is connected, and D04 channel doesn‟t add the remote device.

Remark: when the current resolution is over the max resolution that the channel supported, then a red “X” will be shown on the preview image, for example: Under full digital channel mode, Max resolution of channel 3 is D1, if it was connected to a device with resolution over D1 ( such as

85 / 111



960H), you will see below pic:

Picture 75 281w159h

Channel type:

Picture 76 560w339h

Remark: this series of product with full analog channel mode, hybrid mode and full digital mode, and different model with different channel mode, user can shift the mode freely if necessary.

1.1.10IPC param.

Refer to chapter 3.6.12. IPC param.

2.5 Advanced

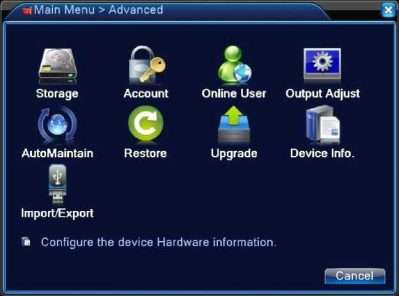

Manage tools menu including: HDD manage, account manage, online user, output adjust, auto maintain, upgrade.

86 / 111



Picture 77 399w296h


1.5.1 HDD Manage

Configure and manage the hard disk. The menu displays current hard disk information: hard disk number, input port, type, status and overall capability. The operation include: setup the write-read disk, read-only disk, redundant disk, hard disk format, resume default. Choose the hard disk and click the right function button to execute.

NoteRead/Write Disk: The equipment can write or read data.

Read-only Disk: The equipment can read data but can not write data.

Redundant Disk: Double backup the video files in the write-read disk.

Picture 78 456w276h

HDD manage

87 / 111



2.5.2 Account

Manage the user purview.

Note1. The character length is 8 bytes at most for the following user and user team name. The blank ahead or behind the character string is invalid.The middle blank in the character string is valid. Legal characters include: letter, number, underline, subtraction sign, dot.

3. There is no limit in the user and user group. You can add or delete the user group according to user definition. The factory setup include: user\admin. You can set the team as you wish. The user can appoint the purview in the group.
4. The user management include: group/ user. The group and user name can not be the same. Each

user only belongs to one group.

Picture 79 533w322h

Account management

Modify UserModify the existed user attribute.

Modify GroupModify the existed team attribute.

Modify PasswordModify the user password. You can set 1-6 bit password. The blank ahead or behind the char string is invalid. The middle blank in the char string is valid.

NoteThe user who possess the user control purview can modify his/her own or other users password

88 / 111



Picture 80 385w208h

Modify password

Add userAdd a user in the group and set the user purview. Enter the menu interface and input

the user name and password. Choose the team and choose whether cover using the user. Cover using

means that the account can be used by multiple users at the same time.

Once choose the team the user purview is the subclass of the team.

We recommend that the common user‟s purview is lower than the advanced user.

Picture 81 508w307h

Add User

Add GroupAdd a user group and set the purview. There are 33 different purviews: shut down the equipment, real time surveillance, playback, record setting, video backup and so on.

89 / 111



Picture 82 481w291h

Add group

Delete UserDelete the current user. Choose the user and click delete user button.

Delete GroupDelete the current group. Choose the group and click delete group button.

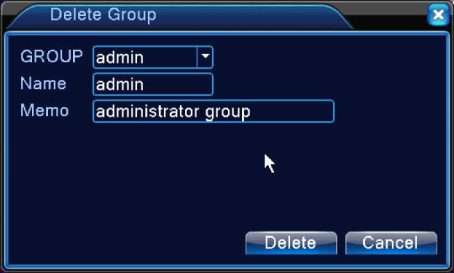

Picture 83 454w273h

Delete Group

1.1.1ety question

Set one or two different safety questions as below picture shows, and then fill in the answer and confirm answer, then click OK and cancal to exit. After that you can reset the password when you forget it through the safety question.

90 / 111



Picture 84 317w234h

Safety question

1.1.3Online user

To check the information of network user that connected with local device, also can tick the selected user to break up connection,(make √ at the box),then the user will be frozen after connection stopped,

and will not log in until device reboot.

Picture 85 475w287h

Online user

1.1.4Output adjust

Refer to chapter 2.6.8 .

1.1.5Auto Maintain

The user can set the time to auto reboot and auto delete file.

91 / 111



2.5.6 Restore

Picture 86 454w180h

Auto maintain

The system restore to the default. You can choose the items according to the menu.

Picture 87 526w317h


92 / 111




Picture 88 595w359h


Upgrade from USB: Plug the U disk, upgrade the device use the upgrade file in U disk.

Upgrade Pasitionchoose USB interface.

Upgrade filechoose the upgrade file.

Online Upgrade: When you connect your DVR to WAN, it will make comparison of the firmware version of the DVR and the firmware version of the server. It will upgrade if find the latest firmware.

Camera Upgrade: Plug the U disk, upgrade the AHD camera (some model support)/ IPC (when in IP mode or HVR mode) use the upgrade file in U sidk.

Note: Please don‟t cut off the power when upgrade, it will cause serious consequences; and please check the upgrade firmware if it is for the DVR model when upgrade failed.

1.1.8Device Info

Provide device interface info like audio in,alarm in/out to be conveniently used for user.

93 / 111



Picture 89 474w290h

Device info

1.1.9Import / Export

Users can export the log info and the configure file from device to connected flash stick, and also can import related configure file from flash stick to settings, which greatly bring convenience to the customers.

Picture 90 482w292h

Import / Export interface

2.6 Info

Display the hard disk information, including HDD info, code stream statistic, log info, version info

94 / 111



2.6.1HDD info

Display the hard disk state: hard disk type, overall capability, residual capability, the recording time and so on.

Picture 91 477w289h

HDD info

Tips:  ○ means that the hard disk is normal. X means that the hard disk is broken-down.- means that

there is no hard disk. If the user need to change the damaged hard disk, you must shut down the DVR and take up all the damaged hard disks,then install a new one.

* behind serial number means the current working disk such as 1*. If the corresponding disk is damaged, the information will show “”.


Display the code streamKb/Sand hard disk capability MB/Hin real time. It displays as the wave sketch map.

95 / 111



Picture 92 483w292h



To search log information base on the set search mode.

Log information include: system operation, configuration operation, data management, alarm affair, recording operation, user management, file management and so on. Set the time section to look up and

click the look up button. The log information will display as a list. (one page is 128 items) Press Page up

or Page down button to look up and press delete button to clear all the log information.

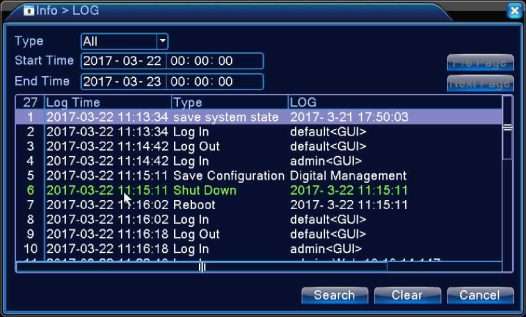

Picture 93 526w317h

Log information

96 / 111




Display the basic information such as hardware information, software version, issue date, serial number , NAT status and so on.

Picture 94 462w344h

Version information

2.6Shut down system

Refer to chapter 2.6.2.



Leave a Comment
